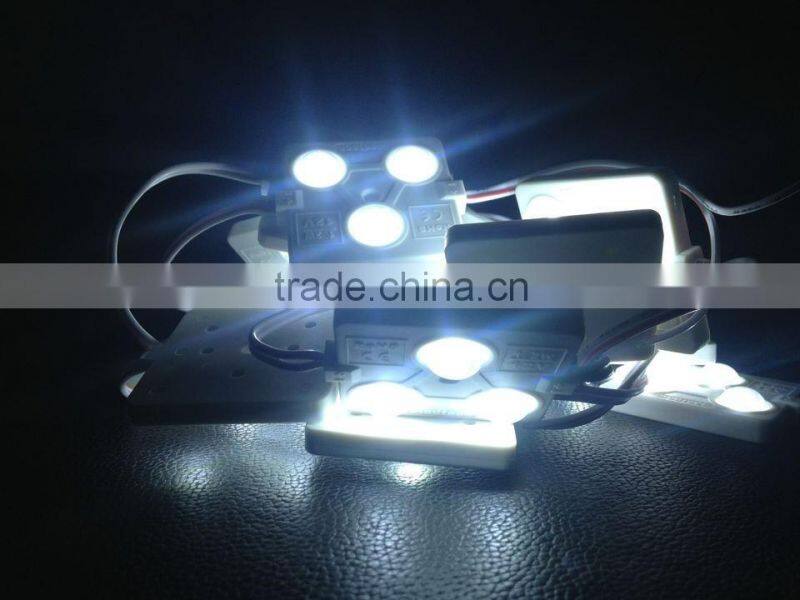

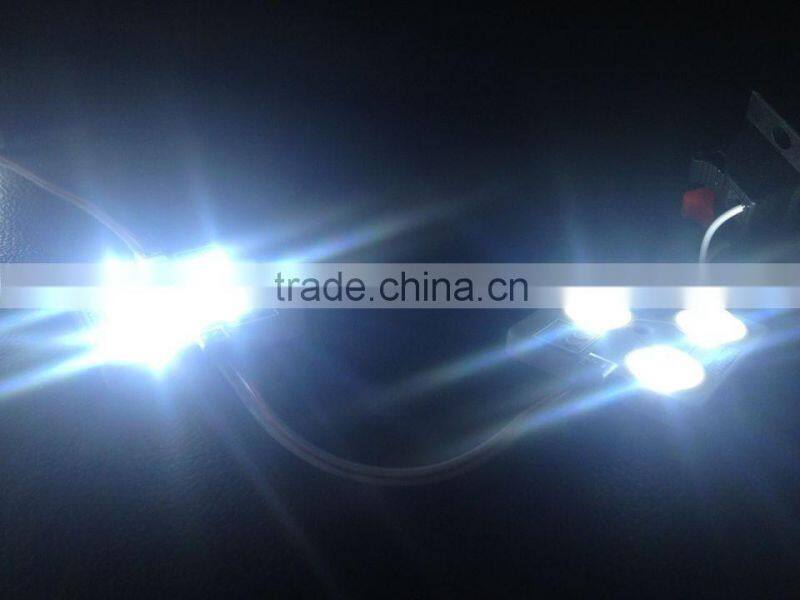

160 Beam Ip66 High Power 1.2w Led Module for Outdoor Sign and Channel Letter
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Power Direct Lighting Pixel Series Led Module for Lighting Box
-
High Power Module (CE RoHs) for Advertising Lighting Box High Power
-
CE RoHs LED Module DC5v IP65 for Advertising Lighting High Power
-
High Power Bridgelux LED Module for Light Box 1.8w DC5v
-
DC5v for Advertising Lighting High Power Bridgelux LED Module
-
High Quality High Power Advertising Lighting Source Led Module Waterproof
Product Details
| Model Number | HTD-48 | Chip Material | GaP | |
| Emitting Color | Other, white | Luminous Intensity | 16CD | |
| Luminous Flux(lm) | 120LM | Optical Attenuation(%) | 0.005 | |
| Power | Other, 2w | Power Dissipation | 2w | |
| Color Rendering Index(Ra) | 79 | Color Temperature | 2800~3200k / 5500~6500k / 7000~9500K | |
| Operating Temperature(℃) | -30, 50 | Storage Temperature(℃) | -40, 60 | |
| Place of Origin | Guangdong, China | Brand Name | HTD | |
| Certification | CE |
Product Description
High power 1.2w LED module IP66 160 beam
Product information

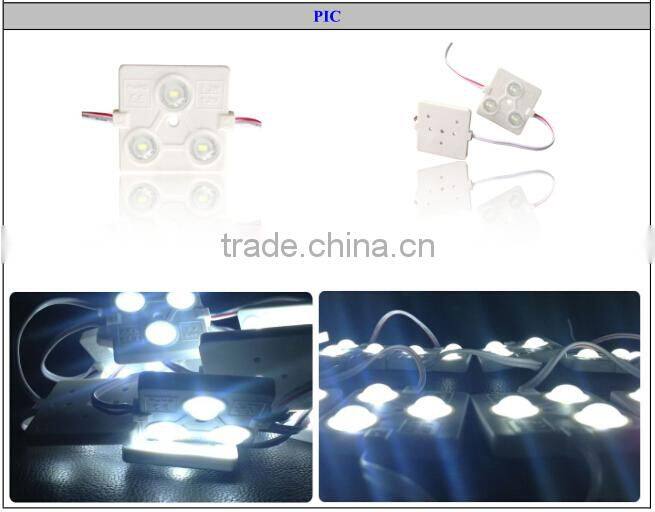

HTD-48 is by injection made from ABS shell,MCPCB and 2 spell line (high temperature resistant,cold resistant,resistant to UV),including 3PCS SAMSUNG LED5630.SMD LED light via optical Lens reach big angle 160° and even no shadow,high brightness more than 120lm/module,low thermal resistance,low light failure,can work well under the harsh environment.HTD-48 mainly used in architectural decoration,lighting,light box and signal for marking backlight.
Warranty is 5 years.

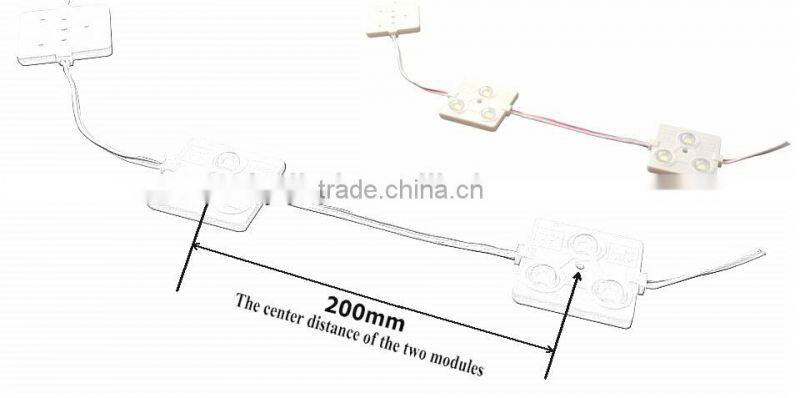

HTD-48 the most can tandem connection 20pcs modules,Prohibited beyond tandem connection.The thickness of power should according to actual possible present maximum current, the power of products,wiring length (suggest not exceeding 6M) and low voltage transmission line voltage drop.In measuring power use number of circumstances,should retain 20% of the allowance.
Features:
·Big beam angle
160 degree beam angle
·High Brightness
·Excellent Design
Graceful appearance. All Electronic components fully covered by high
transparency PC are protected against terrible outdoor environments
·Uniform Color
bright, vivid and uniform color. Tolerance:
·Extended Life 50,000 hours span life.
·Friendly environment

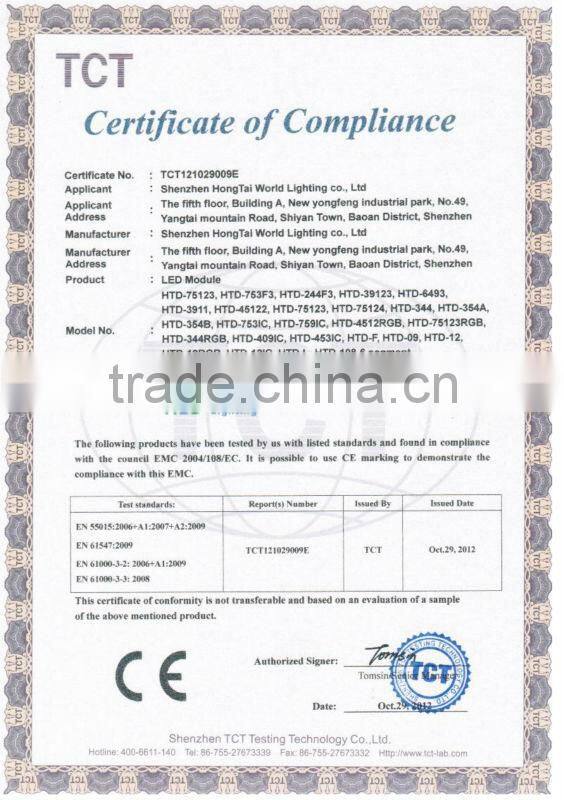

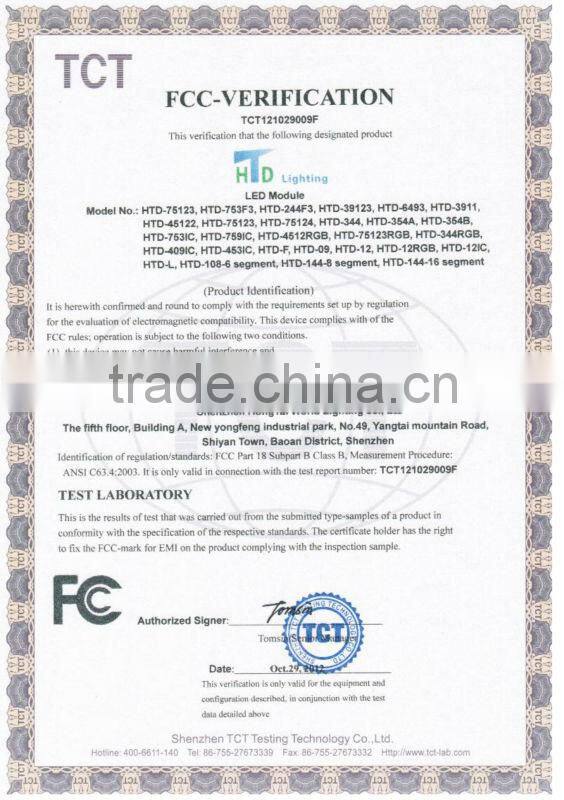

Pb free. With CE/RoHS certificate,
·Safe Application
Low voltage DC5V, safety and stable. Free maintenance

Description
1.Super bright SMD top LED & Wide viewing angle,high brightness output,no spot and shadow
2.Colors can be choosen as Red,Green,Blue,Yellow, White or Warm white.
3.Low power consumption & operating voltage,safe and energy-saving
4.Solid-state,high shock or vibration resistant,long lifetime,more than 50000 hours.
Applications
1.Channel Letters Back lighting
2.Advertisement broad Back lighting
3.Advertisement signs Back lighting
4. Advertisement Light Boxes Back lighting etc
Notice
1.Caustic or dissolvent chemicals may damage the protection crust.
2.Normal working temperature : -30-50°C
3.Storage temperature is -40-60°C
Why purchase from HTD Lighting??
Answer:Original technology with Control system,Our Module are 1 years warranty(SMD5050 2 years warranty) . With low current, LED modules:adopt superior Epistar led chips and Taiwan led chips encapsulation technology;the silica gel covered is Dow Corning Brand from USA;the water proof material is silicone rubber modified epoxy resin which has good heat stability, and bears the weathering and impact toughness better;choose better solder, and automatic placement machine, reflow soldering equipment.The body material is superior PVC;the wire material is silica gel.Modules connect between with tin copper wire, effectively preventing oxidation.The PCB is FR4 glass fiber board. LED Transformer:adpot Nichicon brand electrolytic capacitor from Japan. Life span is up to 50000 hours. ensure high brightness and long lifespan. A full set of document <Quality Wanrranty>, access customers and was unanimously praised!
ABOUT US
Shenzhen HongTai World Lighting Co., Ltd specializes in R&D of LED application product, production and sale series of products, including advertising source, the landscape lighting and the commercial lighing,etc; is a modern enterprise who can complete landscape lighting, lighting projects, 3D plane effect and animation design and electrical wiring and construction evaluation independently.
We have advanced equipment, humanizes management, a strong R&D team to creative design, the unique production technology, timely and fast product producing and supply chain. in the industry combined with experience and national sales channel since several years, our products exported to all over the world, winning praise and trust from the customers.
Our LED Module products are with high performances and duration of life ; in most cases, we use aluminium PCB and ABS moulding and PVC.
Our service
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models
After Service
Warranty:1 year (SMD5050 2 years warranty)
MOQ:LED Module 20 Pieces
Shipping freight are quoted under your requests
Shipping port: Shenzhen, Mainland China
Payment Term : L/C,D/A,T/T,Western Union,MoneyGram,...
Delivery: 5~10 days after order confirmed(according to actual order quantity)
Shipment Terms:EX-work,UPS,DHL,TNT others express door to door service

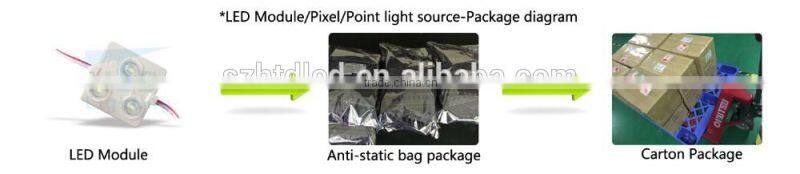

Packing
Pament terms
Shipping Ways:
We focus on customer satisfaction and we will providing the best service.
A: Your inquiry will be replied within 2hours.
B:Well-tained and experienced staffs to answer all your doubt by fluent English.
C:We share the latest information of led lighting in Chinese market.
D:We can support varied led lighting source and other led product.
After sales:
1: we offer long warranty(1-3 years)
2:Always customer first, any issue , please feel free to ask, we will reply within 24 hours
We control supply market and support to you enlarge your market.
Welcome to start business with us!
