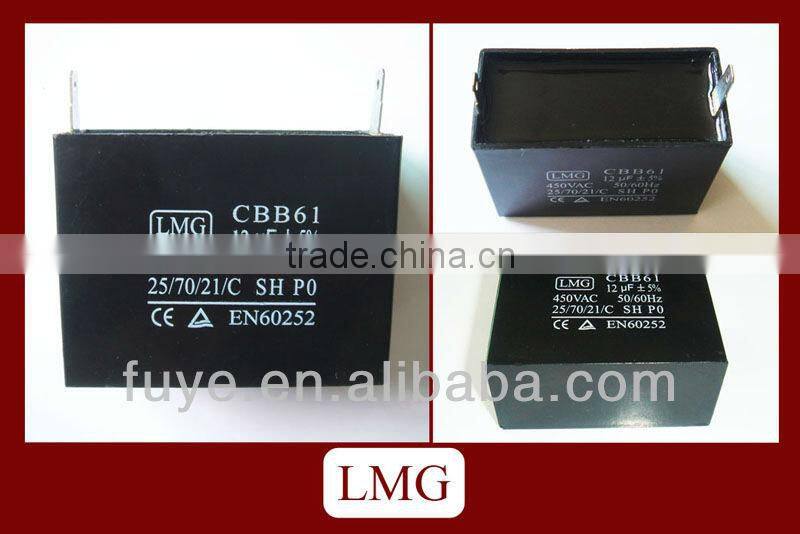

Capacitors 1uf 400v
- ningbo/shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | FUYE LMG | |
| Model Number | LMG-55 | Type | Polypropylene Film Capacitor | |
| Application | AC / Motor | Package Type | Through Hole | |
| Capacitance | 0.5~40μf | Rated Voltage | 250~450VAC | |
| Operating Temperature | 40/70/21 , 25/85/21 |
Product Description
Specifications
capacitors 1uf 400v1.CE,CQC,UL,TUV certificate
2.different lead-out and shell
3.good self-healing
4.deliver on time
capacitors 1uf 400v
| Technique Data | |
| Climate Type: | 40/70/21; 25/85/21 |
| Rated Voltage: | 250-450VAC |
| Rated Frequence: | 50~60HZ |
Rated Capacitance: | 250VAC:0.5-40μf |
| 450VAC:0.5-30μf | |
| Torelance: | ±5%, ±10% |
| Loss Factor (tgδ): | ≤0.1%(100Hz) |
| Over Voltage Test (T-C): | 2500VAC, 10S no breakdown |
| Over Voltage Test (T-T): | 2.0Un, 10s no breakdown |
| Safety Class: | P0. |
| Packing Details: | Standard packing cartons; 100 or 500 pcs per carton. |
Features and use:
All of its performance indexes reach the requirements of IEC252 criterion. With its good self-healing characteristic, long life-span and high proportionality, it is widely used as the start-up and running capacitor that is special for electric appliances such as electric fanners, ventilators and exhaust fanners.
