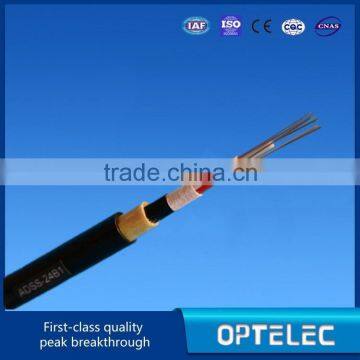

24core Single Mode Optical Fiber Cable ADSS 100m Span / Power Optical Cable

24core single mode optical fiber Cable ADSS 100m span / Power Optical Cable

product specifications:

1-Fiber core: 12~144fibers

2-Low attenuation coefficient and chromatic dispersion, insure cable's optics transmission charateristics

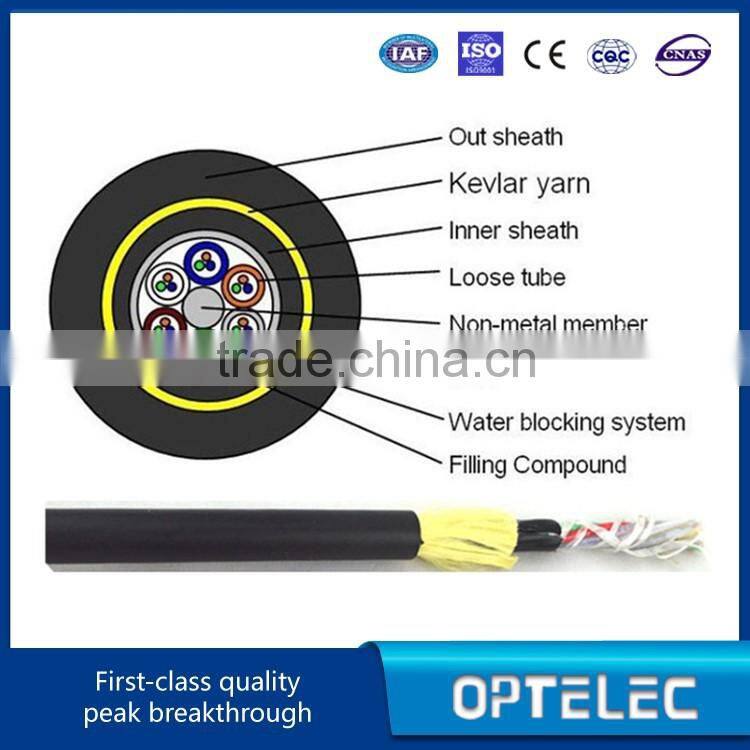

3- Proper design, precise fiber excess length control and distinct stranding process render the cable excellent mechanical and environmental characteristics

4- Anti-electromagnetism ability

5- Use high intensity aramid yarn as anti-pulling component, strong, light and small cable diameter, suitable for different climatic situation and installation span.

ADSS applications:

Environment with high electric field strength in the power transmission system and area where frequent thunder happens.

ADSS standard compliance

IEEE P1222, ITU-T G.652, ITU-T G.655, IEC60794-1, DL/T 788-2001, YD/T 980-2002

ADSS technical parameter:

According fiber cores, weather condition, installation span, line voltage and etc.

ADSS Mechical characteristics:

Cable diameter: 12.6mm

Weight (kg/km): 134kg/km

Rated tensile strength: 18kn

Max. allowable stress: 7.5kn

Everyday stress (EDS):4.6kn

Ultimate operation stress:11kn

Min. bending radius: static:

 dynamic: 20D

if you are interested in cable we supply ,please feel free to get in touch with us asap.
