Home > Products > New Products > Chinese Top Quality Mini Flour Mill
Chinese Top Quality Mini Flour Mill
- qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Hunan, China | |
| Brand Name | zzy | Model Number | 10 | |
| Production Capacity | 5-300tpd | Voltage | 220v | |
| Power(W) | 380w | Weight | 10t | |
| Dimension(L*W*H) | 10*10*10 | Certification | SGS | |
| Warranty | 2years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

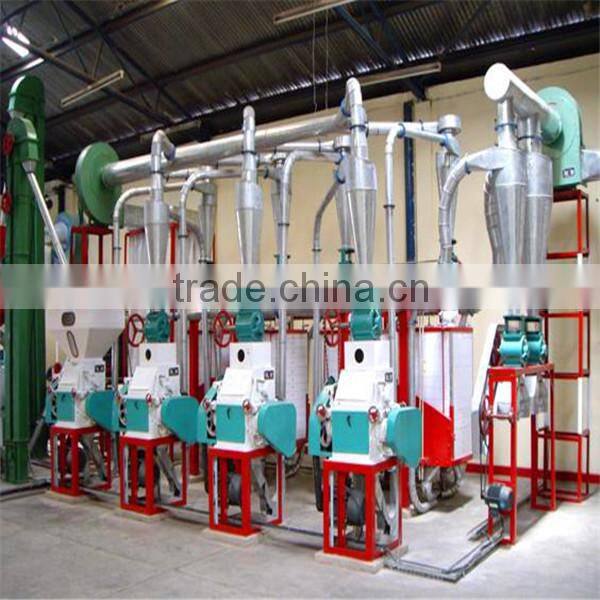

Mini flour mill
Wheat flour mill process :
Cleaning part:
Beat: to remove dust sand small seed, bacterial count and insect seed.
Screening: to remove large and small impurities in the wheat seed.
Destoner: to remove stone in the wheat.
Magnetic separator: to remove metal material in the wheat
Dampening: to ensure the bran’s integrity during the milling processing
Wheat flour mill part:
Mill: to break the integrity by the roller moving
Sifter: to separate the flour and bran, also separate large size and small size to
enssure flour quality.
Packing part:
The packing part can be manual one also can be auto one.
The process of Wheat flour milling (from wheat to milled into wheat flour) usually consist of the following:
1. wheat storage (silos, or warehouse) ---------- 2. cleaning system (sifter, destoner, separator, magnet, scourer, etc) ----------- 3. dampening (dampener, conditioning silos, etc) ---------- 4. milling system (roller mill, plansifter, purifier, impact detacher, etc.) ---------- 5. Flour pressure and blending system (if need) ---------- 6. flour packing and stacking.

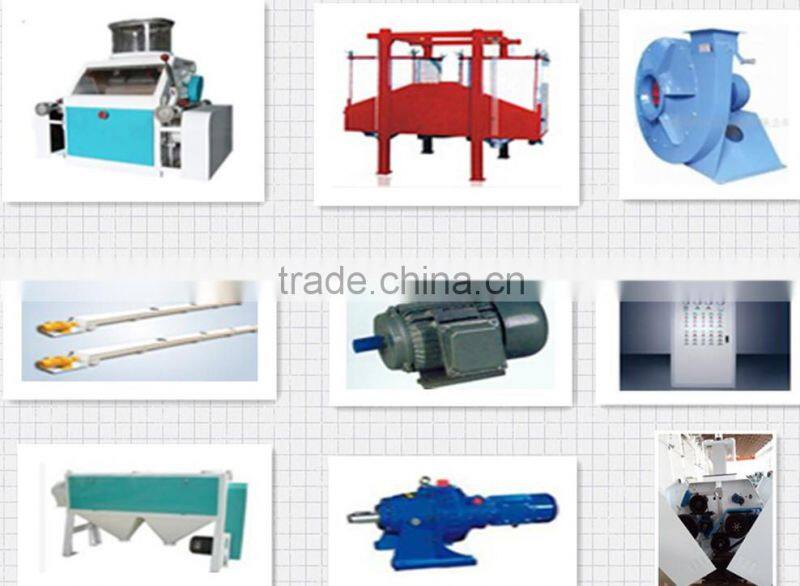

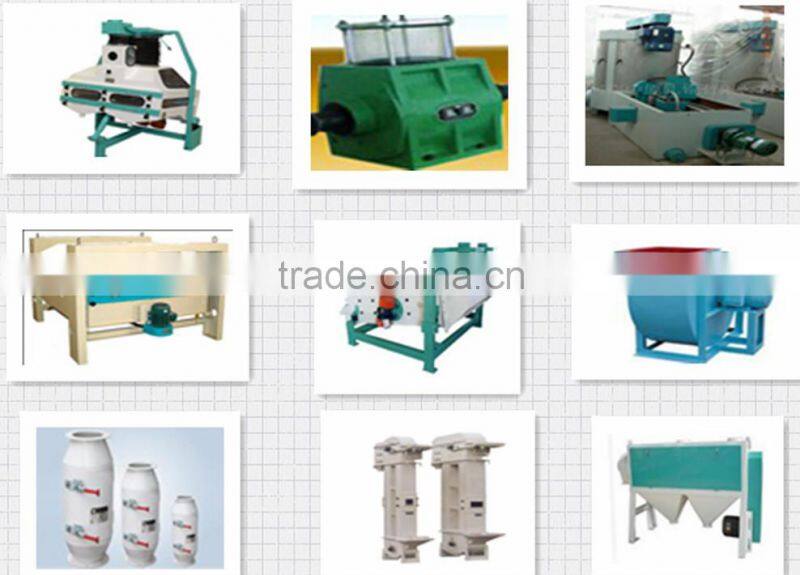

Main equipment of flour mill plant cleaning system:
Main equipment of flour mill plant milling system:

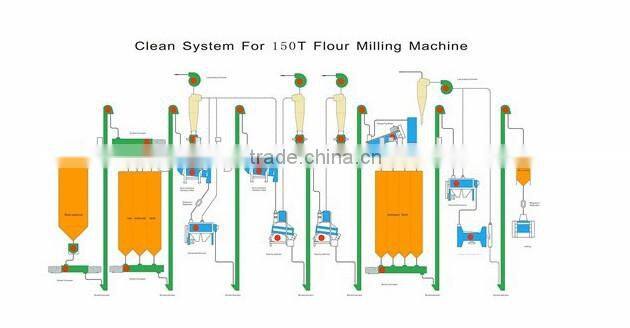

Technical parameters for cleaning system:
three sieves, two beating, two removing stone, One washing and three
magnetic selecting.
Technical parameters for milling system:
eight milling, two six-bin square sifter, one purifier and two bran
finishers making up "4B,7M,1S,2T" process .
Requirements of finished product:(refrence 60 tpd flour mill plant)
F1 flour | F1 flour extraction rate 30-45%,percent of dust is less than 55%-0.7% |
F2 flour | F2 flour per unit area yield second-class flour yield 70-75%, proportion of dust is less than 0.7%-0.80%. |
Standard four | per unit area yield standard flour yield 75%, proportion of dust is less than 0.8%. |

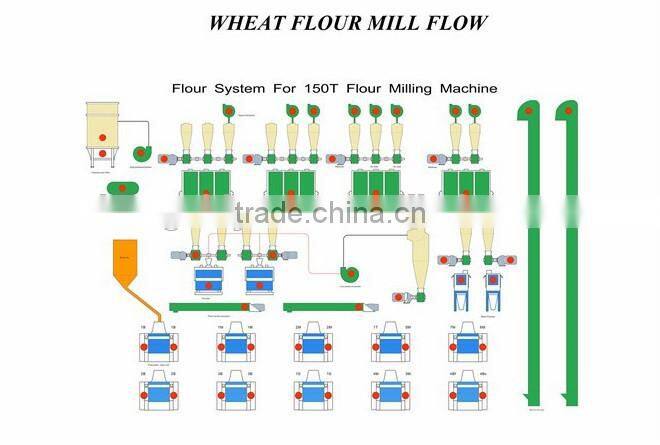

Processing Drawing:

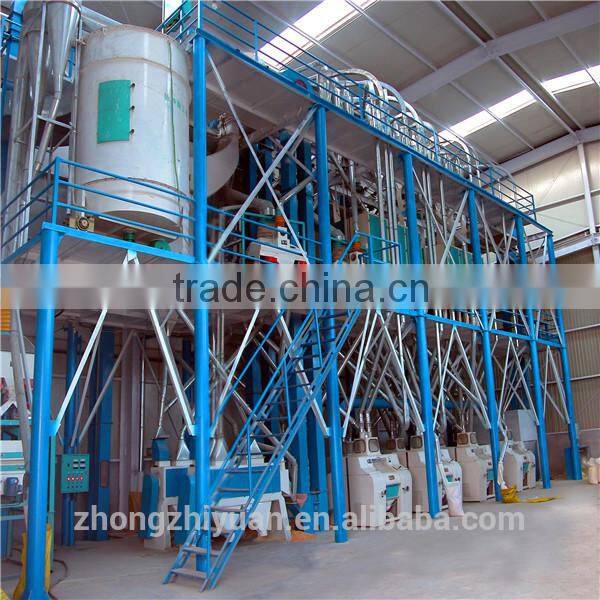

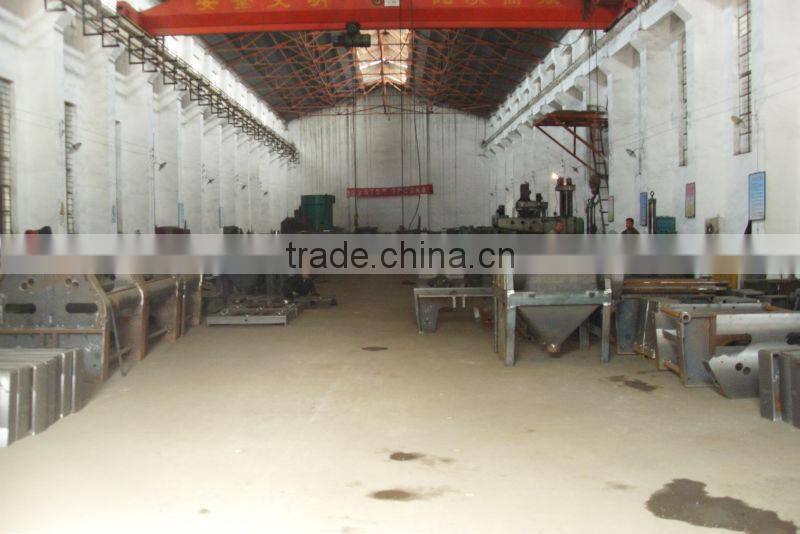

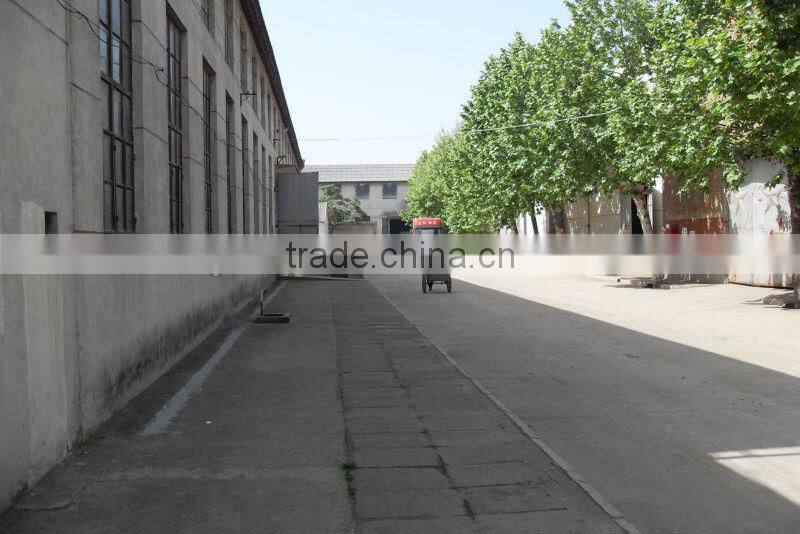

Our factory:
Certification:
Packaging and shipping
Our Service and Payment Terms:
1. We usually accept T/T, L/C;
2. T/T: 30% in advance as down payment, the balance before delivery;
3. We take pictures of finished products before delivery.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival
Our service
Full and perfect service
♥.Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
♥.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
♥.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
This is my contact information :
Zhongzhiyuan grain and oil machinery Co.,Ltd of luohe.
Skype: lei ling521
what's up account: 0086-13193922520
Welcome to contact me !
Contact Us
- Luohe Zhongzhiyuan Grain And Oil Machinery Co., Ltd.
- Contact nameCoco Lei Chat Now
- Phone0086-395-6935777
- AddressZhongyuan Road, Luohe, Henan
