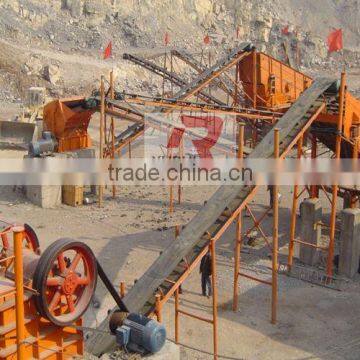

Stone Production Line
Stone production line, also called sand-stone production line, is specially used for the production of sand and stones which are used in building, road, railway and other industries. Stone equipments include: jaw crusher, stone crusher, counterattack crusher, impact crusher, vibrating feeder, vibrating screen, sand washer, belt conveyor, etc. Our company's equipments have the characteristics of reliable performance, reasonable design, easy operation, high efficiency, etc.

Composition of Stone Production Line

Stone production line is mainly composed of vibrating feeder, jaw crusher, counterattack crusher, circular vibrating screen, belt conveyor (tape conveyor) and other equipments. The designed output is generally 50-500 tons/hour. Cone crusher, dust collector and other facilities can be equipped to satisfy various processing demands of the customers. The production line can be used for artificial sand-making operations and aggregate processing of various materials such as: limestone, granite, basalt, river pebble, metallurgical slag, etc. It is suitable for the industrial applications such as water and electricity, building materials, highway, city construction and so on. Combine various models of equipments according to different technological requirements to meet customers' demands.

Advantages of stone production line

The production line has high automation degree, high reduction ratio, high production efficiency, and large handling capacity. The products after crushing are with the cubic shape, low content of elongated and flaky particles, no inner crack and excellent compression resistance. The equipment maintenance of the production line is simple. Vulnerable parts adopt the currently latest high-strength and wear-resisting domestic materials, so the low loss and long life-span can enable them to bring considerable economic benefit to the customers.
Process Flow Diagram of Stone Production Line

Performance of Stone Production Line

The stone production line is with high automation degree. Except for the boot, shutdown and daily maintenance of the equipment, the production line hardly needs manual operation. The production line has high production efficiency, low operation costs, large output, and high interest. The finished stones produced are in uniform particle size and good shape, conforming to the national standards of highway materials. The equipment configuration of the stone production line (sand-stone production line) is based mainly on the specifications, production capacity and purpose of the stones. In the design of technological process, crushing and screening combination equipment, with reasonable matching of crushing devices at different levels and rigorous spatial cross arrangement, has the characteristics of small occupation of land, high investment economic efficiency, high quality of crushed stone, low stone powder yield, etc. Meanwhile, the production line is equipped with advanced electric-controlled operation system, which has guaranteed the smooth material discharging, reliable running, convenient operation, high efficiency and energy saving of the whole process.

Use Flow of Sand-stone Production Line Equipment

1. When the hardness of the material doesn't exceed 150Mpa, we usually use one-time forming equipment to save customer cost and improve work efficiency. The main equipments are: vibrating feeder--high efficiency compound crusher (Namely two-in-one crusher, which can break large materials into ideal particle size through special design, normally is hammer crusher)--vibrating screen--finished stone product. Belt conveyor is used to transport the materials during the process.

2. In the stone production line, when the hardness of the material doesn't exceed 150Mpa, such as granite, basalt etc, we all adopt the crushing technology of two-level sand-stone production line. The main equipments are: vibrating feeder--jaw crusher (primary crushing)--stone crusher (secondary crushing, can adopt counterattack crusher, hammer crusher, or impact crusher)--vibrating screen--finished stone product. Belt conveyor is used to transport the materials during the process.
