2014 Best Sale Paper Cup Machine ,coffee paper cup making machine
- Ningbo/Shanghai
- T/T Credit Card
You May Like
-
2014 Best Sale Paper Cup Machine ,coffee paper cup making machine
-
SZB/2W Double Sides PE Paper Cup Forming Machine (the Sealing System is Heating)
-
2014 Best Sale Paper Cup Machine ,paper cup machine germany
-
2014 Best Sale Paper Cup Machine ,paper cup machine germany
-
2014 Best Sale Paper Cup Machine ,paper cup machine germany
-
2014 Best Sale Paper Cup Machine ,paper cup machine taiwan
Product Details
| Condition | New | Product Type | Paper Cup Machine | |
| Processing Type | Paper Folding Machine | Place of Origin | Zhejiang, China | |
| Brand Name | Victory | Model Number | SZB/2w | |
| Voltage | 220V/380V | Power(W) | 4.5Kw | |
| Dimension(L*W*H) | 2500*1300*1700mm | Weight | 1500Kg | |
| Certification | CE | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
coffee paper cup making machineSZB/2W Paper Cup Making Machine both make Single PE paper cups and Double PE paper cups

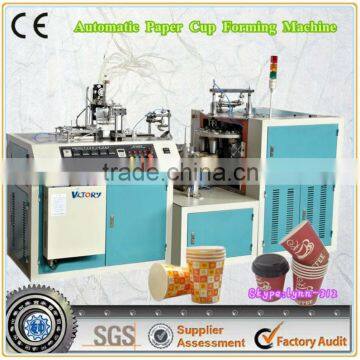

MACHINE DESCRIPTION
SZB/2W Double sides PE coated paper cup making machine is an equipment can produce both for Single side PE paper cups and Double sides PE paper cups,it compared to the original SZB/W Single side PE paper cup machine,this machine has up to a better quality and beautiful appearance with Ultrasonic welding function.These paper cups suitable for both hot and cold drinking,such as coca cola,ice cream and coffee etc.
MAIN TECHNICAL PARAMETER
Model | SZB/2W-9 | SZB/2W-12 | SZB/2W-18 | SZB/2W-22 |
Production capacity | 50-60PCS/min | 45-55PCS/min | 40-50PCS/min | 35-45PCS/min |
Required paper | 150-400gsm Single Side PE Paper or Double Sides PE Paper | 150-400gsm Single Side PE Paper or Double Sides PE Paper | 150-400gsm Single Side PE Paper or Double Sides PE Paper | 150-400gsm Single Side PE Paper or Double Sides PE Paper |
Cups Range | (A)Top Dia:50 -80MM ,(B)Height:35-95MM (C)Bottom Dia:35-60MM , (D)Knurling:5 -10 MM | (A)Top Dia:50 -85MM ,(B)Height:35-115MM (C)Bottom Dia:35-70MM , (D)Knurling:5 -10 MM | (A)Top Dia:60 -128MM ,(B)Height:45 -140MM (C)Bottom Dia:50 -97MM , (D)Kurling:5 -10 MM | (A)Top Dia:60 -128MM ,(B)Height:45 -180MM (C)Bottom Dia:50 -97MM , (D)Knurling:5 -10 MM |
Total power | 220/380V 50HZ 4.5KW | |||
Air supply requirement | Working pressure: 0.4-0.6working gas volume: 0.5m3 /per minute | |||
Weight | 1350kg | 1400 kg | 1600kg | 2000kg |
Overall dimensions (L*W*H) |
2500*1300* 1700mm | 2650*1300* 1800mm | 2850*1300* 1900mm |
3000*1400* 2000mm
|
Note:We can make the paper cup machine suitable for your requirement.
