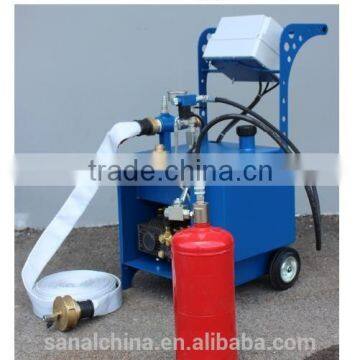

CEM

Equipment for testing water tanks for portable fire extinguishers and fire hoses UNI25

UNI45 and UNI70. Provided with a reserve tank of water from 10 Lt.

TECHNICAL INFORMATION

- Overall dimensions totals approximately L x W x H 477 x 529 x 988 mm;

- Weight 61 kg;

- Engine: 1.8 kW - 1450 rpm - 50 Hz;

- Pump: 8 l / min at 100 bar max;

- Power supply 220 V;

- Connections for hoses UNI 25, UNI 45 and UNI 70;

- Connection for portable tanks fil. 30x1,5

- Hose mt. 1.5 provided with quick coupling;

- Connection for trolley wire. 2 "G optional on request.

C62

System for testing tanks powder extinguishers - foam to 6 seats for laptops and 2 seats (optional) for

trolley.

The plant, closed circuit, fill, press and empty tanks without removal from the ramp, has a

the reservoir water of 300 liters.

TECHNICAL INFORMATION

- Overall dimensions totals approximately L x W x H mm 3000x1000x1500

- Weight 80 kg. the tank is empty;

- Pump: 8 l / min at 100 bar max 3 kw

- Power supply 220 V 3P 16A

- Connections for hoses UNI 25, UNI 45 and UNI 70;

- Attacks for portable tanks fil. 30x1,5

- Connection for trolley wire. 2 "G optional on request.

CR6

SV AP 2.2

Image of the reversal of the CR6

Picture of the pump and framework The equipment CR 6 allows for testing of high pressure cylinders of any capacity up to diam. 250 mm; (On request cylinders diameter 400 mm). It is equipped with a system that allows you to upload water cans and empty them automatically via tilting. It is equipped with a system for purging Total air inside the cylinders. On request it is possible to work in closed circuit with water recovery test. And 'possible to vary the number of cylinders to be tested according to customer requirements. E 'can

also equip the machine with a double ramp with 2/4/6/8/10 cylinders ramp.

TECHNICAL INFORMATION

- Overall dimensions totals approximately L x W x H 4000 x 3000 x 2200 mm;

- Steel frame in focus with side shields for the operator;

- No. 6 clamps with pneumatic closing contemporary;

- No. 6 cylinder W28.8 special attacks;

- Phase electric motor with reduction gear for tipping;

- Stainless steel tank cap. 0.5 mc. about;

- Hydropneumatic pump with maximum test pressure of 450 bar;

- Pressure gauge certificate SIT 600 bar.

COMBI M

The equipment COMBI allows uploading any type of extinguisher or cylinder dioxide

carbon with liquid CO2 at high pressure and has a reserve of compressed air which serves both to

feed the pneumatic vice built that for the cleaning of cylinders. Can be transported

vehicles with the possibility of adaptation also for vans.

It also has a device for checking the pressure for pressurizing with nitrogen (reducer

pressure not included)

Available with compressed air 8 BAR (COMBI M) and version 19 BAR (COMBI M20).

TECHNICAL INFORMATION

- Overall dimensions totals approximately L x W x H 1550 x 540 x 1210 mm;

- Carter folded sheet steel painted fire;

- CO2 pump 8 l / min;

- Compressor 8 bar 6 lt. or 19 bar 3 lt;

- Pneumatic vice with 100mm piston. and pneumatic controls bimano, with external controller can

Also tighten CO2 cylinders in aluminum;

- Pressure gauges for monitoring the pressure of the compressed air, nitrogen and CO2;

- Removable front grille ventilation;

- Power supply 220 V 3 Kw.

TESTING AIR HOSE

TECHNICAL INFORMATION

- Overall dimensions totals approximately L x W x H mm 50x50x1000

- Weight 30 kg;

- Air compressor 8 BAR 220V 1 kw

- Adapters for hoses UNI 25-45-70;

- 220 V 3P 16A

Equipment for testing

hoses to UNI 45-70-25

system pressure. max 5 bar.

Frame with wheels with practice

Toolbox

PCA

NIT 'FOR THE FILLING OF TANKS FOR CO2 carbonation OF MINERAL WATER

TECHNICAL INFORMATION

- Overall dimensions totals approximately L x W x H 1050 x 550 x 1180 mm;

- Weight 120 kg;

- Power: 220 V. 1.1 Kw + air 8 bar;

- Pump co2 3 l / min;

- Locking bombolina tire;

- System electronic weighing scale 20 kg division 10 gr.

ACCESSORIES:

- Filling of Cartridges Kit with valve leaflet up to 5 kg;

- Scales and external pipes for the filling of cylinders over 5 kg;

- Kit for connection to a cryogenic tank;

- Kit for filling of Cartridges internal extinguishers.

The unit can remove the carbon dioxide from both cylinders from cryogenic tank, for the latter

you must report it in step d 'order. The equipment is equipped with valves and steel fittings and stainless steel pipes Teflon-compatible with the industry food.

The unit is able to fill a wide range of of Cartridges present on the market, thanks to a accessory also cylinders with valve leaflet up to 5 kg. and beyond with external balance. The power supply is 220 V, having a low absorption can be connected to any electrical system.

This unit has the possibility of filling phase manual or automatic:

Fase manual:

The clerk shall manually activate all

the filling phases.

Fase automatic:

The attendant blocks bombolina with morse pneumatic and operates the automatic cycle, the

machine performs its own shares for the weight filling of bombolina. All filling phases are controlled by a

electronic weighing system integrated with ex Automatic pump in weight reached, it is also can store and recall to need 12 weights preset
