Fire Extinguisher CO2 Filling Machine WITH PARTS

fire extinguisher CO2 filling machine WITH PARTS

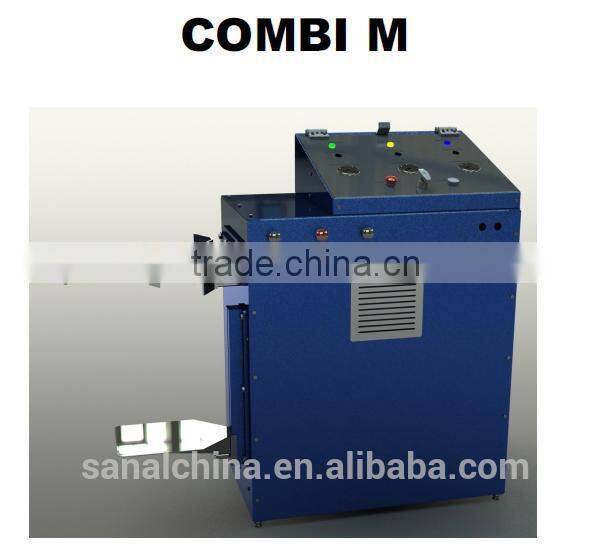

COMBI M

The equipment COMBI allows uploading any type of extinguisher or cylinder dioxide carbon with liquid CO2 at high pressure and has a reserve of compressed air which serves both to feed the pneumatic vice built that for the cleaning of cylinders. Can be transported vehicles with the possibility of adaptation also for vans. It also has a device for checking the pressure for pressurizing with nitrogen (reducer pressure not included)

Available with compressed air 8 BAR (COMBI M) and version 19 BAR (COMBI M20).

TECHNICAL INFORMATION

- Overall dimensions totals approximately L x W x H 1550 x 540 x 1210 mm;

- Carter folded sheet steel painted fire;

- CO2 pump 8 l / min;

- Compressor 8 bar 6 lt. or 19 bar 3 lt;

- Pneumatic vice with 100mm piston. and pneumatic controls bimano, with external controller can

Also tighten CO2 cylinders in aluminum;

- Pressure gauges for monitoring the pressure of the compressed air, nitrogen and CO2;

- Removable front grille ventilation;

- Power supply 220 V 3 Kw.

MM1 is a manual bench-mounting clamp that can be used to loosen and tighten the valves of dry powder portable extinguishers. It is designed to be easily snapped in place.

MP1

Bench version

TECHNICAL INFORMATION

- Overall dimensions totals around for the two versions available:

1. Version with stand tall - L x W x H (850/1000) x 400 x 1150 mm. weight 45 kg

2. version from needless - L x W x H (850/1000) x 400 x 380 mm. weight 40 kg.

- Weight Kg.40 / 30 Kg

- Body grip tubular steel painted fire;

- Pneumatic piston side thrust force of 100 sq mm 565 Kn to 8 bar;

- Control panel tire;

- Adjustable rod for adaptation to any type of tank;

- Support base height adjustable and removable (for the MP2).

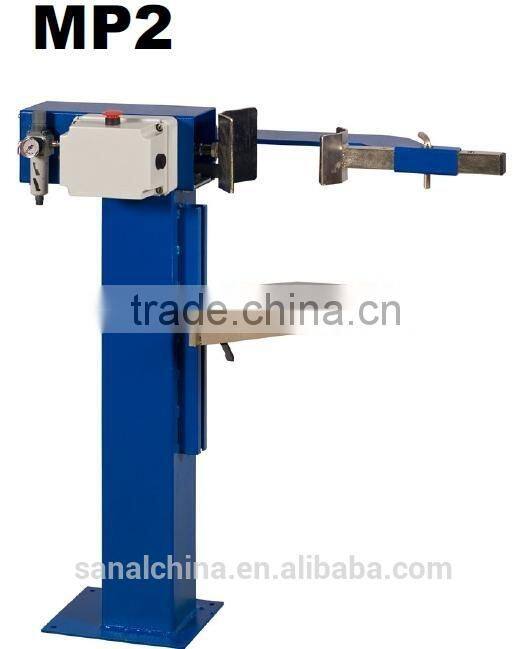

The pneumatic vice standing MP2 blocking firmly tank, allows to unscrew and tighten the valve of any fire extinguisher powder and / or foam and fire extinguishers CO2 cylinder valve with OR. There clamping power is adjustable and visible through the reducer pressure provided recovery condensation.

And 'equipped with two buttons drive and one emergency in full compliance Accident prevention and can be

Also mounted on vehicles equipped. clamping diameter 80-260 mm.

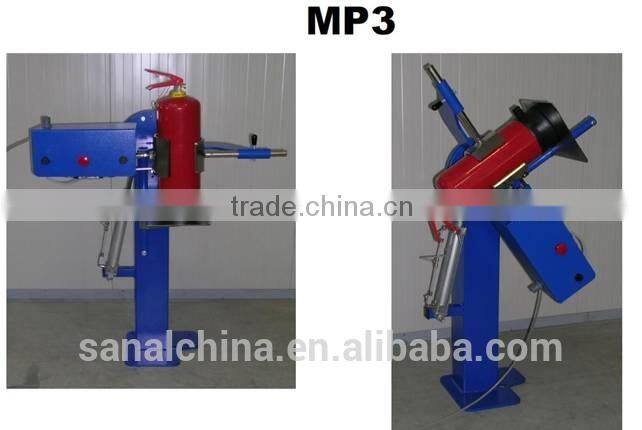

MP3

The pneumatic vice swivel base to MP3, firmly blocking the tank, and allows you to unscrew tighten the valve of any powder extinguisher and / or foam and CO2 extinguishers in cylindrical valve with OR.The clamping power is adjustable and visible through the pressure reducer provided with recovery condensation.

E 'equipped with two trigger buttons and an emergency in full compliance accident and can also be mounted on vehicles equipped.Is also equipped with safety piston for slowing around clamping diameter 80-260 mm

TECHNICAL INFORMATION

- Overall dimensions W x D x H (850/1000) x 400 x 1150 mm.

- Weight 60 kg

- Body grip tubular steel painted fire;

- Pneumatic piston 100 sq mm side thrust force 565 Kn to 8 bar.

- Piston safety

- Control panel tire;

- Adjustable rod for adaptation to any type of tank;

- Support base height adjustable and removable.

Optional Art. MP3V = vibration kit vise.

bench version

TECHNICAL INFORMATION

- Overall dimensions totals around for the two versions available: L x W x H 1150 x 1150 x 240 mm.

- Weight 40 Kg

- Lockable diameters: 80 to 260 mm

- Power: pneumatic, max.8 atm

- Pneumatic piston 63 sqmm side thrust force 224 Kn to 8 bar;

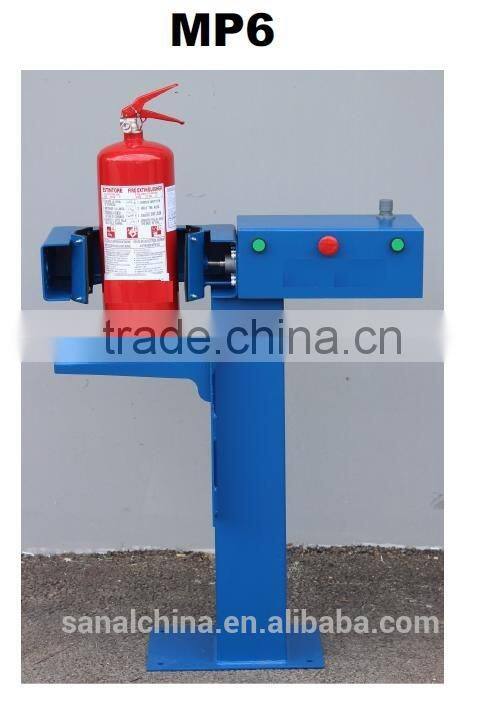

The pneumatic vice standing MP6 blocking firmly tank, allows to unscrew and tighten the valve of any fire extinguisher portable powder and sciuma. There clamping power is adjustable and visible through the reducer pressure provided recovery condensation. E 'equipped with two buttons drive and one emergency

in full compliance accident prevention.
