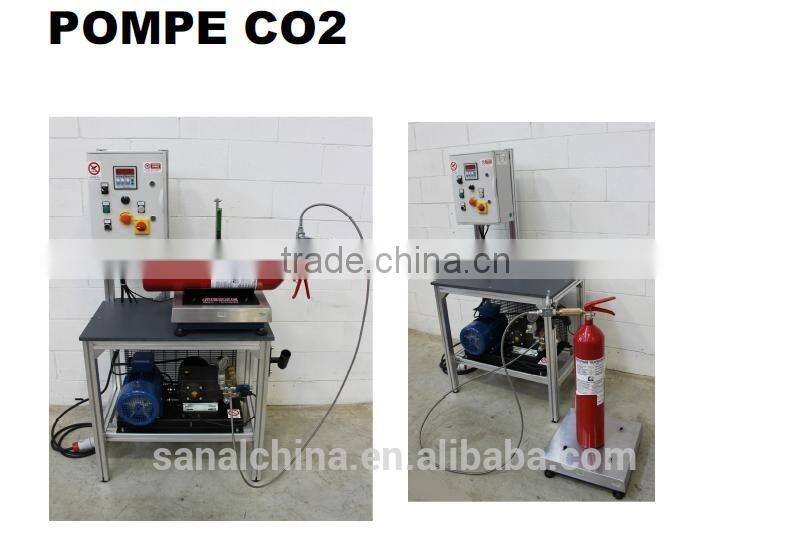

Fire Extinguisher CO2 Filling Machine WITH POMPE CO2

fire extinguisher CO2 filling machine WITH POMPE CO2

PUMPS CO2

WITH INTEGRATED WEIGHING

TECHNICAL INFORMATION

- Dimensions W x D x H 800x600x1500 mm.

- Aluminium frame - PVC

- Weight 70 kg.

- Electric motor 2.2 kW;

- Control panels;

- Safety valve;

- Adjustable pressure.

- Hoses A.P.

- Weighing system 120 kg. 12 memories

- Vice manual horizontal;

- Power:

- PC1S 220V 3P 16A;

- PC2S 380V 16A 5P;

- PC4S 380V 16A 5P.

The pumps co2 PC1, PC2 and PC4 can be integrated in a weighing system with latch pump automatic target body weight desired. The weighing platform is installed on a practical workbench and convenient for

the operator there are control panels and pump scale. The weight setting is performed directly by the operator with the possibility of save 12 memories weight. The weighing platform may be placed in

floor for the filling of cylinders more large.

Moreover, the system is equipped with the grip for manual place in safety the cylinders to be filled.

ART. PC1S pump co2 = 220 V, 8 l / m

ART. PC2S pump co2 = 380 V, 8 l / m

ART. PC4S pump co2 = 380 V, 13 l / m

PUMPS CO2 – PCB/B

TECHNICAL INFORMATION

- Dimensions W x D x H 800x600x1500 mm.

- Aluminium frame - PVC

- Weight 73 kg.

- Electric motor 2.2 kW;

- Control panels;

- Safety valve;

- Valve A.P. 3-way automatic;

- Adjustable pressure.

- Hoses A.P.

- System weighing 120 kg. 12 memories

- Manual vice horizontal;

- Power supply 380v 16A 4P:

The pumps co2 PCB can be integrated into a weighing system with automatic pump stop the desired weight.

The weighing platform is installed on a practical workbench and convenient for the operator there are control panels and pump scale. The weight setting is performed directly by the operator with the option to save

12 memories weight. The weighing platform may be placed in floor for the filling of cylinders larger.

Moreover, the system is equipped with the grip for manual place in safety the cylinders to be filled

ART. PCB / B = + 380V pump co2 balance

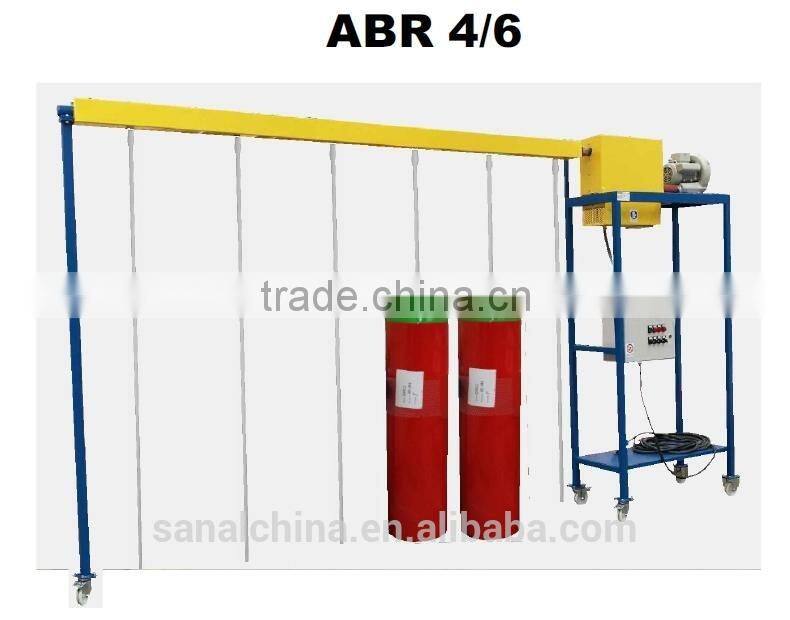

ABR 4/6

The unit is capable of drying cylinders 4-6 in session through the blowing force and the heating

air. is equipped with 3 batteries of resistors 2000 W each, inserted individually or simultaneously, the

part of the machinery subjected to heating is suitably insulated.

The floaters aluminum for insertion in the cylinders are equipped with quick coupling, the system brings on board also a removable LED light for verification drying.

ABR 4 - nr. 4 seats 4000 w

ABR 6 - nr. 6 places 6000 w

TECHNICAL INFORMATION

- Dimensions WxDxH mm = 2930-3600x600x2550

- Painted steel frame equipped with wheels;

- Electrical;

- Blower 220 V 1.1 Kw;

- 03 batteries of resistors 2000 W each;

- 04-06 floaters for drying

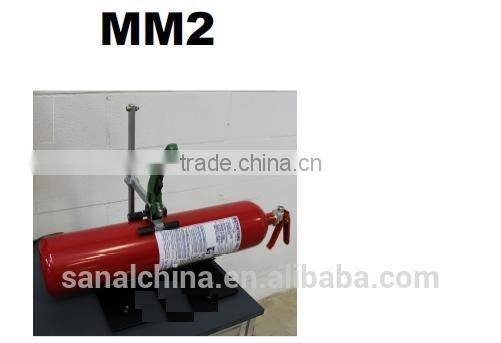

Manual vice with vertical positioning

cradle for portable fire extinguishers

Dimensions:

Height 40 cm

Width 30 cm

Depth 30 cm

lockable diameter 80-190 mm

Weight: 5 kg

Carton packaging WxDxH 34x34x44 cm

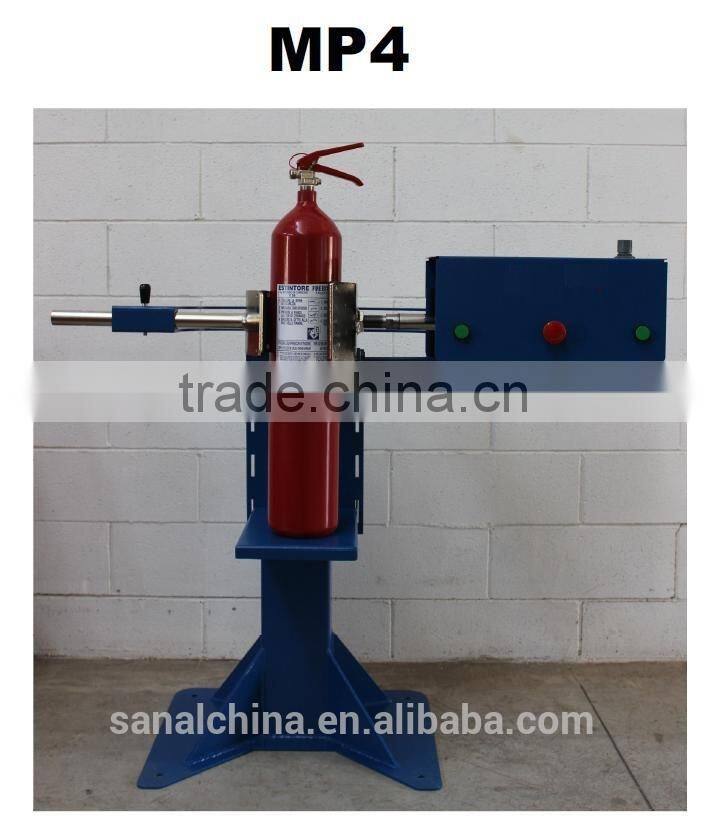

MP4 is a pneumatic clamp with stand that firmly locks the reservoir in places ,so that the valves of dry powder or

carbon dioxide extinguishers can be loosened or tightened. It can also be used for automatic fire-fighting systems. The torque is adjustable and can be viewed on the pressure reducer, which is also fitted with a condensation recovery device. It has two start/stop buttons and one emergency button for full compliance  with safety standards. MP4 has a higher tightening torque as compared to the other models and can therefore be used also to disassemble old cylinders and valves tightened with a threadlocker. It can also be used in combination with an electric nut runner/screwer with inverter.

COMPONENTS

Height 1200 mm

Width 1250 mm

Depth 680 mm

Diameters that can be torqued: from 80 to 320 mm

• Power supply: pneumatic, max.10 atm

• Suitable for the tightening of the following types of reservoirs: Portable dry powder and CO2

extinguishers; CO2 cylinders with a maximum capacity of 50 kg; cylinders for automatic fireextinguishing

systems.

• Maximum torquing: 982 kg

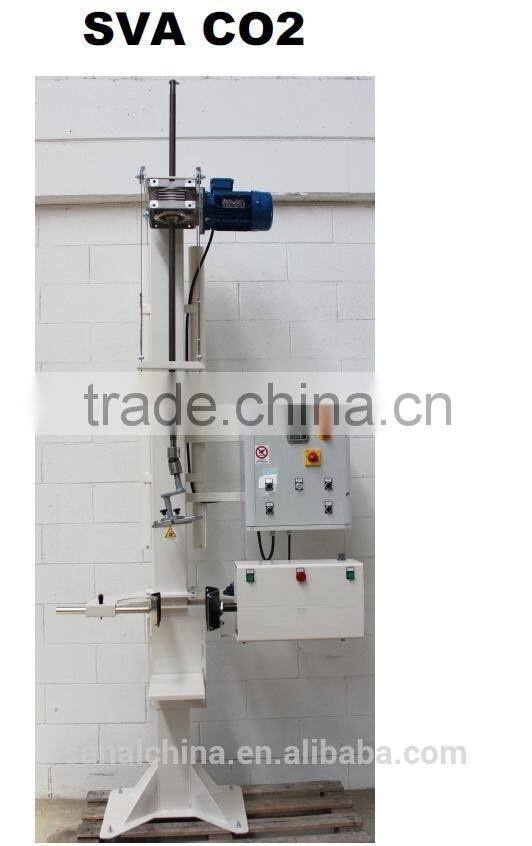

SVA CO2

the equipment allows SVACO 2 avoid or tighten valves on cylinders C02 of any capacity. It is provided with a

pneumatic clamp piston 125 sq mm that locks tanks from 2 to 50 kg. capacity. the tightening has the torque and speed can be set from keyboard with automatic locking.It is equipped with two-hand control in compliance with safety regulations.

optional:

- Protective cage.

- SVACO2 160 version with piston

160 sq mm.

ECHNICAL INFORMATION

- Overall dimensions totals approximately L x W x H (1100/1400) x 650 x (2900/3900) mm;

- Weight 250 kg;

- Necessary connections: 380V sp 16 A 4-pole more air 8 bar;

- Maximum speed of screwing 25 g / m;

- Diameter cylinders grip range from 80 to 320 mm;

- Step universal key from 20 to 50 mm;

- Steel frame in focus;

- Arm tightening extensible cylinders height up to 2 meters;

- Phase electric motor with gear reduction unit 1.1 Kw;

- Control panel with inverter electronically controlled torque;

- Optional: protective cage with safety relay and universal key from 30 to 70 mm.

Optional - Protective cage with safety relay
