Hot Sale Light Steel Structure House

hot sale Light steel structure house

Length 211m * Width 104 m * Height 33.3 m

Multispan :38m + 36m +30 m

Crane:600/120T(1pc),200/60T(2pcs)

The cross section height of the crane beam :2.5m and 4.0m

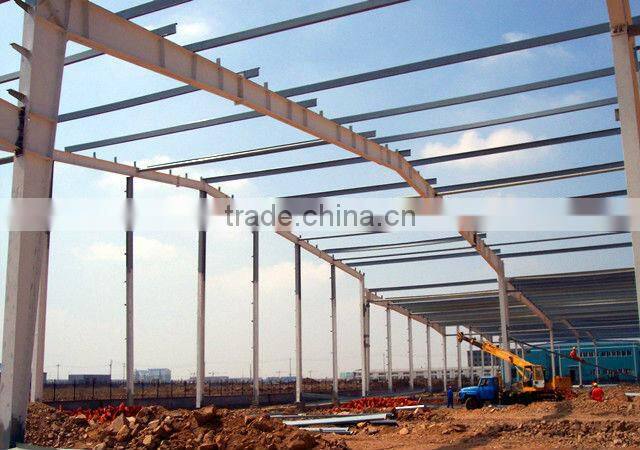

steel frame :purlin ,beam ,column

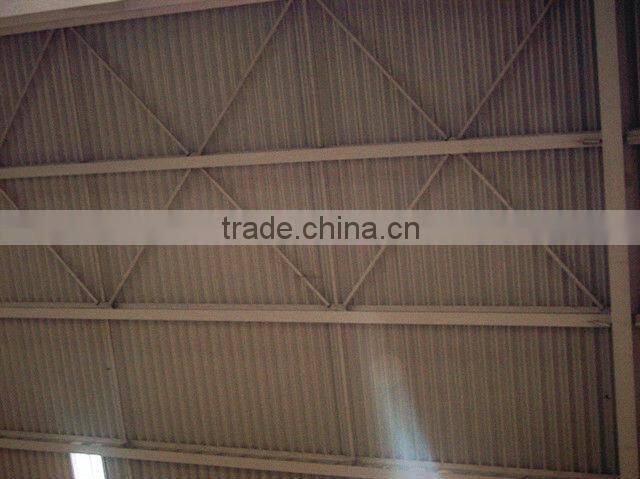

Roof with horizontal bracing

Corrugated sheet for roof

33.3m height with corrugate sheet wall

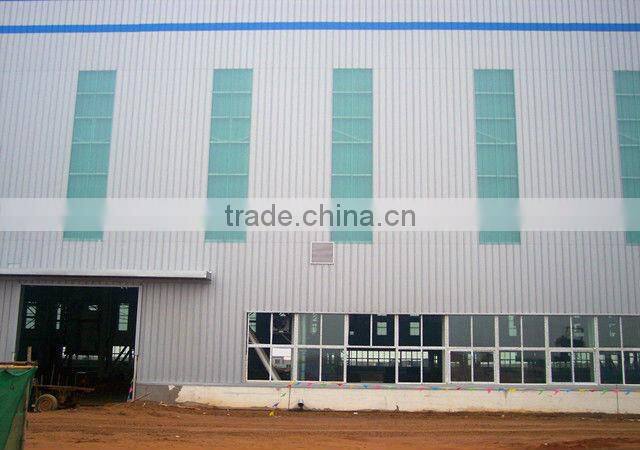

Portait slylight and horizontal PVC windows

Sliding door with steel canopy

hot sale Light steel structure house

Detailed Description

1.Certification:SGS Standard,ISO9001:2000 2 approved.

2. Standard of Steel Structure warehouse  are covering:

· "Cold-formed steel structure technical specifications" (GB50018-2002)

· "Construction Quality Acceptance of Steel" (GB50205-2001)

· "Technical Specification for welded steel structure" (JGJ81-2002, J218-2002)

· "Technical Specification for Steel Structures of Tall Buildings" (JGJ99-98)

3.Commonly used steel grades and performance of steel

· Carbon structural steel: Q195, Q215, Q235, Q255, Q275, etc

· High-strength low-alloy structural steel

· Quality carbon structural steel and alloy structural steel

· Special purpose steel

4. Wall & roof can made of  steel sheet, EPS sandwich panel, rock wool sandwich panel

    & PU sandwich panel.

Advantages we have

1.Quality

  High strength, light weight, good material, high reliability and short-duration high level of

  industrialization .

2.Capacity of engineer

   *Based on the concept of modern design and corresponding national standards

   *Most optimized design high-efficiently with the use of advanced internal aid design software,

    such as PKPM and 3D3S

   * Complete set of production and installation drawings of steel structure to ensure the high-

     efficient and accurate operation

3.Strong capacity of production

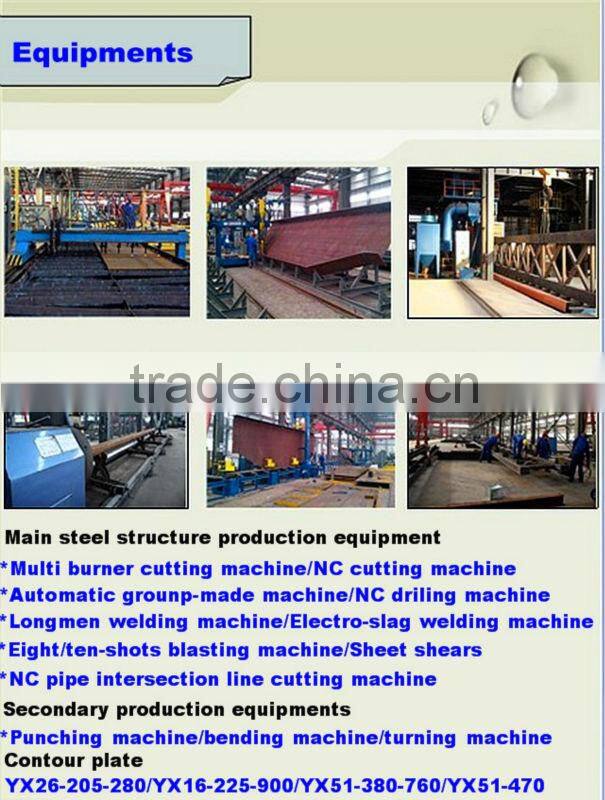

    *Own light/heavy H steel production line,BOX production line ,C/Z purlin production line and

     various types pf profiling steel sheet machines.

    *The annual production capacity :main steel structure 20000mts,secondary steel 15000mts,

     various profiling steel sheet 300000 sqm Per annuam

4.Our experience

    *10years of accumulation and deploitation.

    *Formed our own complete set of building system for wall and roof of steel structure .

    *Rich experience in waterproofling and insulation technology.Support quality assurance of

     our clients.

hot sale Light steel structure house

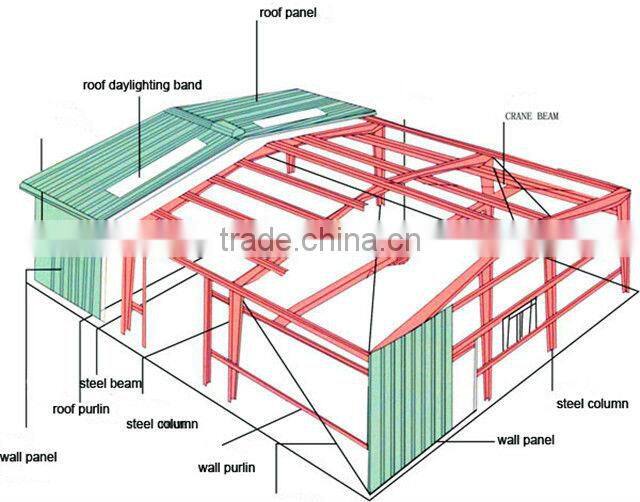

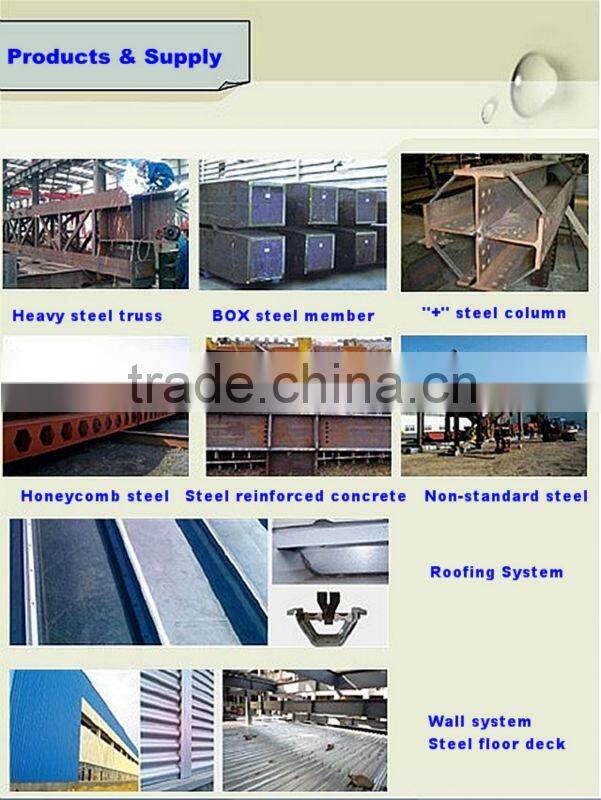

Steel Structure Components and Material

  1.Main frame

    Column and beam---Q235/Q345 steel with  high strength and stiffness,high weight bearing

  2.Secondary  frame

    C steel,Z steel , square tube , steel angle ,tie bar,tendsion rod and bracing.

  3.Doors and windows

    Sandwich panel doors,roller doors.PVC window,aluminum alloy window

  4.Roof and wall materials Semi-transparent skylight belts, Ventilators, down pipe etc

     Corrugated sheets,sandwich panel(EPS,ROCK WOLL,GLASS WOOL)

  5.Accessories

    Semi-transparent skylight belts, Ventilators, down pipe,gutter,etc

  6.Connections

     Anchor,high strength/ordinary bolts,steel plate

              BEAM                                         COLUMN                                  PURLIN                                TIE BAR

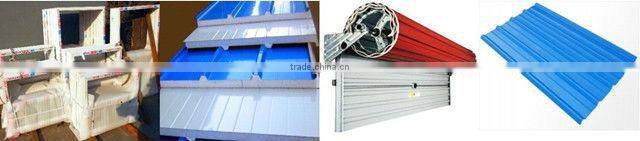

 PVC WINDOW                                SANDWICH PANEL                  ROLLER DOOR                CORRUGATED SHEET

we need you supply the information as following
