Professional Jaw Crusher Spare Parts
- shanghai
- T/T
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | ZT | |
| Model Number | jaw crusher spare parts | Type | Other, jaw crusher spare parts | |
| Machine Type | Crusher | Certification | Other, ISO 9001, ASTM DIN BS | |
| Material | High Manganese Steel | Processing Type | Casting | |
| Use | Other, Ore Mining, Ore Mining |
Product Description
Jaw crusher spare parts
Specification
1.Jaw plate,side plate,block,toggle plate with long lifetime
2.Fast Delivery
3.high manganese steel
4.With great quality
5.Model:PE-150*250 PE-250*400 PE-400*600 PE-500*750 PE-600*900 PE-750*1060 PE-900*1200 PE1200*1500 PEX-250*750 PEX-250*1000 PEX-250*1200 PEX-300*1300 C96 C100 C106 C110 C125 C140 C165 C3054 JM806 JM907 JM1108 JM1206 JM1208 JM1211 JM1312 JM1511 JM1513 etc.
Jaw crusher spare parts
Features:
1. Precise dimension
2. Superior surface finish and details treatment.
3. High wear resistance and long working life
4. Low friction
5. Low moisture absorption
6.OEM and service is available
Why choose our product
Advantage :
1 Quality control equiment
Spectrum Analyzer
Magnetic powder inspection
Dye inspection
Ultrasonic inspection undamaged testing
Hardness testing equipment
Machinery performance testing equipment
Metallographic microscope
LOBF direct-reading spectroscopy
2 High quality service ,one stop service ,accepted customized requested also OEM is available
3 Fast delivery only 15-20 days
4 A wide range of crusher wear resistant parts products .
5 Reasonable Price
Crusher Spare Parts Jaw Plates
A.Material Specifications of manganese casting jaw plate:
High Manganess Casting Material Chemical Composition | |||||||
Code Elem. | C | Mn | Si | Cr | Mo | P | S |
ZGMn13-1 | 1.0-1.45 | 11.0-14.0 | 0.30-1.0 | - | - | ≤0.09 | ≤0.04 |
ZGMn13-2 | 0.90-1.35 | 11.0-14.0 | 0.30-1.0 | - | - | ≤0.09 | ≤0.04 |
ZGMn13-3 | 0.9-1.35 | 11.0-14.0 | 0.30-0.8 | - | - | ≤0.09 | ≤0.04 |
ZGMn13-4 | 0.9-1.30 | 11.0-14.0 | 0.30-0.8 | 1.50-2.0 | - | ≤0.09 | ≤0.04 |
ZGMn13-5 | 0.75-1.30 | 11.0-14.0 | 0.30-1.0 | - | 0.90-1.2 | ≤0.09 | ≤0.04 |
Crusher Spare Parts Jaw Plates
Chemical elements
Name | C | Si
| Mn
| Cr
| Mo
| V | Ti
| Ni
| Cu
| P | S |
High Manganese Steel Liner | 1.1-1.4 | 0.3-1.0 | 11-14 | 0-2.5 | 0-0.5 | 0-0.5 | 0-0.2 | <0.5 | 0.2-1.0 | - | - |
middle alloy plate | 0.38-0.45 | 1-1.6 | 1.5-2.8 | 1.5-3 | 0.1-0.4 | 0-0.5 | 0-0.2 | <0.5 | 0.2-1.0 | - | - |
Multielement alloy plate | 1.5-2.5 | 0.5-0.8 | 0.6-1.0 | 3-5 | 0.15-0.3 | 0-0.5 | 0-0.2 | <0.5 | 0.5-1.0 | - | - |
High Manganese Steel hammerhead | 1.17-1.25 | ≤0.5 | 18.0-19.0 | ≤1.8 | - | - | - | - | 0.5-1.0 | ≤0.05 | ≤0.01 |
Crusher Spare Parts Jaw Plates
Jaw crusher Major wear parts : High Manganese parts

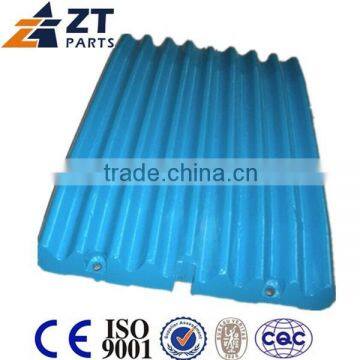

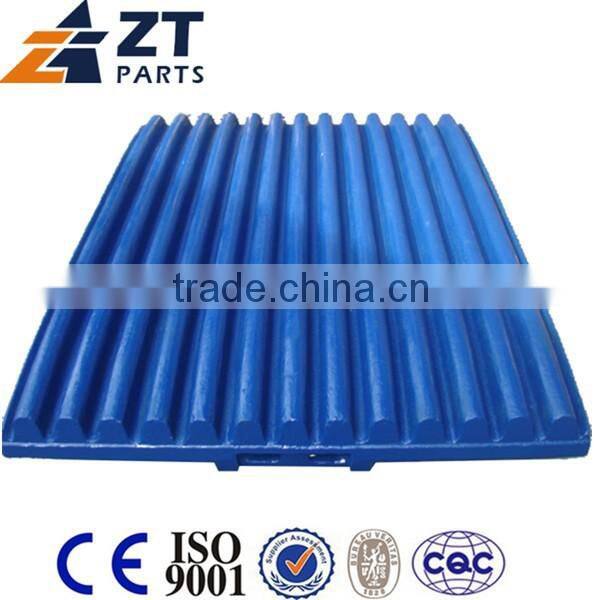

Fixed Jaw Plate
Swing Jaw Plate

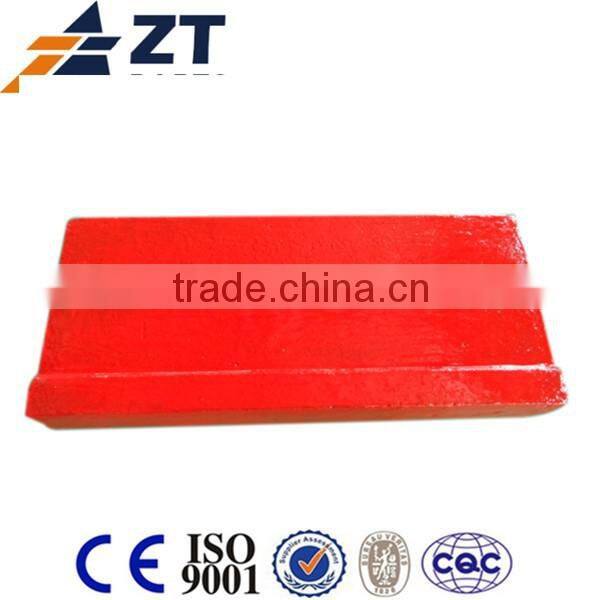

Upper cheek plate
Lower cheek plate

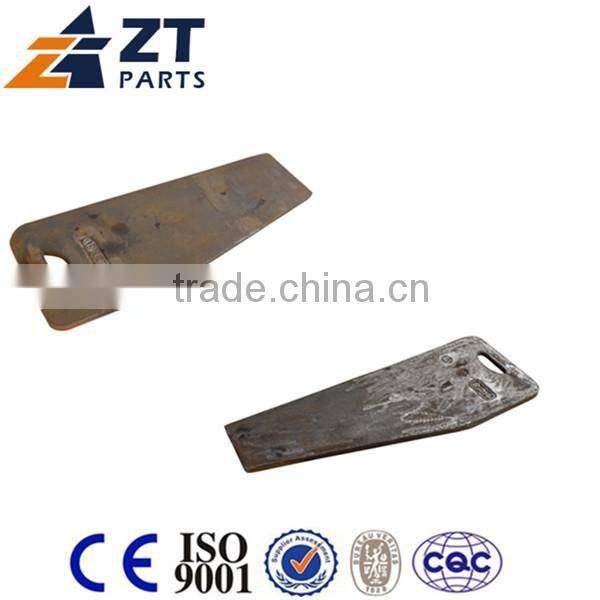

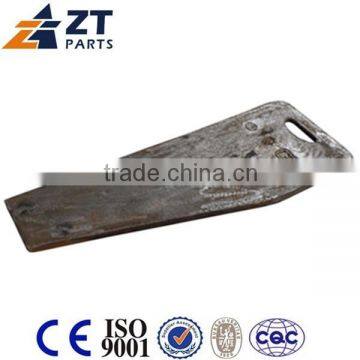

Toggle plate
BLOCK
Cone crusher parts : Mantle
Concave
Bowl
Cone feed plate
Bushing
Eccentric Shaft
Impact crusher parts: High Chrome Blow bar
Middle Alloy steel blow bar
High manganese steel blow bar
Impact Liner
Liner
Hammer crusher parts: Hammer head
Casting workshop
We have run our Alibaba china site more than seven years, here is our homepage of our Alibaba china site.
Contact Us
- Shanghai Zhentuo Machinery Co., Ltd.
- Contact nameRobin Li Chat Now
- Phone0086-021-57530553
- AddressNo. 143, Lane 88
