Cooling tower fill thermoforming machine

Cooling tower fill  thermoforming machine

EPS700/1200 thermoforming machine integrates vacuum forming with mold forming. It can form almost all thermoforming plastic sheets. It adopts PLC control system, panel and digtial power control adjustment. This fully automatic forming equipment is for thermoforming plastic sheets integrating feeding and heating with forming, cooling, mold ejecting and cutting. This machine features performance and convenient operation.

 Applications of  Cooling tower fill  thermoforming machine

It is suitable for thermoforming PS, HIPS, PVC, PET, PP and flocking sheets to produce various infills that used in cooling tower.

 Main technical parameters of Cooling tower fill  thermoforming machine :

1) Length of forming: 760 - 1,200mm

2) Width of forming: 500 - 1,050mm

3) Height of forming: ≤165mm

4) Production speed: 180 - 1,200 cycles/h

5) Power of oven: 117kw

6) Power of vacuum pump motor: 3kw

7) Pump speed of vacuum: 100cbm/h

8) Power of air compressor: 15kw

9) Air displacement of air compressor: 0.8cbm/min

10) Voltage: 380/220V 50Hz

11) Forming pressure: 20T

12) Overall dimensions: 7,560 x 1,780 x 2,600mm

13) Weight: 6,500kg

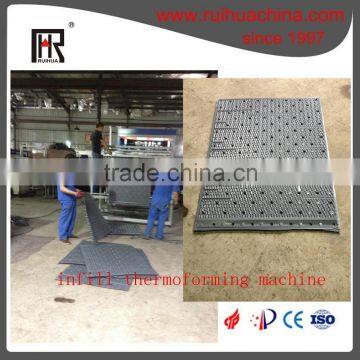

Cooling tower fill  thermoforming machine photo:

Cooling tower fill  thermoforming machine sample photo:
