Home > Products > ATSC > Hot High New Wholesale High Performance Digital Dvb-t2 Terrestrial Receiver Dvb-t2 Modulator for Home Use ,dvb-t2 Receiver
Hot High New Wholesale High Performance Digital Dvb-t2 Terrestrial Receiver Dvb-t2 Modulator for Home Use ,dvb-t2 Receiver
US$ 11.15 - 12.55
/ Piece
100 Pieces(Min. Order)
- shenzhen
- T/T Credit Card
You May Like
-
In-ear Headphones Earphones Earbuds for Mobile Phone
-
Portable Bluetooth Speaker Stereo Bluetooth Speaker for Mobile Phone
-
Square Portable Bluetooth Speaker Mono Bluetooth Speaker
-
Factory Supply Emergency Car Battery Charger, Premium Car Battery Charger
-
Best Price Emergency Car Battery Charger, Premium Car Charger
-
Best Price Portable Emergency Car Battery Charger, Premium Car Charger
Product Details
| Place of Origin | Guangdong, China | Brand Name | CZH | |
| Model Number | CZH-TM02 |
Product Description
Hot High New Wholesale high Performance Digital dvb-t2 Terrestrial Receiver dvb-t2 modulator for Home Use ,dvb-t2 receiver
Product description:
*DVB-T FTA(free-to-air) model
*HD MPEG-4/ H.264, MPEG-2 decoding
*Supports PVR function and multi-media playback(MP3/MP4/JPEG,etc) via USB2.0
*Available format: Motion JPEG, avi, mpg, dat, vob, div, mov, mkv, mjpeg, ts& trp
*Audio output: Stereo sound by S/PDIF(Coaxial)
*Multiple display mode: 1080p/ 1080i/ 720p/ 576i/ 576p
*High Definition Digital Video output by HD port or YPbPr
*Standard Definition Video output by CVBS
*32bit 16:9 True color OSD
*Multiple OSD language
*Display EPG/ Subtitle
*Supports Parental Control(Channel Lock)
*4000 memory channels
*Favourite program setting
*Upgrade software through USB
Technical Specification:
| Model | ||||
| Hardware | ||||
| CPU | MSTAR-MSD7T01(128 pin) MIPS 34Kf@600MHz | |||
| Memory | 32X16Mbit DDR2 Frequency1066 | |||
| Flash | 32M bytes | |||
| Demodulator Type | MSB1236C Chip Set | |||
| TUNER | Rafael R836 | |||
| Front Panel | USB 2.0 Embedded One Host, | |||
| 4-digit LED display on front panel | ||||
| red LED Standby,green LED Lock | ||||
| Panel KEY, POWER, CH+ ,CH- | ||||

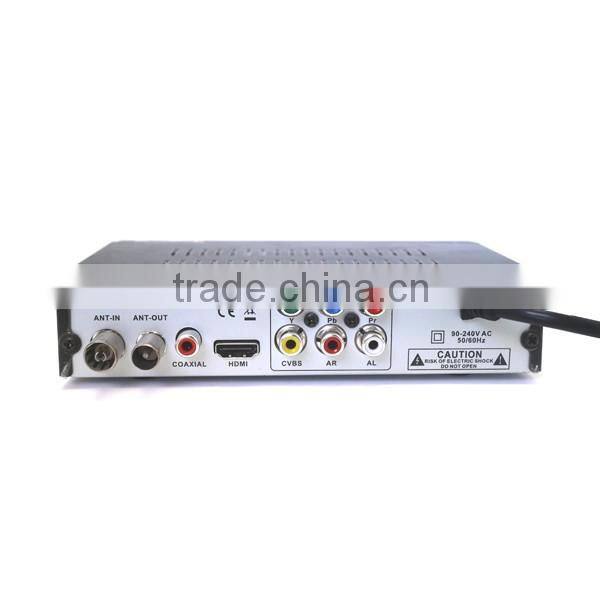

| Rear Panel | Tuner RF input connector | IEC-162-2( Female) | ||
| Tuner RF Loop through connector | IEC-162-2( Male) | |||
| HDMI V1.3/V1.4 | ||||
| RCA CVBS AL AR Connector x1 | ||||
| Ypbpr RCAx1 | ||||
| Coaxial x1 | ||||
| Power AC100~240V 50Hz/60Hz | ||||
| Demodulation | ||||
| Terrisal Receiver Standard | DVB-T2/T(EN_302755 V1.3.1/EN 300744) | |||
| Input RF Frequency | 48~866MHZ | |||
| Bandwidth | 6MHz,7MHz,8MHz | |||
| Constellation | QPSK 16-QAM 64-QAM and 256-QAM | |||
| FEC | 1/2, 3/5,2/3, 3/4,4/5,5/6 | |||
| Guard Interval | 1/128 1/32 1/16 19/256 1/8 19/128 1/4 | |||
| FFT Mode | 2K/ 8K/32K | |||
| Support | Support Single and multiple PLPS | |||
| Input level | -83 - -5dBm | |||
| Sortware Features | ||||
| •Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard | ||||
| •The maximum speed of the traffic flow of at least 50 Mbit / sec | ||||
| •Support 3D interface | ||||
| •Sleep Timer | ||||
| •Support teletext/subtitle/muti-language | ||||
| •Powerful and highly effective 7-day EPG function | ||||
| •AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen | ||||
| •USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback | ||||
| •Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P | ||||
| Decoder | ||||
| Video Decoder | Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818 MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps) MPEG-2 Main Profile# Main Level(15Mbps) H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps) | |||
| Audio Decoder | MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding | |||
| Powerful Multimedia Features | ||||
| MediaCodec | avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc | |||
| Audio Codec | WMA,MP3,AAC (.wma,.mp3,m4a) | |||
| Photo Codec | JPEG, BMP, PNG | |||
| License | ||||
| Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License. | ||||
| Accessories | ||||
| Accessories | gift box | |||
| AV cable optional | ||||
| HDMI cable optional | ||||
| IR remote control | ||||
| User Manual | ||||
| Loading | ||||
| Loading | machine size | 220*135*40mm | Packaged size | |
| machine weight | Packaged weight | |||
| Price | ||||
| MOQ(PCS) | 10000 | |||
| Price(RMB) | 72RMB | |||
| Remark | ||||
| 1. AC-3 function need up cost 1.00USD | ||||
| 2. CI function need up cost 4.00USD | ||||
| Export carton details: | |||||
| PACKAGING: GIFT BOX PACK | Container Quantity | ||||
| Qty per export carton: 20 pcs | 20" | 40" | 40"HQ | ||
| Carton meas.:52.5*45.5*25.5cm | 9180 pcs | 18360pcs | 21360pcs | ||
| Meas. per export carton | |||||
| G.W:16.0KGS | |||||
| N.W:15.0KGS | |||||

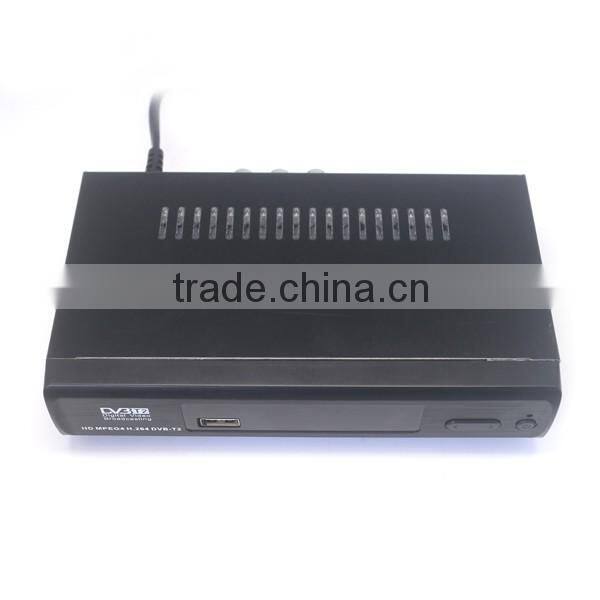

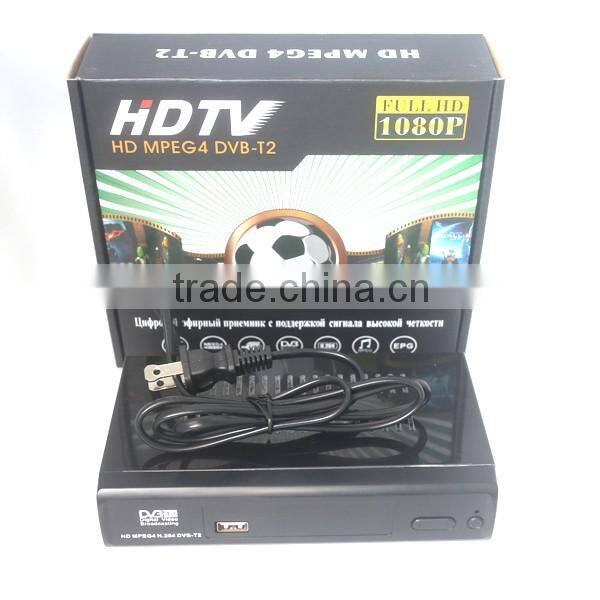

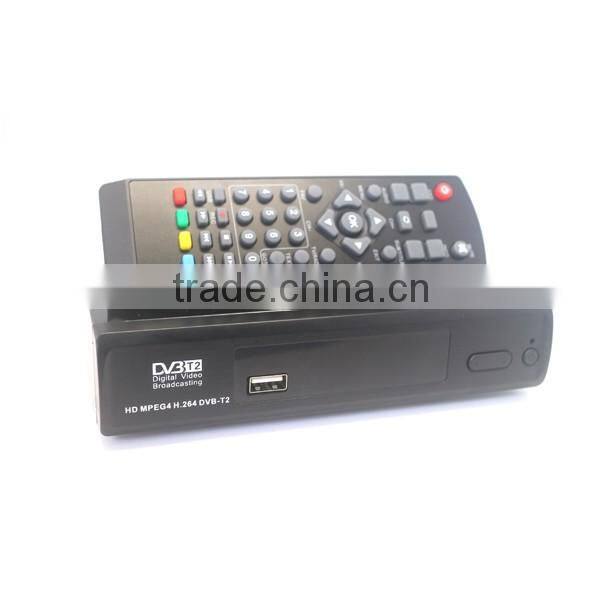

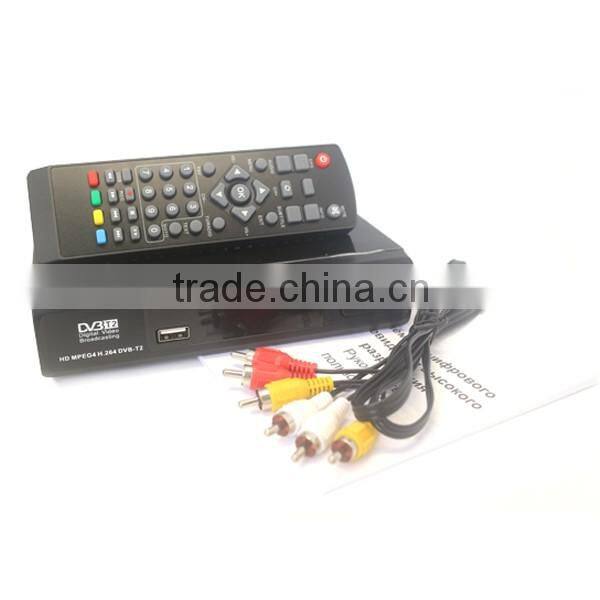

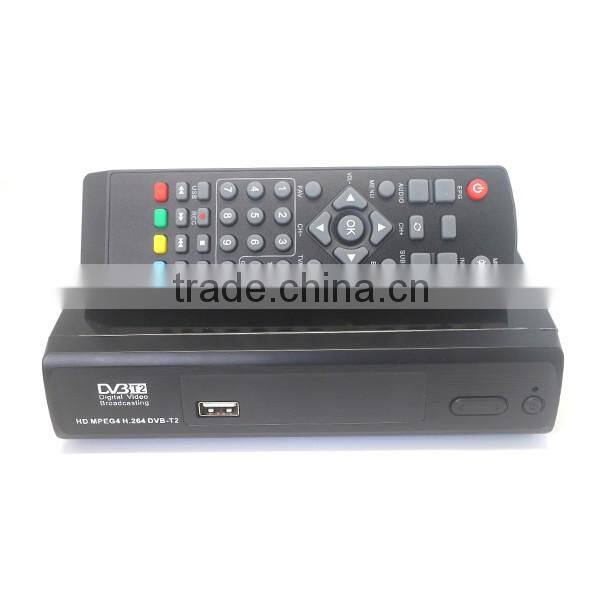

Picture show:
