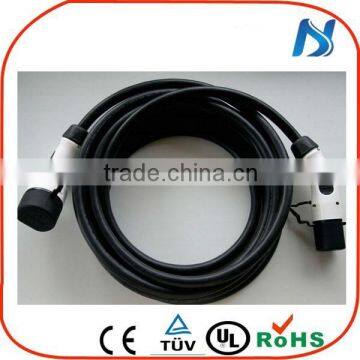

type 2 charger female socket plug/ev charging plugs/double male electrical plug

62196 type 2 EV charging for car

Application

Features

1.Meet IEC62196 standards;

2.Nice shape, hand-held ergonomic design, easy to use;

3.Protection class: IP54(in mated conditions);

4.Reliability of materials, anti-flaming, environmental protection, abrasion resistance, impact resistance, oil resistance and Anti-UV.

Performance

1.Rated current:16A/32A/63A;

2.Operating voltage: 250V AC;

3.Insulation resistance:>1000MΩ(DC500V);

4.Terminal temperature rise:<50K;

5.Withstand voltage:2000V;

6.Contact impedance: 0.5mΩ Max

7.Vibration resistance:Meet JDQ53.36.1.1-53.36.1.2 requirements.

Mechanical properties

1.Mechanical life: no-load socket in/pull out >10000 times

2.Insertion and Extraction Force: 45N<F<80N;

3.Operating temperature: -30°C ~ +50°C

Materials

1.Shell material: Thermoplastic (Insulator inflammability UL94 V-0);

2.Contact Pin: Copper alloy, silver or nickel plating;

3.Sealing gasket: rubber or silicon rubber;

type : DSIEC2e-EV16P / 32P /63P

Associated products

Details Photos

About Us

Chengdu Khons Co., Ltd have rich trade experience in the electric vehicle industry for years, now our products are exported to Europe,America, South Africa, Southeast Asia, Russia, etc.

All of the products are under strictly inspection during the production and distribution,

Hope our products can meet your requirements, welcome to join us.
