Home > Products > Rubber Cutting Machine > Hydraulic Vertical Rubber Bale Cutter/Rubber Blade Cutting Machine
Hydraulic Vertical Rubber Bale Cutter/Rubber Blade Cutting Machine
USD $1 - $99,999
/ Set
1 Set(Min. Order)
- Shanghai
- T/T Credit Card
You May Like
-
Table type Rubber Bale Cutter/Desk type Rubber Bale Cutting Machine/ Hydraulic Single Blade Rubber Bale Cutter
-
nanjing mixer rubber machine for cutting/rubber ring cutter machine
-
jiangsu hydraulic rubber bale cutter
-
hydraulic rubber cutter/rubber cutting machine baling machine
-
sliding window rubber strip cutter/cutting machine
-
ring cutter machine/vertical rubber cutter/single knife hydraulic rubber bale cutter
Product Details
| Condition | New | Type | Rubber Cutting Machine | |
| Place of Origin | Jiangsu, China | Brand Name | MIXER | |
| Model Number | XQ-600 | Voltage | 220V/380V/415KW/440V | |
| Power(W) | 4KW | Dimension(L*W*H) | 1000x900x2100mm | |
| Weight | 800 KG | Certification | ISO,CE | |
| Warranty | 1 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description

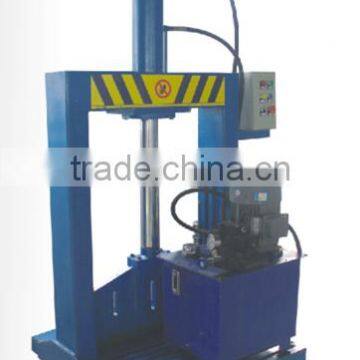

Hydraulic Rubber Bale Cutter/ Vertical Rubber Bale Cutter/Rubber Blade Cutting Machine
- The rubber bale cutter is suitable for cutting natural rubber,synthetic rubber and kinds of plastic material.
- This machine body is steel plate welding,soild structure, reasonable design,less area occupation,hydraulic working single blade. It mainly consist of cutting blade,frame,oil cylinder,pathway for raw rubber,and hydraulic station.
- It is suitable for large rubber products,pipes,tires,etc.
- We can add foot switch according to customer’s requirement.
- With hydraulic system control,operation is simple,safe,with powerful shear force and high production capacity.
Specification
Model | X-600 | XQ-800 | XQ-1000 |
Blade width | 660mm | 880mm | 1000mm |
Blade Stroke | 660mm | 880mm | 1000mm |
Max. Hydraulic pressure | 16T | 20T | 40T |
Blade quantity | Single | Single | Single |
Motor power | 4kw | 5.5kw | 11kw |
Cutting time | 16-25s | 20-50s | 30-60s |
Weight | 500kg | 800kg | 1500kg |
Max. working air pressure | 12MPa | 20MPa | 30MPa |
Dimension | L1000xW900xH2100mm | L1250xW1100xH2500mm | L1400×W1100×H2500mm |
Finished Product
Contact Us
- Nanjing Mixer Rubber&Plastic Machinery Co., Ltd.
- Contact nameJackie Ji Chat Now
- Phone0086-25-52631617
- AddressNo.58, Yunjin Road, Jianye District, Nanjing, Jiangsu
