Product Details
| Place of Origin | Jiangsu, China | Brand Name | Khons | |
| Model Number | DSIEC2b | Type | Electrical Plug | |
| Grounding | Standard Grounding | Rated Voltage | 250V | |
| Rated Current | 16A/32A /63A | Application | Industrial |
Product Description

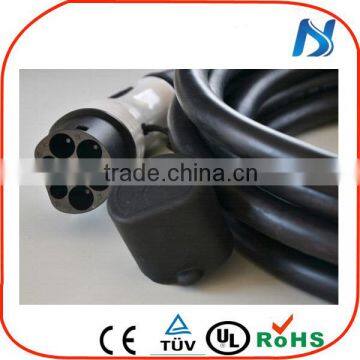

IEC 62196 type 2 charger for charging staition
- Meet IEC 62196 European Standards
- IP54 Rated Ergonomic Pistol Grip Style
- Impact Resistant ‘Run Over’ Proof
- 10,000 Mating Cycles
- Cable Strain Relief Feature
- Insulated Terminal Design
- Locking Feature for Padlock
- Dust Cap on Lanyard
- Custom Options on Cable Length and color
- CE & TUV Approved
Parameters
Type | KHONS-EVX16-63P | Mating Force | ≤80N |
Color | White | Mating Cycles | ≥10000 |
Rated Current | 16A/ 32A/ 63A | Flame Retardant | UL94 V-0 |
Rated Voltage | 500V | IP Rating | IP54 |
Test Voltage | 2000V | Operating Temperature | -30C to 60C |
Insulation Resistance | 500MΩ | Cable Size | 10mm² - 2.5mm² |
Contact Resistance | 0.055±0.005Ω | Plug Material | PC/Copper Alloy |
| Series | Rated voltage | Rated current | Power | Cable size |
1 | KHONS-EV63P | 240 / 415V AC | 63 Amp | 15.1 / 45.3KW | 10mm² |
2 | KHONS-EV32P | 240 / 415V AC | 32 Amp | 7.6 / 22.8KW | 6mm² |
3 | KHONS-EV16P | 240 / 415V AC | 16 Amp | 3.8 / 11.5KW | 2.5mm² |
Materials
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber
Application
Audi A3 e-Tron, BMW i3, BMW i8, Chevrolet Spark, Mercedes B Class E-Celi, Mercedes S500 PHEV, Mercedes SLS EV,
Mercedes Vito E-Cell Van, Porsche Panamera S PHEV, Renault Zoe, Renault Zoe 2013, Volkswagen e-Up,Volkswagen e-Golf, Volvo V60 PHEV.
Chengdu Khons Technology Co., Ltd.
We are dedicated in the electric car charger industry With Superior product quality, powerful factory
support and valued foreign trade experience to Europe, America,South Africa, Southeast Asia, etc
Our Advantage:
1.International approvals(UL,TUV,CE,ROHS)
2.Competitive price
3.Prompt Delivery time(7-10 days)
4.Guaranteed quality
5.OEM order is acceptable image
TUV CE,UL ,RoHs certification
Looking for long term business relationship with you.
