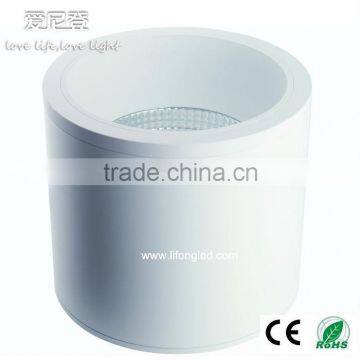

3 years warranty 30W Surface Mounted COB LED DOWNLIGHT
US$ 19 - 25
/ Piece
10 Pieces(Min. Order)
- SHENZHEN
You May Like
-
25W LED COB Surface Mounted Downlight Round LED COB Downlight
-
6 inch Residential Surface Mounted LED COB Downlight 25W
-
Dimmable Surface Mounted 18w 20w 25w LED Downlight COB Ceiling Downlight
-
18W Led 5 inch COB Surface Mounted downlight
-
2014 Energy saving lights new design 12W Led 4 inch COB Surface Mounted downlight,,3000K/4000K/5000K
-
Surface mounted led downlight 7W surface mounted round downlight led
Product Details
| LED Light Source | CREE | Warranty(Years) | 3 | |
| Input Voltage(V) | AC85-265V | Lamp Power(W) | 9 | |
| Lamp Luminous Flux(lm) | 720 | Lamp Luminous Efficiency(lm/w) | 80 | |
| Color Temperature(CCT) | Pure White | Working Temperature(℃) | -20, 40 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum Alloy | |
| IP Rating | IP44 | Certification | CE, EMC, FCC, LVD, SAA | |
| Model Number | CTM0101-30B | Place of Origin | Guangdong, China | |
| Brand Name | ELEGANT |
Product Description
Product Description
Spec:
Input voltage:AC85-265v
CCT:3000K/4000K/5000K
CRI:>80
Beam angle:38D
Light Source:CREE
Dimming mode:SCR/PWM
Size: 120XH151mm
| CTM0101-30B | ||||
| PRODUCT SPECS | ||||
| Model number | CTM0101-30B -7W | CTM0101-30B -9W | CTM0101-30B -12W | |
| LED | Origin | CREE COB (1 PCS) | CREE COB (1 PCS) | CREE COB (1 PCS) |
| Lumens | 7W 650lm | 9W 820lm | 12W 1100lm | |
| Beam Angle | 24D/38D | 24D/38D | 24D/38D | |
| Color temperature | 3000K/40000K/5000K | 3000K/40000K/5000K | 3000K/40000K/5000K | |
| Power consumption | 7W | 9W | 12W | |
| PFC | 0.9 | 0.9 | 0.9 | |
| Input voltage | AC85-265V | AC85-265V | AC85-265V | |
| Working temperature | -20~+40 | -20~+40 | -20~+40 | |
| CRI | 80/95 | 80/95 | 80/95 | |
| Dimmable mode | SCR/PWM | SCR/PWM | SCR/PWM | |
| Dimension | φ 120XH151mm | φ 120XH151mm | φ 120XH151mm | |
| Mounting hole | ||||
| CTM0101-80B | ||||
| PRODUCT SPECS | ||||
| Model number | CTM0101-80B -20W | CTM0101-80B -25W | CTM0101-80B -30W | |
| LED | Origin | CREE COB (1 PCS) | CREE COB (1 PCS) | CREE COB (1 PCS) |
| Lumens | 20W 1700lm | 25W 2125lm | 30W 2550lm | |
| Beam Angle | 24D/38D | 24D/38D | 24D/38D | |
| Color temperature | 3000K/40000K/5000K | 3000K/40000K/5000K | 3000K/40000K/5000K | |
| Power consumption | 20W | 25W | 30W | |
| PFC | 0.9 | 0.9 | 0.9 | |
| Input voltage | AC85-265V | AC85-265V | AC85-265V | |
| Working temperature | -20~+40 | -20~+40 | -20~+40 | |
| CRI | 80/95 | 80/95 | 80/95 | |
| Dimmable mode | SCR/PWM | SCR/PWM | SCR/PWM | |
| Dimension | φ 225XH190mm | φ 225XH190mm | φ 225XH190mm | |
| Mounting hole | ||||
