Best Price Flojet Water Pump from Manufacture

Specifications

The Flojet BW1000A Bottled Water Dispensing System is designed to pump water from commercially available 3, 5, or 6 gallon water bottles. The system delivers the bottled water under pressure to your AlkaViva water ionizer, or to the water inlet of a refrigerator icemaker, other water tap or just about anything else you might need a fresh supply of water for.

The Flojet BW1000A is an industry standard and is one of the finest pumps on the market at an affordable price. Bottled water companies have sold and rented Flojet BW1000A pumps for years because of their impeccable reputation for quality and service. flojet water pump

 Using 5 Gallon Bottled Water with your Water Ionizer:

This on-demand electric pump will allow you to pump water through your water ionizer from several feet away. All that will be required is a 1/4" hose clamp to be used at the connection between the water ionizer and our brand of Flojet.

You will need to operate the Flojet BW1000A manually when using the dispenser in this way, turning it on and off each time you wish to use your water Ionizer.

 Flojet bottled water dispensing pump system:

Compact size for easy mounting. Automatic pump on/off operation. Automatic shut-off when bottled is empty. Fits a variety of bottles. Easy bottle change. Built-in check valve to prevent back flow. Universal seal cap. UL and CUL

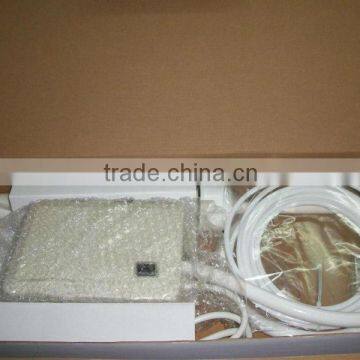

Includes:

Suction wand and hose assembly.

Pump module with On/Off switch.

6 foot cord with plug.

20 feet of 1/4" discharge tube.

Refrigeration fitting.

Universal seal cap: Fits any 3, 5, and 6 gallon plastic water bottle.

Installation and maintenance instructions.

How System works:

When the suction wand is inserted into the water bottle, it activates the float switch on the end of the wand and turns on the pump. This same float switch shuts off the system when the bottle is empty. The wand has a built in back-flow valve that prevents water in the system from flowing back into the bottle, or spilling while changing bottles.

The dispenser system`s pump automatically adjusts the flow and pressure to fill an icemaker or dispense chilled water from a refrigerator door tap, and stops when the icemaker is full or the water valve is closed.

NOTE: The system is quiet but not silent. Just as you can hear your refrigerator, dishwasher, washing machine and dryer running, you will also hear the "humming sound" of the diaphragm pump when it is pumping.

Features:

Float switch for automatic shut-off when bottle is empty

Built-in check valve to prevent back flow

Universal seal cap fits most water containers

Compact size for easy mounting

20 in. (6.1 m) discharge hose included

Easy installation

Specifications:

Max. Flow Rate: 1.0 gpm (3.8 lpm)

Max. Pressure: 40 psi (2.8 bar)

Dimensions: 3.0 H x 5.5 W x 7.5 D inches (7.6 x 14.0 x 19.0 cm)

Voltage 115 or 230 VAC 12 Vdc

Amp Draw: 12 Volt 3.0 Amps. Max.

110 Volt 0.5 Amps. Max.

220 Volt 0.25 Amps. Max.

Cycles: AC models 50/60 Hz

Weight: 2.9 kg

Model Volts Max. Flow Pressure Max.Amps Standard

gpm(lpm) Shut Off Includes 20 feet of 1/4" tube

SFDW1-01-40-01 12V DC 1GPM(3.8LPM) 40PSI(2.8BAR) 3 12 inch lead wires

SFDWA1-01-40-01 110V AC 1GPM(3.8LPM) 40PSI(2.8BAR) 0.5 6 feet cord with plug

SFDWA2-01-40-01 220V DC 1GPM(3.8LPM) 40PSI(2.8BAR) 0.25 6 feet cord with plug
