Horizontal Centrifugal Pump With Electric Motor and Base Plate
- CHINA
- T/T
You May Like
-
BW2005A 230V FLOJET BOTTLED WATER DISPENSER
-
Flojet Water Pump BW1000A Bottled Water Dispensing System
-
New Design Flojet BW1000 Bottled Water Dispensing System (CBW1150 110V-120V,CBW2300 220V-240VAC,CBW1000 6V-48VD
-
Five Gallon Water Bottle Pump Dispenser
-
Best Price Flojet Water Pump From Manufacture
-
Gallon Bottled Water Dispensing Pump System
Product Details
| Brand Name | SAINT | Model Number | ISW65-160 | |
| Theory | Centrifugal Pump | Structure | Single-stage Pump | |
| Usage | Water | Power | Electric | |
| Standard or Nonstandard | Standard | Pressure | High Pressure | |
| Application | Other, Submersible, Water or Similar Liquid |
Product Description
Specifications
High chemical and thermical resistanceSpace saving and robust construction
Suitable for continuous operation

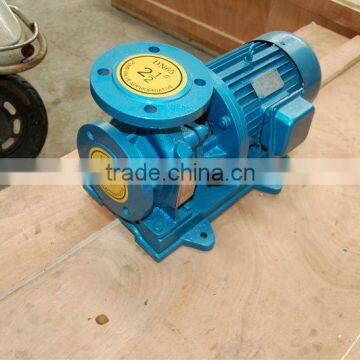

Horizontal Centrifugal Pump is made up of pump,motor and base.Pump includes body,impeller,cover,mechanical seal and other spare parts.Both the body and cover are divided from the back of impeller.Most impellers are equipped with sealing ring.Also,we set a balance hole on the back plate of impeller.Pump is coaxial with motor in no need for correction during installation.Thanks to the antivibration pad,our product can be separated from vibration.To sum up,it is flexible and simple to install our product with a variety of installation methods.
Application: Water, or medium similar to water, Oil and chemical (stainless steel type)
Capacity: up to 1450 m3/h
Diameter Inlet: 15~500 mm
Power range: 0.37~160kW
Head : up to 155 m
Turn Speed: 1450/2900 r/min
Material : Cast ironHT200, stainless steel
Using range: Industry,City water supply and drainage,Agriculture irrigation and drainage,firefighting,Long distance water supply,water circulation,petrifaction,pharmacy,food,mining,textile and machinery industries,etc.
More details can be negotiated.
