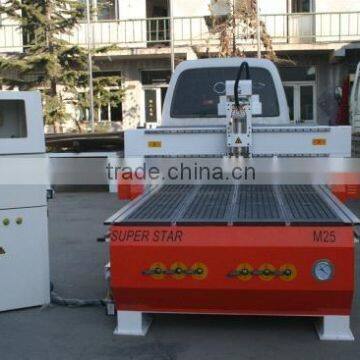

M25 Maquina de grabado en madera CNC Router for woodwork
- 20 Set / Sets per Month
- T/T
You May Like
-
CX-1325 Maquina de grabado en madera CNC Router
-
text
-
cnc marble granite stone engraver machine for cutting and engraving
-
Fiber Laser cutting machine 200W
-
cnc router cnc wood furniture engraving machine, wood cnc router, double heads woodworking cnc router for wood of high quality
-
3D Laser Subsurface Engraving Machine
Product Details
| Condition | New | CNC or Not | CNC | |
| Brand Name | SUPER STAR | Model Number | M25 | |
| Certification | CE ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
configuraciones
Toda la estructura de acero, la orbita de importacion cuadrado, tornillo de bolas para el eje z,
la rueda dentada para el eje X y el eje Y, U disco flash DSP del sistema de control,
software y software Wentai Type3, 4.5kw (teniendo importado) del eje de agua de refrigeracion, mesa de vacio,
no aceite de la bomba de vacio y el sistema colector de polvo con 6 zonas de forma separada de control,
cubierta de polvo, sistema de lubricacion, 10 cuchillas (φ6, φ12.7), 2 boquillas
Características
1. La guía rectilínea cuadradas de la importación,dos líneas de vía de deslizamiento. La torsión de alta esfuerza ,el fuerte corte,la alta frecuencia,la larga vida,puede trabajar por mucho tiempo. 2. La sistema del control DSP con puerto USB, la operación manual hace la operación más fácil,un deseño más amigable.El único principio del presupuesto inteligente,se desarrolla la potencialidad del motor completamente para llevar una alta velocidad de procesamiento.MACH3 de Estados Unidos es una sistema del control nueva.Equipado con rueda de mano,fácil de operar. 3. Seis regiones de la tabla de succión al vacío que puede succionar diversos materiales. 4. El motor y conductor de alta velocidad,dos motores para el eje Z ,trabajando con una velocidad alta. 5. Buena compatibilidad compatible software CAD/CAM,por ejemplo,tipo 3,artcam,JDPaint,proe,UG,etc. Parámetros técnicos
| Recorrido del eje X,Y | 1300×2500mm |
| Recorrido del eje Z | 200mm |
| Tamaño de la plataforma | 1480×3000mm |
| Velocidad máxima de la marcha | 25m/min |
| Precisión de la posición repetida | 0.05mm |
| Estructura de la tabla | Por succión |
| Código | G- Código *,U00*,mmg*,plt |
| Potencia (Husillo no está incluidos) | 1840W |
| Potencia del husillo | 4.5KW/5.5KW agua/viento |
| Velocidad rotatoria del husillo | 0-24000rpm |
| Tensión del trabajo | AC380V/50HZ |
| Modo del conductor | Stepper o servo |
