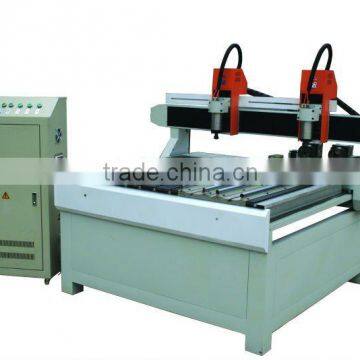

3d Engraving Machine
- Qingdao port China
- T/T
You May Like
-
Mini CNC Router for 3d Carving CX-1200Y
-
4 Axis Cnc 3d Body Statue Carving Machine
-
Eight Heads 4 Axises Wood CNC 3D Engraving Machine Ncstudio Control 4.5KW Delta Servo Motor Square Guide
-
Cnc 3d Wood Cylinder Carving Machine CX1325
-
New Industrial Plasma Cutting Machine
-
CX-1225 Maquina Del Corte Laser
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | Super Star | |
| Model Number | CX-1313 |
Product Description
Specifications
3d engraving machine:1.round guide rail
2.DSP control
3.can engrave statue or body sculpture
4.both engrave 2d and 3d wood
3d engraving machine:
Double rotary axis on table, it can engrave two pieces of cylinder at a time
Processed wood material diameter:100mm
Processed wood material length:1300mm
Flat table can engrave on flat wood, engraving area is 1300*600mm
Features:
1.The spindle are controlled by Software,high automization.
2.High spindle and high efficiency, idle speed can reach up to 8.8 meters/min
3.High power frequency water cooling spindle, main part are all imported,low noise,high power,long lifetime;
4.Double motors driving,high driving force,unique two-rack axises transmission, so it can guarantee no distortion and vibration when it works for long time.
Technical specifications:
Description | CX-1313 |
X,Y working area | 1300*600mm |
Z working area | 150mm |
Processing accuracy | 0.01mm |
Max. Speed | 8800mm/min |
Table structure | Aluminum |
Repositioning accuracy | 0.05mm |
Command | G code*.u00*.mmg*.plt |
Power (spindle is not included) | 1.2KW |
Working voltage | AC220V/50Hz |
Spindle power | 2.2KW |
Spindle rotating speed | 0-24000rpm/min |
Drive motor | Stepper |

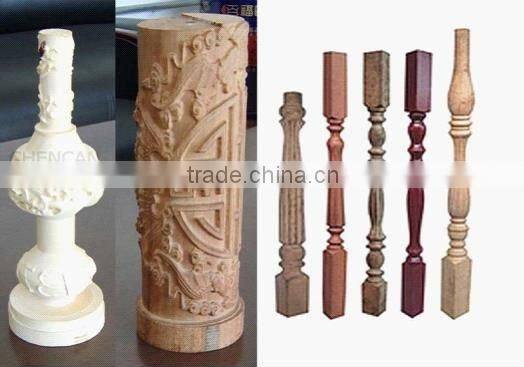

Samples:
