China high quality CX1520 Water Jet Cutting Machine

Specifications

 China high quality CX1520 Water Jet Cutting Machine:

Application:of water jet cutting machine:

Water Jet Cutting Machine is applicable to cutting natural marble, granite, artificial stone, ceramic,

cordierite, Boli, Plastics, Chemical synthetic version, titanium alloy, copper, steel plate, aluminium

sheet, cast iron, ceramic tile, chemical fiber, wood, cloth animals, chemical fiber, leather, Plastics, etc.


Technical specifications: of  Water Jet Cutting Machine:

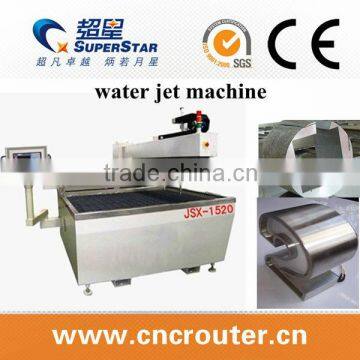

The picture: of water jet cutting machine

Features: of  Water Jet Cutting Machine

1. Adopt imported intensifier pump to pressurize normal tap water to 500Mpa, provide a stable

    pressure 440Mpa within 24 hours.

2. Adopt three-phase 75KW 160L hydraulic stabilizing system,and the maximum displacement

    of accumulator 3.7L/min filter water system,two in one system 5μm water filter.

3. Taiwan HIWIN ball screw with a protective system insures the accuracy of processing.

4. Y axis adopts double driver system, high accuracy, stable working

5. Adopt ball screw and orbits of international bands with high quality; ensure high-precision

    machining,smooth transitions, and a long lifespan

Speed Reference: Water Jet Cutting Machine

Cutting speed is depended on two basic situation of water jet:

1, Working pressure of equipment

2, Sand quality and quantity

If max working pressure is 380MPA, inside diameter of sand pipe is 0.76-1.2mm,

sand quantity is 80mesh, flow is 700-750g/min, then cutting speed of water jet is (mm/min) :

NOTE:

The speed above is speed for cutting through.

Better cutting finish, slower speed.

Samples of  Water Jet Cutting Machine:

Our certification:

Our team and customers:

  Water Jet Cutting Machine

Further infos,pls do not hesitate to contact me,hope to

build cooperation with you.24hours service,

your inquiry will be replied very soon.
