Home > Products > Metal Mould Machine > metal working machinery sheet metal machinery

metal working machinery sheet metal machinery

FOB Price

USD $1 - $10,000 / Set

1 Set(Min.Order)

Port qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	Superstar	Model Number	CX400
Rated Power	1840w	Engraving Speed	8m/min
Main Axle Rotational Speed	24000/rpm	Feeding Height	300mm
Milling Cutter Diameter	3.175/4/6mm	Application	metal
Dimensions	480*480mm	Weight	1200kg
Certification	CE ISO9001 SGS	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

cnc router machine for aluminum
1.imported square linear guide rail
2.water cooling spindle
3.stepper/servo motor

metal cnc router
1.imported square linear guide rail
2.water cooling spindle
3.stepper/servo motor

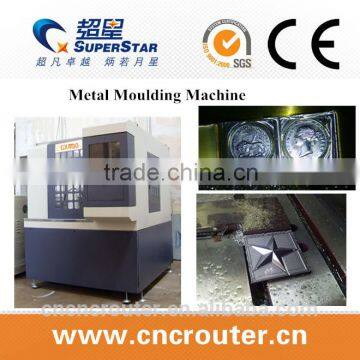

metal mould machine

Application:

Our CNC Metal Engraving Machine helps in efficient engraving on iron, steel, bronze board and aluminum. The CNC Metal Engraving Machine is used for engraving letter and relied designs. We provide the CNC Metal Engraving Machine at reasonable prices. The CNC Metal Engraving Machine is made from good-quality components, which make it durable and performance-oriented.

No.	Name		Parameter	No.	Name	Unit	Parameter
1	Working table size	mm	480*480	9	Working precision	mm	±0.01/300
2	X,Y,Z working area	mm	400400110	10	Positioning precision	mm	0.012
3	Working table loading	kg	95	11	Spindle power	kw	1.5
4	Gantry width	mm	530	12	Drive system		AC servo
5	Machine weight	kg	1100	13	Z height	mm	250
6	Spindle rotating speed	rpm	24000	14	Working table deformation under pressure		<0.03mm(95kg)
7	Max. engraving speed	mm/min	6000	15	A axis rotating angle	Degree	360
8	Machine diamention	mm	110010501600	16	A axis precision		±30
17	Packaging size	mm	165016502200	18	Whole weight	kg	1350

3.Standard configuration

1. HIWIN C3 level precise ball screw made in Taiwan(for three axis)	7. R+W flexible couplings
2. NSK P4 level bearings( for three axis)	8.Splitter made in Taiwan
3. Imported limit sensor(for three axis)	9.Stainless steel protecting hoods( for X/Y axis)
4. HIWIN high precision guide rail( for three axis)	10.High speed precise spindle made in China
5. Panasonic servo motor 400W (four axis)	11.Precise auto aligning device made in Taiwan
6. control system: SYNTEC EZ4	12.Handwheel with four files

our production:

Jinan Jinshengxing Machinery Manufacture Co., Ltd. is a professional company in researching, developing and manufacturing CNC routers. Our company devotes to carving CAD / CAM technology and CNC numerical control technology research and development. We have made great progress in the precise CNC router design theory and craft technology

Delivery TIME: 15 days after receiving the deposit

Payment Terms: T/T 50% in advance, then 50% when you receive the copy of the B/L of the shippment

Packaging: Strong smoke freed wooden box

Delivery and Transport:

1.FOB----The nearest port is Qingdao port,and we can also delivery

the machine to other port according to your request.

2.CIF-------Please tell me what’s the destination port when you need CIF price.

3.If you need others, please tell me and I’m pleasure to do for you.
