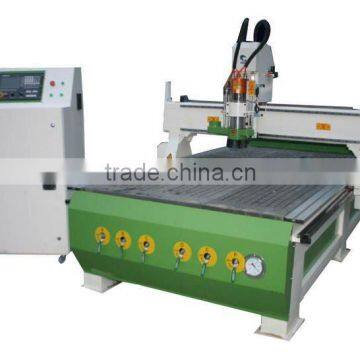

M25 wood- working machine with ATC(fixed back of table)
- 50 Set / Sets per Month
- qingdao or as your request
- T/T
You May Like
-
Hot sale!!! SKM25 cnc router with ATC vacuum system and best price
-
wood cnc router with 9KW atc spindle (8 atc tools in back of the table)
-
1325 cnc wood engraving machine with ce
-
Hot sale 0.05mm precision cnc router with ATC (SKM25)
-
ATC woodworking machine SKM25
-
High quality good price classic furniture cnc woodworking carving machine
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | super star | |
| Model Number | M25H |
Product Description
Specifications
ing area:1300*2500mm2.table surface:vacuum table
3.x,y,z structure:x,y gear wheel,z ball screw
X working area | 1300mm 2000mm |
Y working area | 2500mm 5500mm |
Z working area | 380mm 500mm |
Table size | 1300×2500mm |
Traveling positioning accuracy | ±0.05mm |
Repositioning positioning accuracy | ±0.05mm |
Table surface | By suction |
X Y Z structure | XY gear wheel, Z ball screw |
Max. power consumption(without spindle) | 2.8kw |
Max. Rapid travel rate | 50000mm/min |
Max. working speed | 25000mm/min |
Spindle power motor | 5.5kw |
Spindle speed | 0-24000r/min |
Drive system | Servo |
Working voltage | AC380V/60HZ |
Command | G-code |
Feature:
1. Adopt linear-square orbit, whole machine is welded with seamless steel structure, can bear heavy loading.
2. Ball screw for z axis and gear-wheel for x and y axis
3. TAIWAN LNC control system. Intelligent anti-transgress-process protection system. The function can prevent from crashing when the design zone is beyond the process zone.
4. Vacuum table and dust collector system with 6 zones separately control, auto tool changing system. No oil pump and dust cover.
5. China domestic made 8kw water cooling spindle(optional:8kw HSD Italy air cooling spindle).
6. Auto oiling,8 tools changer, imported servo motors and inverters, 12 cutters and 4 collects.
