Home > Products > New Products > QT 4-15 Block Making Machine Middie Businss

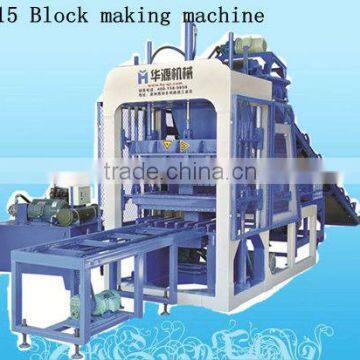

QT 4-15 Block Making Machine Middie Businss
- xiamen
- T/T
You May Like
-
QT6-15hollow Brick Making Machine Philippines
-
Concrete Mixer Block Forming Machine
-
JS500 Fully Automatic Concrete Mixer
-
Curbstone Forming Machine Paving Making MachineHY300T
-
Hollow Brick Machine, Cement Block Making Machine Full Autmatic HYM6-15
-
HYM Low Cost and Full Auto Cement Hollow Block Making Machine
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Cement | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 38000pcs 8 hours | Place of Origin | Fujian, China | |
| Brand Name | HYM | Model Number | QT4-15 | |
| Voltage | 380V | Power | 22.9k | |
| Dimension(L*W*H) | 8200x4350x2700mm | Certification | iso 90001 | |
| Warranty | 1year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
QT 4-15 block making machine middie businssbrick making machine
block making machine
block machine
QT 4-15 block making machine middie businss
brick making machine
block making machine
block machine
Main technical Specifications:
1. It consists of mechanic, electricity and hydraulic in one machine, and it runs automatically in circulation each procedure is interlocked, and the pressure is automatically assigned.
2. Useing intellent PLC control system, PCL touch screen , easy to change mechanical action according to different raw materials.
3. Fault self-diagnosis, comport for remote control guarantees technical support and maintenance.
Raw materials :crushed stone ,sand, cement, etc; many type of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite, ect. .
multiple uses, it can produce all type of standard building blocks by changing mould.
1,Multi-holes block and hollow block .
2,Ceram site heat preservation block.
3,Composite heat preservation concrete block
The above production come with good heat preservation performance, and it meets the new national energy conservation policy.
Cycle Time | 15-20(s) | Total Power | 22(kw) |
Vibration Type | hydraulic or moto vibration | Vibration Frequency | 3800-4500(Times/sub) |
Machine Dimension | 8200×4350×2700(mm) | Pallet Size | 850×560×20(mm) |
Vibration Force | 68KN | Gross Weight | 6200(kg) |
Production/Mould | 4pcs/m (390x190x190mm) 12 pcs/m (240x115x90mm) 24 pcs/m (240x115x53mm) 15 pcs/m (200x100x60mm) | Products/8h | 5236-7680pcs(390x190x190mm) 17280-23040pcs(240x115x90mm) 34560-46080pcs(240x115x53mm 9636-28800pcs (200x100x60mm) |
