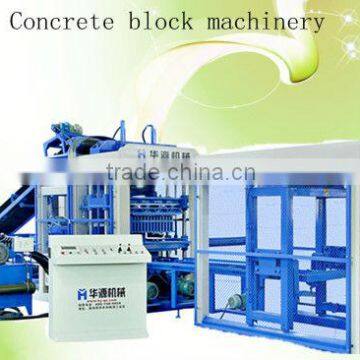

Automatic Concrete Block machine QT8-15

1. Machine frame: adopt high strength steel and special welding technology manufacturing, very strong.

2.Realization of full automatic block production, saves the operation time, provide the production efficiency.

3. Mould head: mechanical and electrical hydraulic synchronous drive, the same height error rarely plate products, good product consistency.

4. Broken arch type cloth device (particularly favorable to porous brick cloth, the more homogeneous)

5. Configuration material feeding device, two fabric to produce various color face or perfect floor tiles.

6. multi-purpose of the machine. change the mold to produce various specifications of hollow block, multi-holes brick, paver brick and planting grass brick, slope protection brick, etc.

7. Control system has the self-locking function, to avoid the misoperation. Can implement remote fault diagnosis through telephone calls, real-time safeguard customer production run smoothly.

Cycle Time

15-20(s)

Total Power

38.1(kw)

Vibration Type

hydraulic vibration

Vibration Force

95KN

Gross Weight

10500(kg)

Vibration Frequency

3800-4500(Times/sub)

Pallet Size

900×840×25(mm)

Machine Size

9800×3600×2800(mm)

Production per Mould

8pcs/M(390x190x190mm)

18pcs/M(240x115x90mm)

39pcs/M(240x115x51mm)

28pcs/M(200x100x60mm)

Production/8hours

11520—15360pcs(390x190x190mm)

29800—39450pcs(240x115x90mm)

56000—75800pcs(240x115x53mm)

40320—53760pcs(200x100x60mm)
