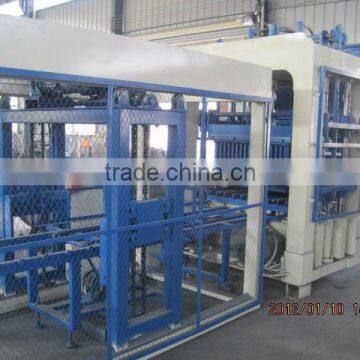

small block machine QT10 new model full-automatic hydraulic block production line
- 20 Set / Sets per Month
- Xiamen China
- T/T
You May Like
-
Low price for QT10 new model full-automatic hydraulic block production line foam concrete block making machine
-
HYM-PL1200 concrete batching machine for concrete block making machine
-
2012 LOWEST PRICE HYM-PL1200 concrete batching machine
-
2012 LOWEST PRICE HYM-PL1200 concrete batching machine batching plant
-
Hot sales 2012 three-hopper concrete batching machine PL800 mobile concrete batching plant
-
PL series concrete batching machine(PL800/PL1200/PL1600) batching plant for sale
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Concrete | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 20 sets per Month | Place of Origin | Fujian, China | |
| Brand Name | HYM | Model Number | HY10-15 full-automatic concrete block making machine | |
| Voltage | 220V 380V | Power | 45.1kw | |
| Dimension(L*W*H) | 11500*4050*2800mm | Certification | ISO9001:2000 | |
| After-sales Service Provided | Overseas service center available |
Product Description
Block Machine1: SIEMENS PLC control and German Frequency small block machine .
2: QT10-15 Fully Automatic block making machine
Concrete Brick making machine,brick making machine,concrete brick machine,concrete block making machine,hollow brick machine,hollow brick making machine
1,Main technical parameters:
| Cycle time: 15-20(s) | Vibration Type: hydraulic or moto |
| Total Power: 45.1kw | Vibration Force: 105(KN) |
| Vibration Frequency: 3800-4500(times/sub) | Gross Weight: 12800(kg) |
| Pallet size : 1100×880×25mm | Machine Size:11500×4050×2800(mm) |
| Rated Pressure: 31.5(mpa) | stacking power:3kw |
| Block Specification : | Production per shift (8 hours) |
| 390×190×190mm 10(pcs) | 14,400-19,200(pcs) |
| 240×115×53mm 51(pcs) | 73,440-97,920(pcs) |
| 240×115×90mm 24(pcs) | 34,560-46,080(pcs) |
| 200×100×60mm 31(pcs) | about 44,640(pcs) |
2,Main Technical Specifications:
A. Intelligence PLC touch screen and pure electrical element (high automatic and easy to operate ) ;
B. Arch breaking type of rapid feeding device (better feeding multi-hole bricks with better uniformity) ;
C. Forming production faster and with higher compactedness ;
D. High-heat treatment special technology (to make the mould more durable and more firm) .
Raw materials :crushed stone ,sand, cement, many types of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite , etc.
Multiple uses. It can produce all types of standard building blocks by changing mould.
A, Multi-holes block and hollow block ;
B, Ceramsite heat preservation block;
C, Composite heat preservation concrete block.
3.Clay Brick Sizes and capacity:
Brick | Sizes | Output/ mould | Output/Shift(8hours) | picture |
Blocks | 390x190x190mm | 10 | 14,400-19,200 |
|
Porous bricks | 240x115x90mm | 24 | 34,560-46,080 |
|
Interlocking block | 200x100x60mm | 31 | About 44,640 |
|
Solid bricks | 240x115x53mm | 51 | 73,440-97,920 |
|
4. Production Flow Introduction
5.Products display:
6.Block and brick Sample:
