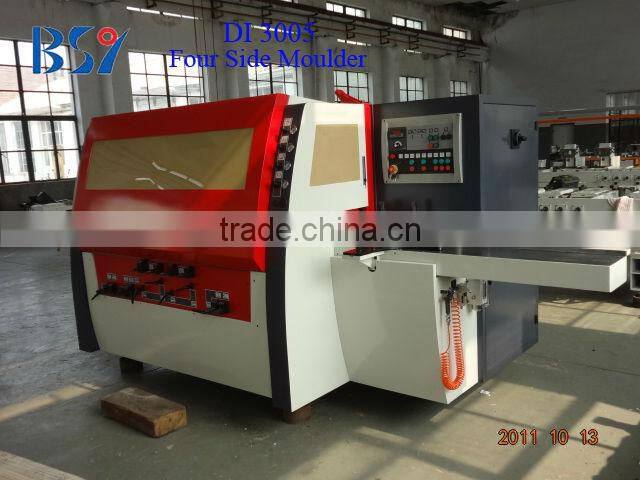

DI-3005 4 Sided Planer

FOB Price

US$ 10,000 - 30,000 / Set

1 Set(Min. Order)

Port qingdao China
Payment TermsT/T L/C D/P D/A Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Four Side Moulder
Place of Origin	Shandong, China	Brand Name	BSY
Model Number	DI-3005	Certification	CE , ISO9001

Product Description

Specifications

1. Processing width: 20-230mm
2. Processing thickness 6-125-150mm

We have 5 spindles, 6 spindle and 7 spindles to match different demands.

Model	DI3005	DI3006	DI3007
Working width (tool diameter 140mm)	20-230mm	20-230mm	20-230mm
Working thickness(tool diameter 140mm)	6-125-150mm	6-125-150mm	6-125-150mm
Spindle speed	6000rpm(reach to 8000)	6000rpm(reach to 8000)	6000rpm(reach to 8000)
Horizontal cutting diameter	125-200	125-200	125-200
Vertical cutting diameter	125-200	125-200	125-200
Blade axle diameter	40/50mm	40/50mm	40/50mm
Feeding speed range	5-60m/min	5-60m/min	5-60m/min
Adjustable distance between feeding table and guide	10mm	10mm	10mm
Horizontal /vertical blade axle adjustable range	22mm	22mm	22mm
Feeding table length	1200mm	1200mm	1200mm
Min. working length	228mm	228mm	228mm
Max. air pressure	6bar	6bar	6bar
Horizontal lower blade axle motor	5.5kw	5.5kw	5.5kw
Left vertical blade axle motor	5.5kw	5.5kw	5.5kw
Right vertical blade axle motor	5.5kw	5.5kw	5.5kw
2nd right vertical blade axle motor			5.5kw
Horizontal upper blade axle motor	7.5kw	7.5kw	7.5kw
2nd upper horizontal blade axle motor		7.5kw	7.5kw
2nd lower horizontal blade axle motor	5.5kw	5.5kw	5.5kw
Lifting motor	1.5kw	1.5kw	1.5kw
Feeding motor	4kw	4kw	4kw
Weight	3.8 t	4.2t	4.4t

Weihai Linares Machinery Co., ltd is a joint venture company of Shandong Baishengyuan Group Co., Ltd and Argentina Linares, focus on solid wood processing machines, main products Four Side Moulders, Rip Saw, Finger Jointer Line, Profile Grinders, Double Side Planer, Surface Planers, Bandsaw ets. With good quality and after sale services, these machines have been sale well on market, export to Asia Europe, America and other areas. If you are interested in our products ,please let me know.
