Multiple Blade Rip Saw MJ162A

Type	Rip Saw		Use	Woodworking
Style	Horizontal		Place of Origin	Shandong, China
Brand Name	Baishengyuan		Model Number	MJ162A

Specifications

Years of manufacturing experience;machines In stock available now;we pay high attention on Reliable after sale service.



Single saw shaft according customer requirement equip saw blades number,

used to proceed multi-rip sawing timbers.

Working thickness                            10~75mm

Max. working width                           200mm

Min. cutting length                            230mm

Feeding speed                                6~24m/min

Saw shaft keyway                            12mm*2

Relative distance between saw web keyways       84mm

Saw shaft diameter                           ø50mm

Sleeve diameter                              ø70mm

Spacer sleeve inside/outside diameter             ø70mm/ ø112mm

Saw shaft speed                              4500r/min

Saw web diameter                            ø255 (10~45), ø305 (10~75)mm

Saw web motor                              22KW (30KW 37KW)

Saw shaft lifting motor                         0.37KW

Feeding motor                                1.5KW

Feeding wheel lifting motor                     0.75KW

Suction hood caliber                           ø120mm (5’) *2

Worktable area                                1836*270mm

Terrain clearance of worktable                    850mm

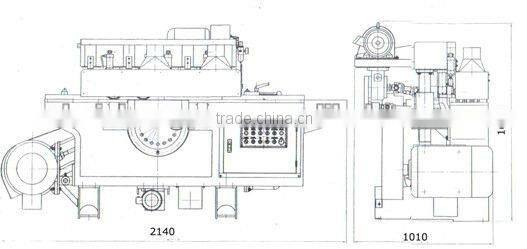

Overall dimensions                             214*101*166cm

Packing measurements                          234*121*196cm

Weight                                       1800kg
