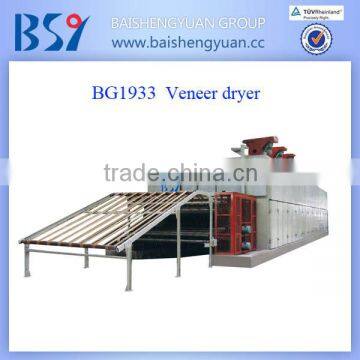

BG1933 Veneer Drying Machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other
Place of Origin	Shandong, China	Brand Name	BSY
Model Number	BG1933	Voltage	according to your requirement
Power(W)	170.5kw	Dimension(LWH)	34260x5400x4430
Weight	95000kg	Certification	ISO9001
Warranty	one year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

The whole machine can be divided into two parts:
heating section and cooling section.

The veneer drying equipment is the main parts in plywood industry, and used to remove moisture from the veneer. The heat medium can be thermo oil and heat steam. The whole machine can be divided into two parts: heating section and cooling section. All the instruction can be operated in switch board. We can design the veneer dryer as customer`s project requirement.

MODEL	BG183	BG183A	BG1332	BG1333
Working width(mm)	2650	2650	2800	2800
Working decks (mm)	2	3	2	3
Length of heating section (mm)	2000×11=22000	2000×13=26000	2000×8=16000	2000×13=26000
Length of cooling section (mm)	2000×1	2000×2	2000×1	2000×1
Transmission speed (m/min)	2-28	2-28	1.5-15	1.5-15
Drying capactiy (m3/h)	2.5-3.2	5-5.8	1.8-2.5	4.8-5.5
Steam consumption(kg/h)	1800-2000	3000-3600	1500-2000	2800-3000
Motor installed capacity (kW)	95.7	190	73.2	168.5
For transmission (kW)	11	33	11	18.5
For ventillation (kW)	7.5×11	11×13	7.5×8	11×13
For cooling (kW)	2.2×1	(3+4)×2	2.2×2	3+4
Overall dimensions ((L×W×H)mm)	28760×4860×2940	39500×5200×4950	23000×4215×2670	4600×5400×4150
Weight (kg)	≈38000	≈88000	≈32000	≈98000

MODEL	BG1932	BG1933A	BG1933B
Working width(mm)	2650 net,2800 roller	2650 net,2800 roller	2650 net,2800 roller
Working decks (mm)	2	3	3
Length of heating section (mm)	2000×10=20000	2000×13=26000	2000×13=26000
Length of cooling section (mm)	2000×1	2000×1	2000×1
Transmission speed (m/min)	2-28 net,1.5-15 roller	2-28 net,1.5-15 roller	3-28 net,1.5-15 roller
Drying capactiy (m3/h)	≈1 net,≈1.2 roller	≈3.2 net,≈1.8 roller	≈1.8 net,≈3.6 roller
Steam consumption(kg/h)	2000	2800	3000
Motor installed capacity (kW)	88.2	163.9	170.5
For transmission (kW)	11	16.5	20.5
For ventillation (kW)	7.5×10	11×13	11×13
For cooling (kW)	1.2×1	2.2×2	3+4
Overall dimensions ((L×W×H)mm)	26760×4260×2940	34260×5400×4550	34260×5400×4430
Weight (kg)	≈40000	≈88000	≈95000

Why do you choose us:

1. Leading manufacturer of woodworking machinery in China, found in 1956. specialize in this field for more than 60 years.

2. Almost 30 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite popular among clients.

3.Specializing in plywood production line and finger joint board production line. We have our own designers to meet any of your requirement.

4. Having own after –sale maintenance center, our engineer can go to overseas for installation and commissioning.

The main productions include: log debarker, log charger, double-spindle veneer peeling lathe, single-spindle veneer peeling lathe, CNC non-spindle veneer peeling lathe, veneer clipper, press machine, veneer dryer, glue spreader, size trimming saw, Four-Side Moulder , Rip Saw, Finger Jointer Line, Profile Grinders, Double Side Planer, Surface Planers, Band saw , sanding machine etc.
