Product Description
Cabinet door making machine
double end tenoner machine

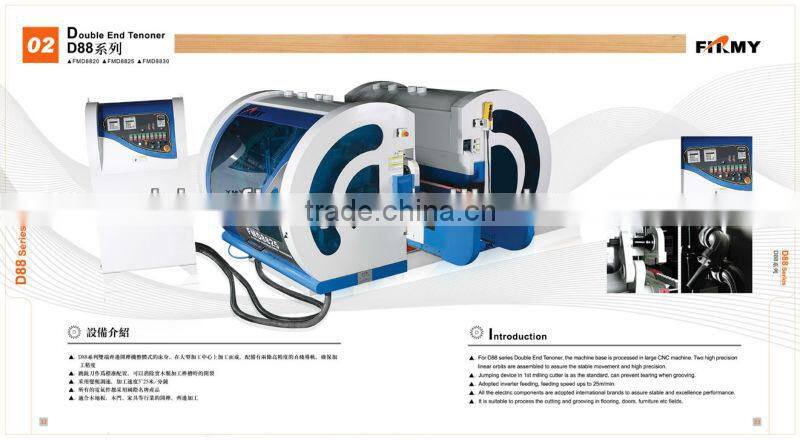

I. Description

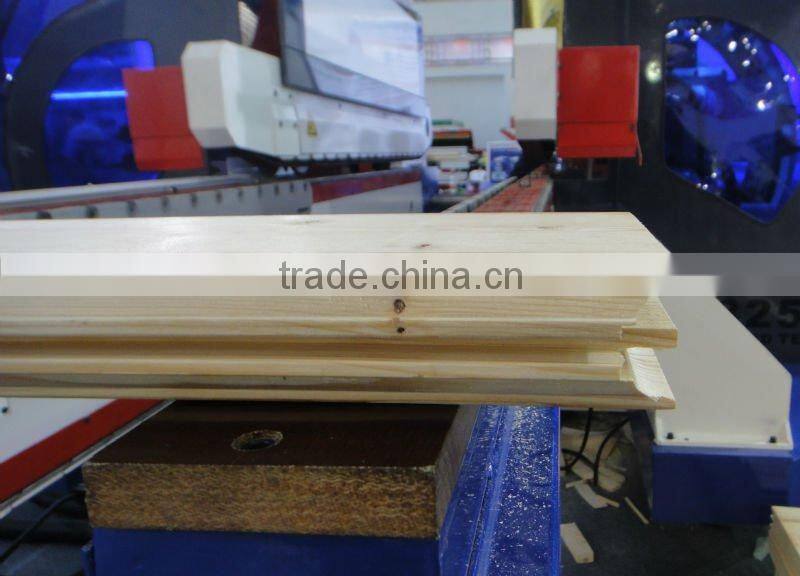

Wood double side tenoner is suitable to process the cutting and grooving in flooring, doors, furniture etc fields. The machine base is processed in large CNC machine. Two high precision linear orbits are assembled to assure the stable movement as well. To keep good performance, machine is widened by servo motor system.
All the electric components are adopted international brands to assure stable and excellence performance. We also use digital controlled system and servo motor for feeding to prevent the shock when starting and stopping the convey belt. This precision location can satisfy to install sided drilling device.
II. Specification:
Specification | Model | ||
FMD8825 | FMD8820 | ||
Working size | Working Length | 250-2500 | 250-2000 |
Working Thickness | 6-80 | ||
OD for tools | Scoring saw | Φ200 | |
Cut-off saw | Φ305 | ||
1st Milling Cutter | Φ125-Φ180 | ||
2nd Milling Cutter | Φ125-Φ180 | ||
ID for tools | Scoring saw | Φ25.4 | |
Cut-offer saw | Φ30 | ||
Milling Cutter | Φ40 | ||
Motor Power | Scoring saw | 2.2kw | |
Cut-offer saw | 7.5kw | ||
1st Milling Cutter | 7.5kw | ||
2nd Milling Cutter | 7.5kw | ||
Feed speed | 5-25m/min | ||
Milling Cutter speed | 8000r/min | ||
Saw speed | 3000r/min | ||
Total Motor | 38kw | 35kw | |
Dust outlet diameter | 100mm*6pc | ||
Weight | 5.7T | 5.4T | |
Size(L*W*H) | 4380*3300*1800 | 3880*3300*1800 | |

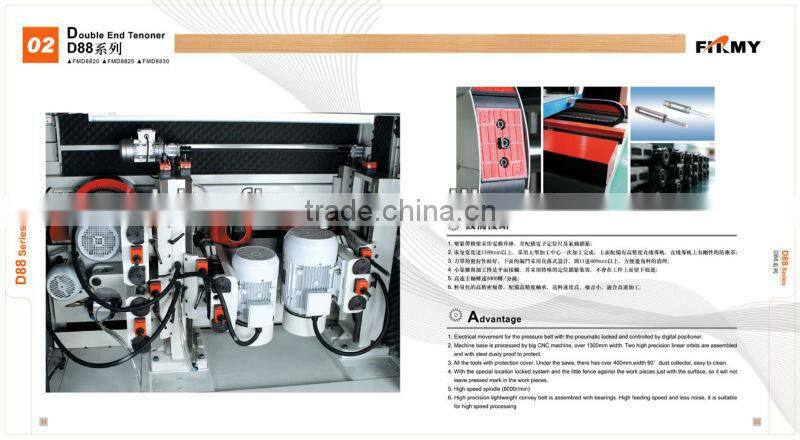

III. Advantage
1. Machine base is over 1300mm width with high precision linear orbits and with steel dusty proof to protect the orbits.
2. High precision lightweight convey belt is assembled with bearings. High feeding speed and less noise, it is suitable for high speed precessing.
3. With the special location locked system and the little fence against the work pieces just with the surface, it will not leave pressed mark in the work pieces.
