Factory Price Male Thread 1/8 High Pressure Mist Nozzle
- Shenzhen
- Credit Card
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | Mebon | |
Condition | New |
Product Description
Factory price male thread 1/8 high pressure mist nozzle
Product Description
- Metal fog spray nozzle consists of brass/SS body with internal SS/ceramic core and stainless steel guide vane (with a leak-proof device).
- The liquid flows at high velocity under the water pressure of 70kg to 120kg, forming centrifugal swirl and spraying very fine hollow droplet.
- It is equipped with TEFLON strainer and the fog droplet sizes are about 30um.
- Widely used in workshop moistening salt spray test,man-made fog and other moistening locations.
- The nozzle saves 10 times or above cost than that of moistening by air.
- Thread size: 10/24,12/24 UNC,1/8',3/16"
- Spray pattern:full cone
- Orifice: stainless steel,ceramics.
- Thread screw:BSPT or NPT.
Performance Data | |||
Fog Nozzle | Orifice Diameter | Operation Pressure | Flow Rate |
FD1 | 0.15mm | 20-70kg/cm | 20-46ml/min |
FD2 | 0.20mm | 49-89ml/min | |
FD3 | 0.30mm | 80-145ml/min | |
FD4 | 0.40mm | 95-178ml/min | |
FD5 | 0.50mm |
130-243ml/min |

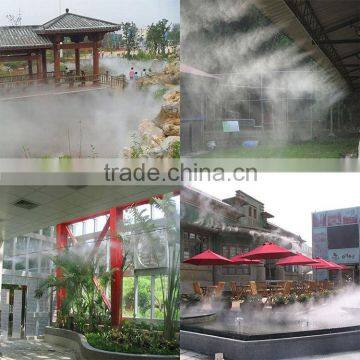

Artificial Fog Effect
Commen Application
1. Wetting & Rust removal
2.Humidify for space
3.Chemical treatment
4.Chemical agent spraying
5.Liquid coating
6.Humidify for tabacco leaf
7.Pill coating
8.Evaporative cooling for flue gas
9.Disinfection & sterilization
10.Parts cooling
11.Fruit wax injection
12.Ceramic tile glazing
13.Humidify for factory
14.Salt fog test
15.Artificial fog
16.Humidify for other place
