Door Trimming Machine Double End Tenoner

Specifications

Door trimming machine

Double end tenoner

INTRODUCTION

1.For D86 series Double End Tenoner, the machine base is processed in large CNC machine.Two high precision linear orbits are assembled to assure the stable movement and high precision.

2.Adopted inverted feeding ,feeding speed ups to 25m/min.

3.All the electric components are adopted international brands to assure stable and excellence performance.

4.It is suitable to process the cutting and grooving in flooring ,doors,furniture ect fields.

ADVANTAGE

1.Electrical movement for the pressure belt with the pneumatic locked and controlled by digital positioner.

2.Machine base is processed by big CNC machine ,over 1300mm width .Two high precision linear orbits are assembled and with steel dusty proof to protect.

3.All the tools with protection cover .Under the saws ,there has over 400mm width 90° dust collector ,easy to clean.

4.With the special location  locked system and the little fence against the work pieces just with the surface, so it will not leave pressed mark in the work pieces.

5.High speed spindle (8000r/min)

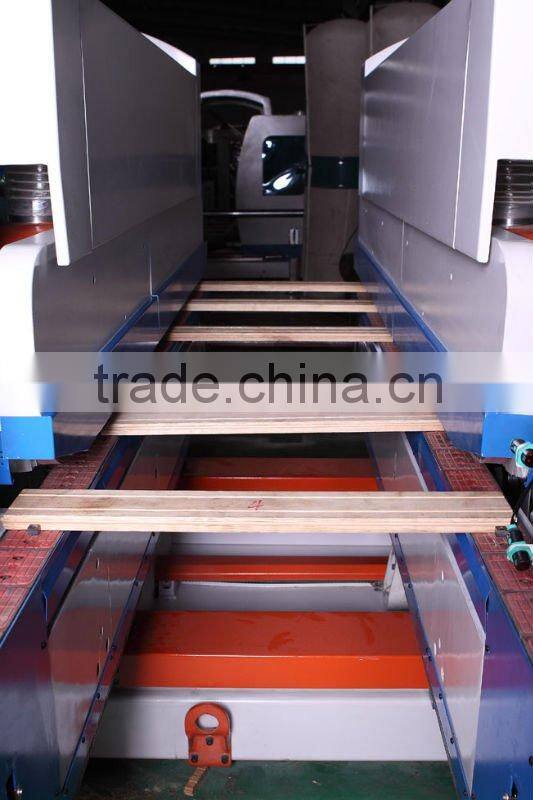

6.High precision lightweight convey belt is assembled with bearing,high feeding speed and less noise ,it is suitable for high speed processing.

)Working length(mm):250-2500

2)Working thickness(mm):6-80

3)OD for tools

4)ID for tools

5)Motor power(KW)

6)Feeding speed:5-30m/min

7)Milling cutter speed:8000r/min

8)Cut-off saw speed:3000r/min

9)Total motor power:30KW

10)Weight:5.5T

11)Size(L x W x H)(mm):4380x3300x1800

OPTIONS

1.Lengthen convey belt extend machine cover 1000mm

2.Adoptde Digital controlled system,servo motor for feeding and widen.

3.Jumping device for soring saw

4.Electrical centralized lubricant system.

5.Inverter motor for cut-off saw,rotation speed can up to 4500r/mine.

6.CE norm
