Product Details
| Place of Origin | Guangdong, China | Brand Name | Mebon | |
| Model Number | ADG | Condition | New |
Product Description

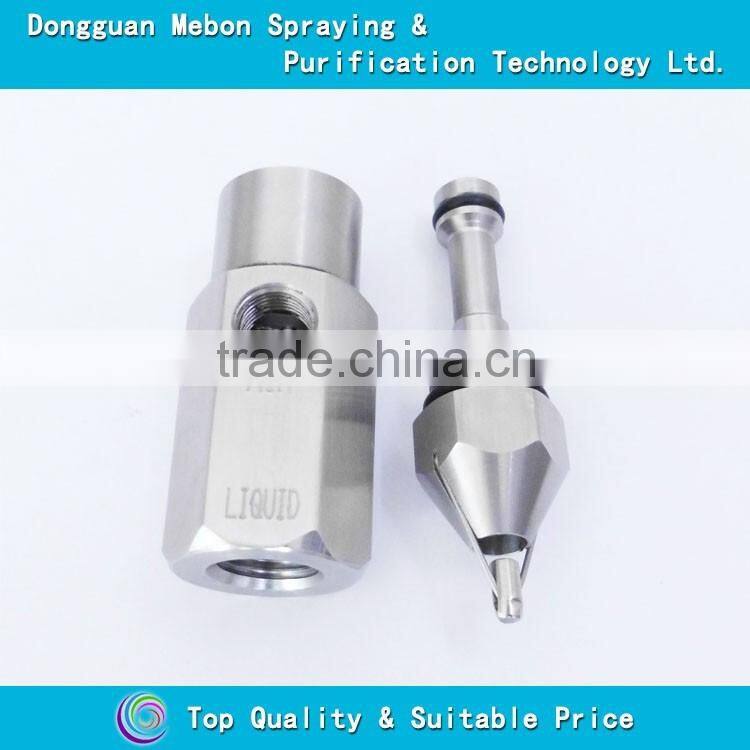

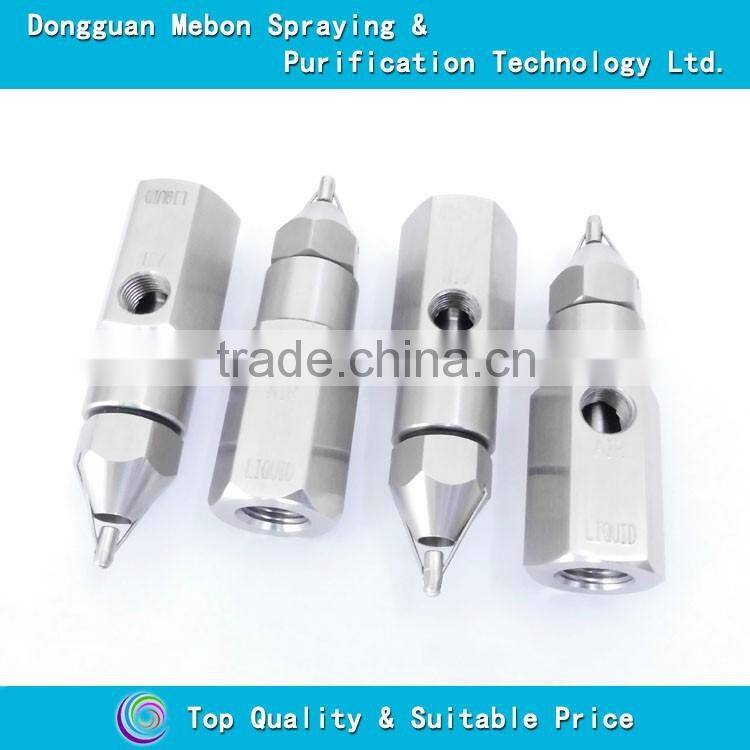

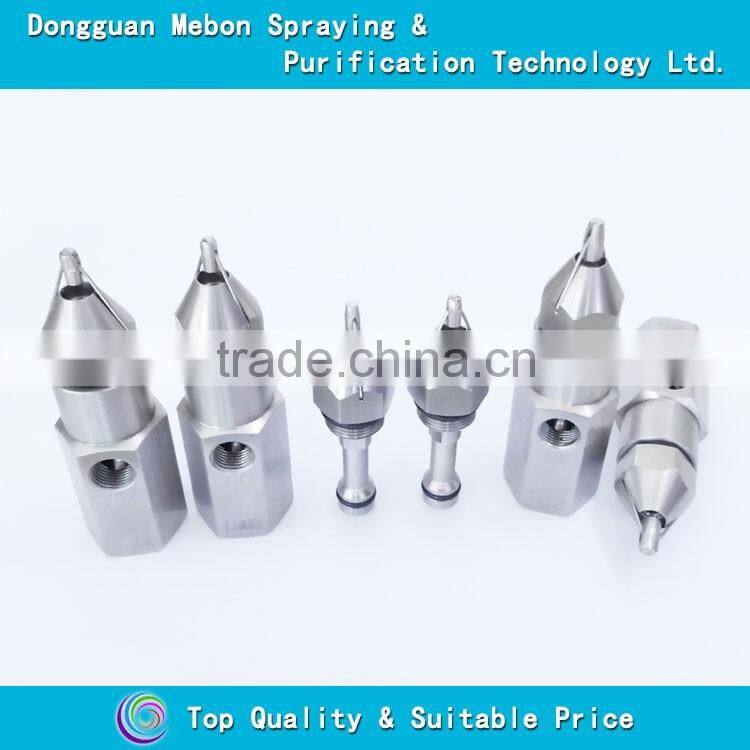

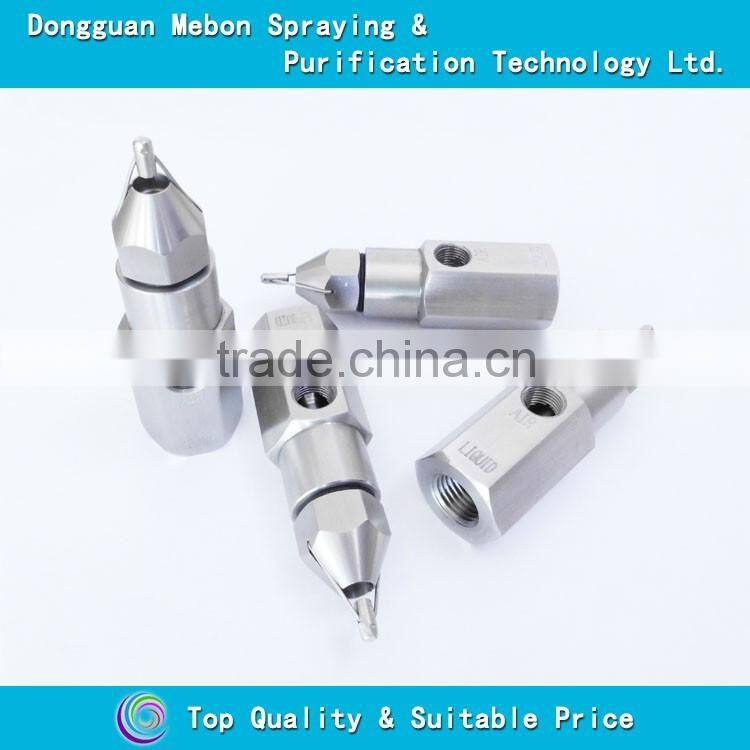

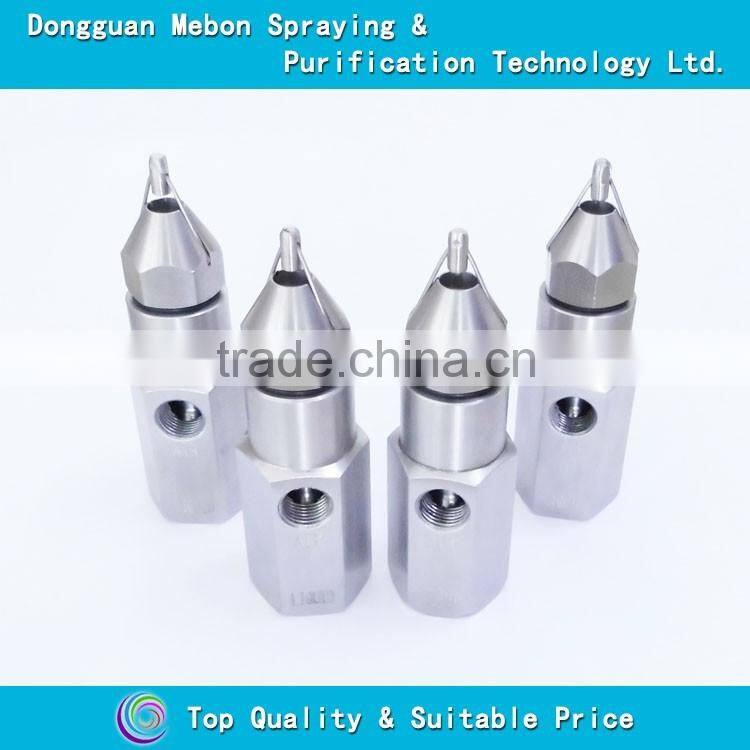

ultrasonic spray atomizing nozzle,stainless steel ultrasonic nozzle
Design feature
1.Stainless steel ultrasonic atomizing nozzles with the ability to creat extremely fine droplets--the so-called "dry fog", with droplets size 1-10 Microns.
2.The mechanical ultrasonic nozzle has a carefully designed resonator to produce high frequency wave. Compressed air passes through the nozzle's inner bore through a convergent/divergent section at high velocities and expands into a resonator cavity where it is reflected back to complement and amplify the primary shock wave.
The result is an intensified field of sonic energy focused between the nozzle body and the resonator cap. Any liquid capable of being pumped into the shock wave is vigorously sheared into fine droplets by the acoustic field. Air bypassing the resonator carries the atomized droplets downstream in a soft plume shaped spray.
3.Application
Dry fog nozzle have proven to significantly reduce fugitive dust from a variety of material handling points, including conveyor transfer points, trippers, reclaimers, crushers, screens, truck dumps, railcar loading/unloading, and ash silo discharge chutes.
Categories | ADG 80° | ADG 30° | ADG 60° |
Gas pressure | 5.2bar | 3.5bar | 5.2bar |
Water pressure | 1.5bar | 0.6bar | 1.2bar |
Gas consumption | 115L/Min | 260L/Min | 240L/Min |
Water consumption | 7.1L/Hr | 45L/Hr | 20L/Hr |
Atomizing granularity | 3-6microns | 4-10microns | 7-10microns |
Gas filtration demand | <40microns | <40microns | <40microns |
Water filtration demand | <50microns | <50microns | <50microns |
