Manufacture 30w Dimmable Led Driver Supplier
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | UT | |
| Model Number | UTL-30W48V625A | Output Power | 51 - 100W | |
| Output Type | Dual | Input Voltage | Other, 170-260v | |
| Output Voltage | 12v | Output Frequency | less than 150mv | |
| Output Current | 2.5A |
Product Description
Specifications
1.manufacture 30w dimmable led driver supplier2.led power driver
nstant voltage of constant voltage led power supply
manufacture 30w dimmable led driver supplier
30W led power supply
led power driver
constant voltage of constant voltage led power supply
Applications]
LED Signage / Channel Letter
LED Architectural Lighting
LED Commercial Industrial Lighting
LED General Luminaire
[Features]
Available Constant Current, or Constant Voltage
Suitable For Dry, Damp Locations, Meet IP66.
Convection Cooled in Plastic Housing.
RoHS Compliant.
Three Years Warranty.
[Specifications]
AC input range | 90-264Vac/ 0.5A /50-60Hz | Operation temp | -30°C - +50°C,Tc:90°C |
Input inrush current | <10A/110Vac <20A/230Vac | Storage temp | -40°C - +85°C |
Power factor | >0.95 at full load,115Vac/230Vac | Safety | UL1310 Class 2. CE. CCC |
Efficiency | 85% Typical | Dimension | L115*W45*H30 |
Protection | OCP. OVP. SCP-Auto recovery | Weight | 142g Typical |
[Model Listing]
CONSTANT CURRENT | CONSTANT VOITAGE | ||||||
MODEL | Vo | Io | W | MODEL | Vo | Io | W |
UTL-30W3063V330A | 30-63V | 330mA | 30W | UTL-30W48V625A | 48V | 625mA | 30W |
UTL-30W2652V650A | 26-52V | 650mA | `30W | UTL-30W36V833A | 36V | 833mA | `30W |
UTL-30W1836V680A | 18-36V | 680mA | 30W | UTL-30W24V1250A | 24V | 1250mA | 30W |
UTL-30W1224V1110A | 12-24V | 1110mA | 30W | UTL-30W12V2500A | 12V | 2500mA | 30W |
similar products:
factory

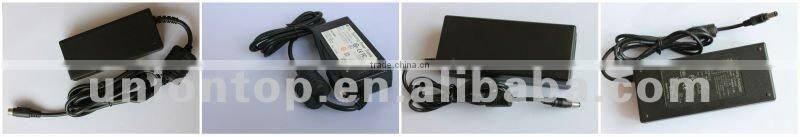

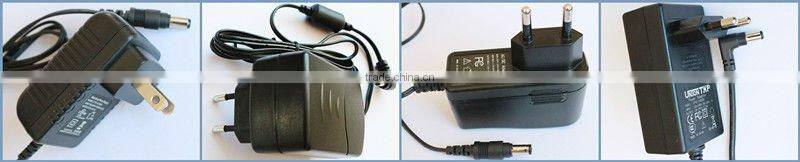

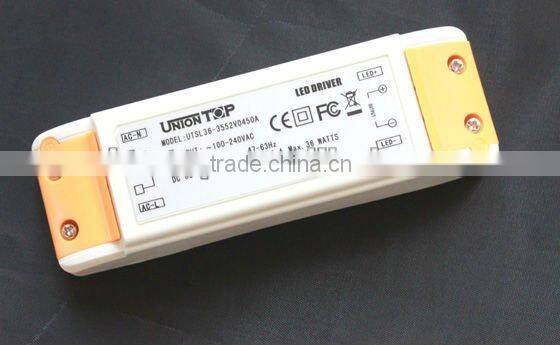

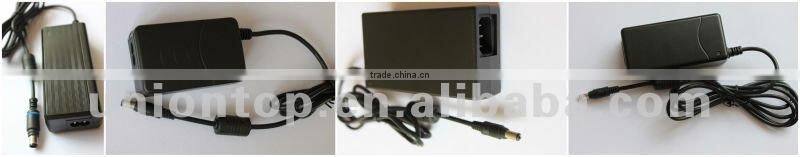

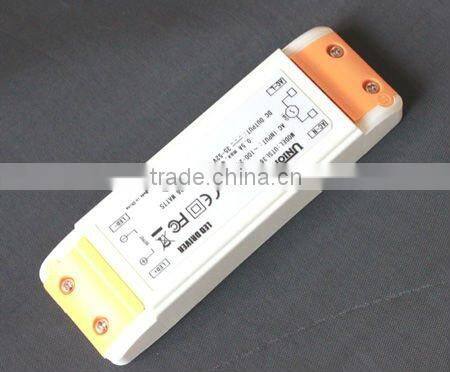

product picture
