Home > Products > Special Purpose > CNC Valve Grinder From China Manufacturer Grinder

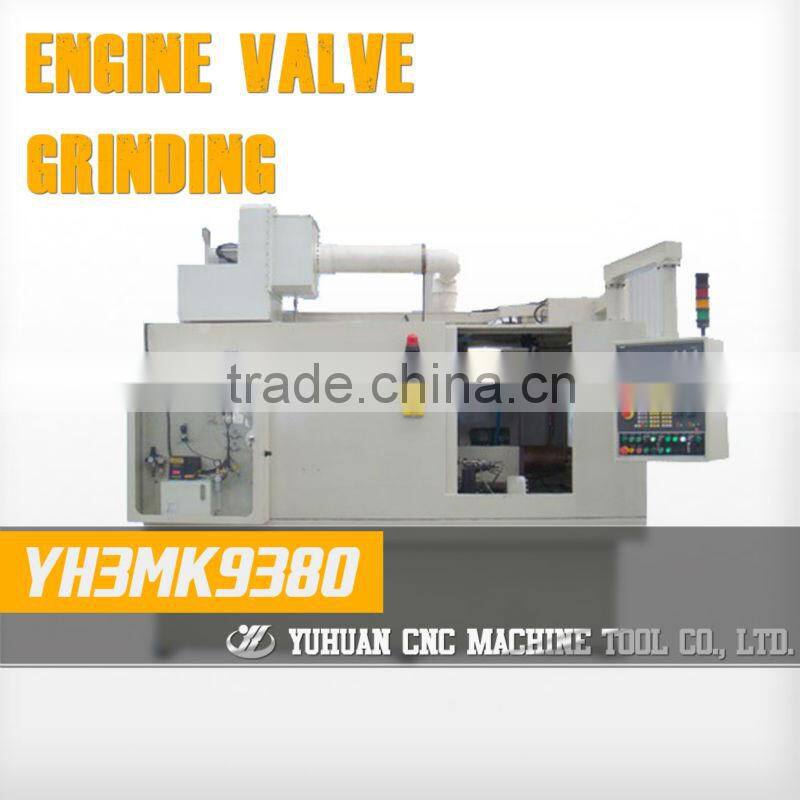

CNC Valve Grinder From China Manufacturer Grinder
- Shenzhen Guangzhou Shanghai etc.
You May Like
-
Hot Sale Low Cost Special-use CNC Crankshaft Grinder Machine
-
Factory Manufacturing Best Polishing Machine With Low Price
-
High Precision Universal Cylindrical Grinding Machine
-
Special Purpose Valve Grinding Machine Made in China
-
Professional Automatic GLASS WASHING Machinery Manufacturer
-
Polishing Machine for Tempered Glass Machine in China
Product Details
| Condition | New | Type | Cylindrical Grinding Machine | |
| CNC or Not | CNC | Max. Grinding Diameter | 80mm | |
| Max. Grinding Length | 250mm | Place of Origin | Hunan, China | |
| Brand Name | YUHUAN | Model Number | YH3MK9380 | |
| Voltage | Customized | Power(W) | 1.1kw | |
| Dimension(L*W*H) | 2900x2700x1900mm | Weight | 10000kg | |
| Certification | ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Technical characters:
1. Germany's Siemens (SIEMENS) 840D CNC system.
2. Wheel spindle adopts high rigidity and precision electrical spindle which is supported by hydro-dynamic-static bearings. The built-in synchronous motor is inside the spindle.
3. The headstock spindle is equipped with self-developed electrical spindle supported by the hydro-dynamic-static bearing, with the Siemens servo motor.
4 .The flange disc can be installed both CBN wheel and ordinary grinding wheel.
Specifications:
Item | Unit | Spec. |
Parts diameter | mm | Φ20 - Φ80 |
Parts length | mm | 80-250 |
CBN Wheel size | mm | Φ500 × 203.2 × 30 |
Conventional wheel size | mm | Φ610 × 203.2 × 25-50 |
CBN wheel linear velocity | m/s | ≤100 |
Conventional wheel linear velocity | m/s | ≤60 Constant linear velocity |
Parts spindle rotate speed | rpm | 200-3000 |
Wheel and parts spindles feed speed | m/min | ≤36 |
Slide stroke of wheel and parts spindles feed | mm | 300 |
Total weight | Kg | 10000 |
Overall dimension | mm | 2900×2700×1900 |
Contact Us
- Yuhuan CNC Machine Tool Co., Ltd.
- Contact nameSimon Xie Chat Now
- Phone86-731-83201588
- Address2nd Wei Rd., Liuyang Mfg. Industrial Park, Changsha, Hunan
