China Supplier Milling Machine for Sale
- Shenzhen Guangzhou Shanghai etc.
You May Like
Product Details
| Condition | New | Type | Surface Grinding Machine | |
| CNC or Not | CNC | Max. Grinding Diameter | 280mm | |
| Place of Origin | Hunan, China | Brand Name | YUHUAN | |
| Model Number | YHM77110 | Voltage | 380V 50Hz | |
| Power(W) | 15Kw | Dimension(L*W*H) | 2500*2000*3000mm | |
| Weight | 9000kg | Certification | ISO9001:2008 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Main purpose

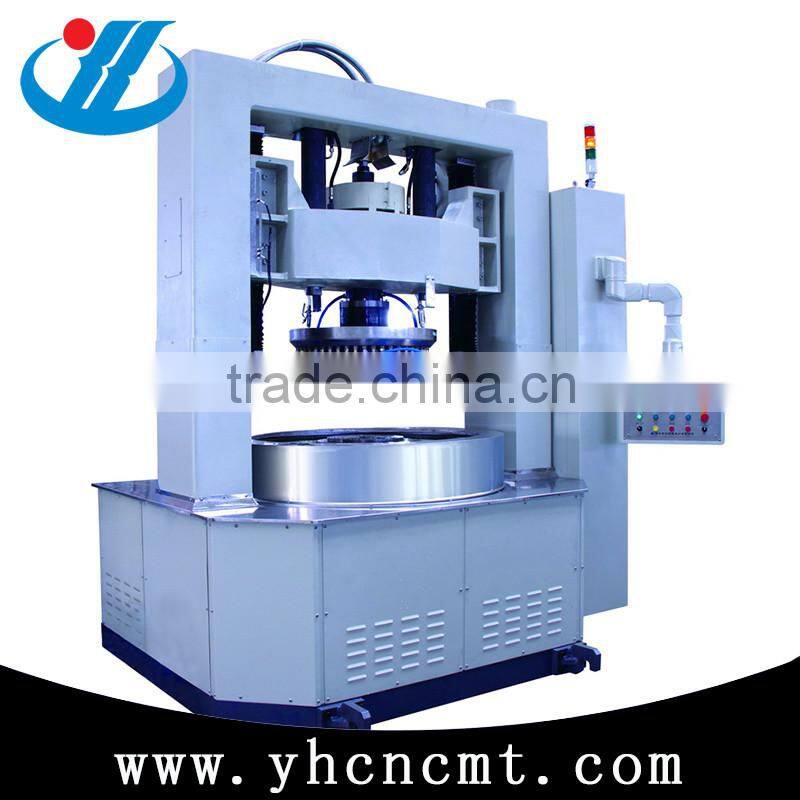

YHM77110 high precision vertical double-side surface polishing/lapping for sapphire glass
This equipment is mainly used for grinding and polishing both sides of the parallel surface of hard brittle nonmetal parts and thin metal, such as sapphire glass, valve plate, friction plate, oil pump blades etc.
Technical characters
A) It uses Gantry structure, with good stability and strong rigidity.
B) Maximum pressure is 1500 kg, with double oil cylinder, precisely control of pressure by electro-hydraulic proportional valve.
C) Upper tray adopts 304 stainless steel, strong corrosion resistance.
D) Both the upper and lower plates are equipped with cooling-heating structure, The surface temperature is controllable.
E) The speed of the sun gear, inner gear ring, the upper and lower plates can be adjusted independently, and the overall speed can match each other.
F) The machine is compact in size, space saving.
Item | Unit | Spec. |
Size of upper plate(OD*ID*T) | mm | φ1070×φ495×φ45 |
Size of lower plate(OD*ID*T) | mm | φ1070×φ495×φ45 |
Size of dressing wheel 4 pcs | Thickness=δ=20 diamond modify wheel=δ=25 | |
Pin gear | outer diameter φ327.5mm Z=64 | |
planet wheel 7 pcs | thickness size according to the thickness of workpiece. | |
Min. thickness of workpiece | mm | 0.6 |
Max size of work piece | mm | φ280 diagonal |
The precision of processed piece | mm | The precision of processed piece: single flatness and parallelism is within 0.006mm whole workpiece is within 0.008mm. workpiece with dia 50mm |
The roughness of work piece surface | no larger than Ra0.15 m polishing workpiece no larger than Ra0.125 m. | |
Flatness of upper and lower lapping plate | 0.035 | |
Vibration of lower lapping plate | 0.03 | |
The lower grinding disc speed | 10-80rpm stepless regulation | |
The upper grinding disc speed | 8-50rpm stepless | |
The sun wheel speed | 5-35rpm stepless | |
Gear speed | 3-35rpm stepless | |
The motor of lower plate | 15Kw rated speed 1440 rpm | |
The motor of upper plate | 11Kw rated speed 1440 rpm | |
The motor of sun wheel and inner gear | 3Kw rated speed 1430rpm | |
Overall dimension L*W*H | mm | 2500×2000×3000 |
Total weight | kg | 9000 |
Our company has modern production workshop, Complex efficient grinding Laboratory , Computer Design Studio , has a variety of testing instruments and equipment over 30 sets of experimental facilities , a variety of processing equipment over 60 sets .
1.Fumigated wooden packages with IPPC stamp.
2.Special packing requirements available.
The R&D team has about over 50 engineers, occupied 20% of total staffs. Includes 19 SenierMechanical engineers( 4with doctor’s degree,8 with master’s degree),7 Senierelectrical engineers,5 CNC soft engineers
- The workshop and office area covers 20K Sqmeters.
- With over 270 staffs, including over 50 R&D technical engineers.
- Main products output more than 1000 sets per year.
Our products are widely used in automotive, IT electronic, military, and aerospace, shipbuilding, bearings,seals, household appliances, and other key areas of national economy.
Our products have been in great demand by more than twenty provinces including Taiwan all around China, and Vietnam, Portugal, Russia, Kenya, Brazil and other countries. We have obtained high prestige from our customers for the high quality products, satisfactory after-sales services and competitive price.
Our R & D team establish a long - term partnership with National University of Defense Technology , Dalian University of Technology , Hunan University , Central South University , and other renowned institutions . Yuhuan is also research base for Hunan University’s doctoral student , get 5—9 patents per year .
- has got 36 related patents
- A certificate of international standard products in 2005
- has passed ISO9001 : 2000 international quality system certification, has estabished corporate product standards
3. We will offer free the training for machine’s management ,operation , maintenance to user’s related people.
Please feel free to contact us,we will reply within 24h!
We want to know:
How much the laser power you need
What materials do you need to process
The Cutting size and thickness
