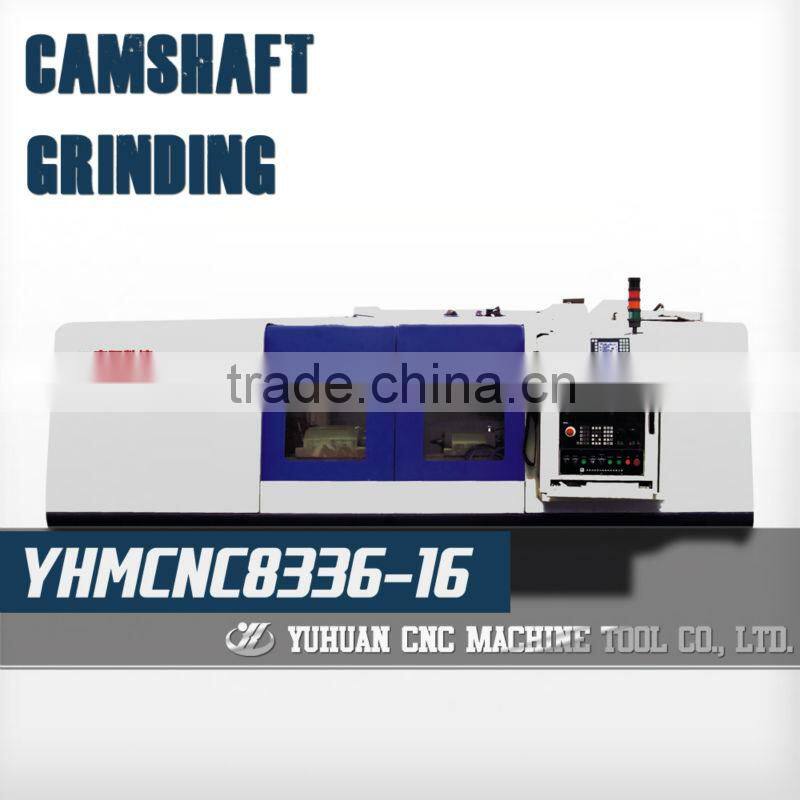

Camshaft Manufacturing Machine Camshaft Grinding Machine
- Shenzhen Guangzhou Shanghai etc.
You May Like
-
High Quality Industrial Robot/robot Arm/robot Manipulators
-
China Supplier Manufacturing Machine Polishing Machine
-
Wholesale China Auto-tool Cnc Milling Machine for Sale
-
Factory Price Machine Grinding Machine Cnc Milling Machine
-
Factory Price Double End Milling Machine From China
-
Lower Price Cnc Machine With High Working Precision and Effect
Product Details
| Condition | New | Type | Cylindrical Grinding Machine | |
| CNC or Not | CNC | Max. Grinding Diameter | 200mm | |
| Max. Grinding Length | 1600mm | Place of Origin | Hunan, China | |
| Brand Name | YUHUAN | Model Number | YHMCNC8336-16 | |
| Voltage | Customized | Power(W) | 65kw | |
| Dimension(L*W*H) | 4600x2600x1900mm | Weight | 15000kg | |
| Certification | ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Technical characters:
1. Adopts Germany's Siemens 840D CNC system.
2. Adopts high rigidity , high-precision electric hybridbearing spindle.
3. Thewheel frame adopts the linear motor-driven movement to achieve zero transmission,and high acceleration.
4. The longitudinal and transverse feed of the wheel frameis a combination with a cross rail, which saves space and improve operationalefficiency.
5. Adopts CBN grinding wheel .The wheel dresser adopts electricspindle with diamond wheel.
6. The wheel spindle uses the built-in online dynamicbalance.
7. Thehead and tailstock spindle adopts hydrostatic bearings.
8. TheAmerican Aiello treasure (AROBOTECH) center frame to match is available to choose.
Specifications:
Item | Unit | Spec. |
Maximum length of Workpiece | mm | 1600 |
Maximum diameter of Workpiece | mm | 200 |
Maximum Weight of Workpiece | kg | 150 |
Maximum lift for cam | mm | 20 |
CBN grinding Wheel diameter | mm | 500 |
Wheel speed (constant speed) | m/s | 120/80 |
Maximum speed of the workpiece | rpm | 200 |
Base circle diameter error | mm | ±0.02 |
Run-out between base circle and neighboring main journal | mm | 0.015 |
Cam phase angle deviation | ±10 | |
Full lift error | mm | ±0.025 |
Maximum neighboring lift error of cam per degree | mm | 0.005 |
Surface roughness | µm | Ra≤0.4 |
Overall dimensions | mm | 4600 × 2600 × 1900 |
Total machine weight | kg | 15000 |

Our company has modern production workshop, Complex efficient grinding Laboratory , Computer Design Studio , has a variety of testing instruments and equipment over 30 sets of experimental facilities , a variety of processing equipment over 60 sets .
Processed workpieces for grinder

Our R & D team establish a long - term partnership with National University of Defense Technology , Dalian University of Technology , Hunan University , Central South University , and other renowned institutions . Yuhuan is also research base for Hunan University’s doctoral student , get 5—9 patents per year .
1.has got 36 related patents
2.A certificate of international standard products in 2005
3.has passed ISO9001 : 2000 international quality system certification, has estabished corporate product standards
3. We will offer free the training for machine’s management ,operation , maintenance to user’s related people.
Please feel free to contact us,we will reply within 24h!
We want to know:
How much the laser power you need
What materials do you need to process
The Cutting size and thickness
