YHDM580B High Precision Vertical Double Side Surface Grinding Machine

Specifications

Simultaneously grinding the two parallel side surfaces of the workpiece that is no matter made of metal or nonmetal material.

Main purpose
It's designd for grinding parts with two parallel grinding wheels simultaneously. Various high precision and thin parts with parallel side surfaces, no matter they are made in metal or nonmetal material, can be processed. Such as bearing, valve,seal, oil pump vane, piston ring,ceramics,etc.

Technical characters:
1. CNC system chooses Mitsubishi E60 withfriendly interactive interface and reliable performance.
2. The parts’ processingfor the upper and lower surfaces is simultaneous with high precision, and without assisted positioning ( such as disks )
3. The program about the double disc grinding and wheel dressing control makes itto get high precision grinding.
4. Wheel head feed adopts precise ball screwunit. Feeding scale value: 0.001 mm.
5. Wheel head spindle is driven byconverter, 150-950r/min.
6. The motor of the feeding carrier adoptsconverter control; the speed is 1-10rpm.
7. Filtered by magnetic and paper tapetwo steps, the coolant recycle after oil temperature controll er.
8. Adopt hinged carrier plate mechanism(Patent No:ZL200820052659.1), which is easy to open to make aconvenient change and dressing of the grinding wheel..
9. Themachine body adopts casting boxlike structure with good shock absorption andreliable rigidity and thermal stability; Wheel heads spindle are set byvertical configuration.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

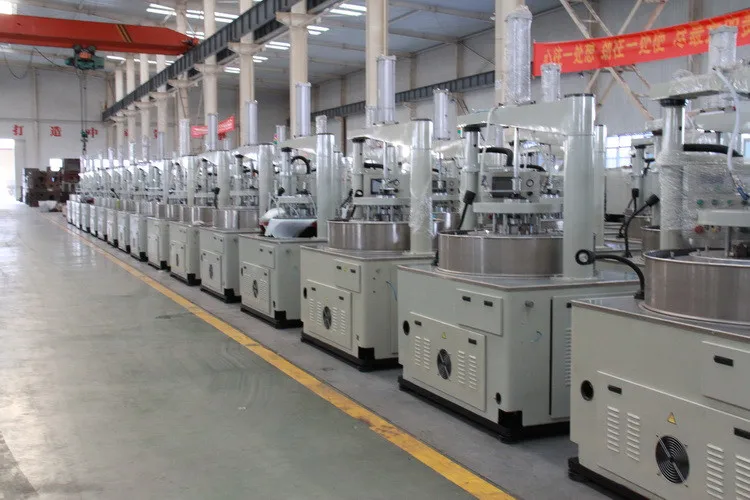

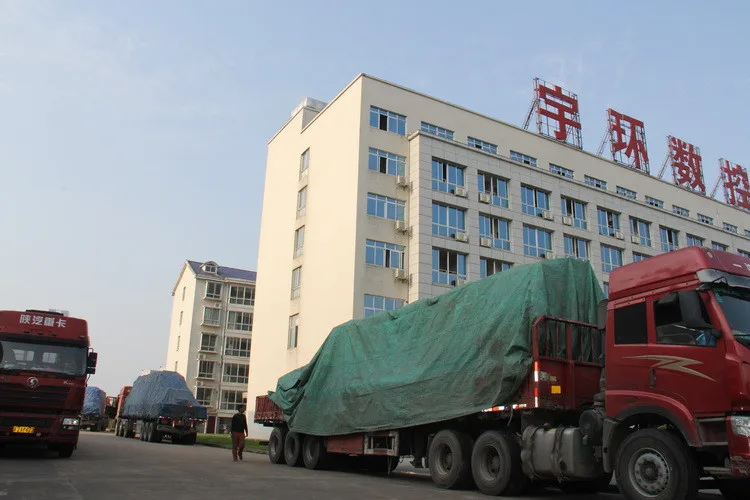

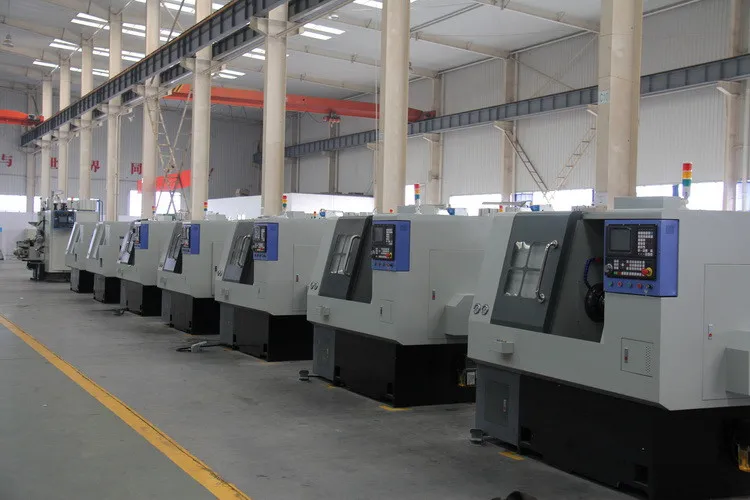

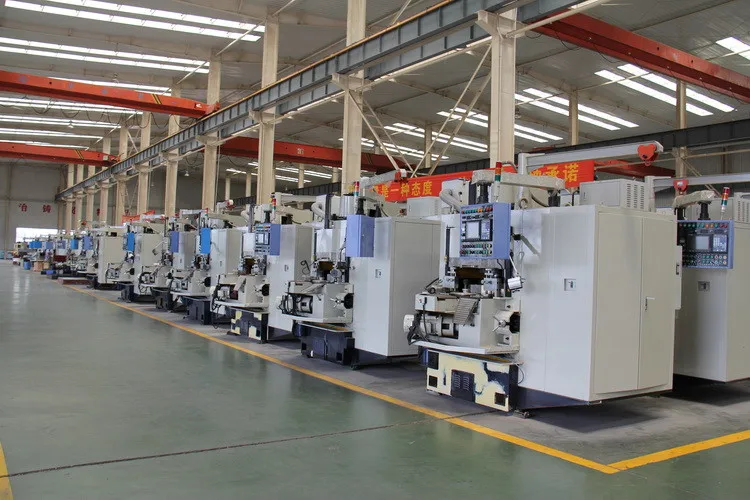

Yuhuan CNC Machine Tool Co.,Ltd is a national high-tech enterprise which is specialized in R&D,Manufacture,and Sales of precision and high-efficiency CNC grinder，industry robot, and intelligent equipment. Our products have been sold to more than twenty provinces within China and other countries such as U.S, Russia, Brazil , Mexico, India, Korea, South-east Asia countries etc.

1. Online Technical Service Support Provided
2. Technical Files Provided

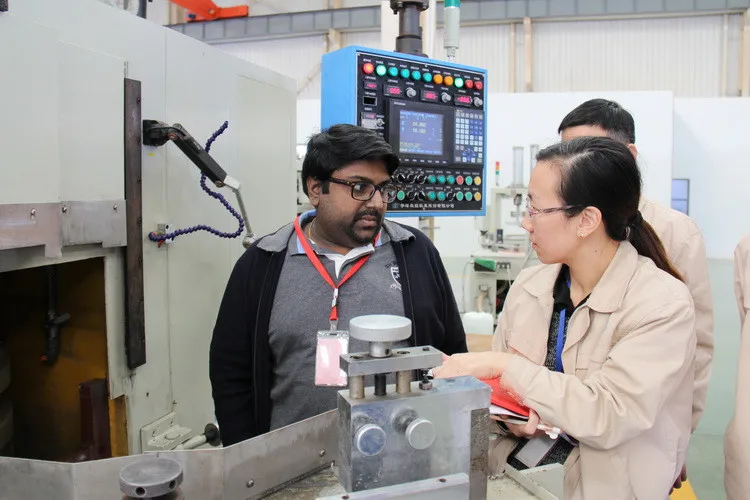

3. Training On-site Provided
4. Spare Parts Repair and Replacement Provided

Please feel free to contact us,we will reply within 24h!
