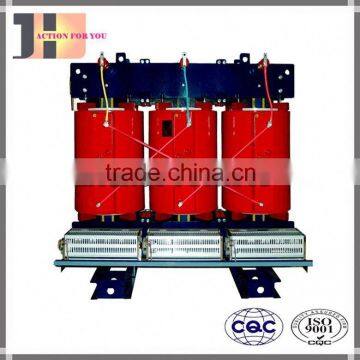

110V 12V Dry Type Toroidal Isolation Hifi Amplifier Power Transformer Dry type transformer 10 kv SCB(10)
- 1000 Set / Sets per Month
- Fangcheng Port Guangzhou Port Shanghai Port
- T/T L/C D/P D/A Credit Card
You May Like
-
SC(B)-9 Resin Insulation Dry-type Power Transformer Dry type transformer 10 kv SCB(10)
-
S9/S11-M three phase 11kv 22kv 33kv electric power transformer electrical transformer
-
Ningbo Fengtai Power Inductor Bobbin 11kv 33kv Power Transformers Step Down Transformer 110v 220v
-
Low price 11KV S-9 Series Power Transformer,11kv 33kv power transformer
-
Distribution transformer 1250kva 11kv 22KV 33KV 35KV to 400V three phase transformer
-
11kv 22kv 33kv distribution transformer 100 KVA
Product Details
Brand Name | JOYHOOD | Model Number | SC10-xx/10 | |
Usage | Power | Phase | Three |
Product Description
keywords has the characteristic of anti-flaming,
anti-explosion, damp-proof, dust proof. The adoption of integral casting coil structure makes it high mechanical
strength, small partial discharge capacity, High Reliability. This product also has the advantages of safety,
energy saving, environmental protection, and maintenance free. It can be installed in moist and dirty
environment. It is suitable for airport, station, wharf, the subway, power plant, substation, hospital, hotel,
business center, sports venue, high-rise building, residential area and industrial and mining enterprise etc.
Model | Nominal Capacity KVA | No-load losses W | load losses W(120°C) | No- | Impedance %(120°C) | Sound level dB | Weight |
load current% | Kg | ||||||
SC10-30/10 | 30 | 190 | 705 | 2.5 | 4 | 42 | 440 |
SC10-50/10 | 50 | 270 | 990 | 2.3 | 4 | 42 | 575 |
SC10-80/10 | 80 | 370 | 1370 | 2.1 | 4 | 42 | 620 |
SC10-100/10 | 100 | 400 | 1570 | 1.9 | 4 | 42 | 830 |
SC10-125/10 | 125 | 470 | 1840 | 1.7 | 4 | 43 | 940 |
SC10-160/10 | 160 | 545 | 2120 | 1.7 | 4 | 43 | 1100 |
SC10-200/10 | 200 | 625 | 2520 | 1.6 | 4 | 43 | 1245 |
SC10-250/10 | 250 | 720 | 2750 | 1.6 | 4 | 43 | 1415 |
SC10-315/10 | 315 | 880 | 3460 | 1.4 | 4 | 45 | 1450 |
SC10-400/10 | 400 | 975 | 3980 | 1.4 | 4 | 45 | 1655 |
SC10-500/10 | 500 | 1160 | 4880 | 1.4 | 4 | 46 | 1945 |
SC10-630/10 | 630 | 1340 | 5870 | 1.2 | 4 | 46 | 2440 |
SC10-630/10 | 630 | 1290 | 5950 | 1.2 | 6 | 46 | 2475 |
SC10-800/10 | 800 | 1520 | 6950 | 1.2 | 6 | 48 | 2990 |
SC10-1000/10 | 1000 | 1760 | 8120 | 1.1 | 6 | 48 | 3395 |
SC10-1250/10 | 1250 | 2080 | 9690 | 1.1 | 6 | 49 | 3520 |
SC10-1600/10 | 1600 | 2440 | 11730 | 1.1 | 6 | 49 | 4165 |
SC10-2000/10 | 2000 | 3320 | 14450 | 0.95 | 6 | 50 | 5545 |
SC10-2500/10 | 2500 | 4000 | 17170 | 0.95 | 6 | 50 | 6670 |
Model | Dimension | |||||||
LxBxH | m | n | I | I' | K | K' | h | |
SC10-30/10 | 880x460x862 | 400 | 400 | 300 | 160 | 263 | 223 | 782 |
SC10-50/10 | 950x750x915 | 550 | 550 | 325 | 170 | 271 | 229 | 835 |
SC10-80/10 | 1000x750x977 | 550 | 550 | 340 | 180 | 280 | 255 | 897 |
SC10-100/10 | 1030x750x1020 | 550 | 550 | 350 | 190 | 293 | 260 | 938 |
SC10-125/10 | 1060x750x1057 | 550 | 550 | 360 | 190 | 300 | 290 | 977 |
SC10-160/10 | 1080x750x1147 | 550 | 550 | 365 | 190 | 295 | 295 | 1045 |
SC10-200/10 | 1100x860x118 | 550 | 550 | 370 | 200 | 305 | 295 | 1080 |
SC10-250/10 | 1130x860x1262 | 660 | 660 | 380 | 200 | 310 | 300 | 1163 |
SC10-315/10 | 1220x860x1190 | 660 | 660 | 420 | 120 | 294 | 269 | 1090 |
SC10-400/10 | 1240x860x1195 | 660 | 660 | 425 | 120 | 293 | 264 | 1095 |
SC10-500/10 | 1255x860x1230 | 660 | 660 | 430 | 120 | 300 | 269 | 1110 |
SC10-630/10 | 1405x860x1280 | 820 | 660 | 480 | 135 | 333 | 336 | 1160 |
SC10-630/10 | 1420x860x1280 | 820 | 660 | 485 | 135 | 316 | 320 | 1140 |
SC10-800/10 | 1445x1020x1385 | 820 | 820 | 495 | 165 | 322 | 323 | 1240 |
SC10-1000/10 | 1525x1270x1460 | 820 | 820 | 520 | 155 | 314 | 316 | 1320 |
SC10-1250/10 | 1625x1270x1610 | 820 | 820 | 555 | 185 | 332 | 338 | 1560 |
SC10-1600/10 | 1675x1270x1660 | 1070 | 1070 | 570 | 185 | 338 | 345 | 1510 |
SC10-2000/10 | 1805x1270x1847x1847 | 1070 | 1070 | 625 | 205 | 338 | 347 | 1677 |
SC10-2500/10 | 1890x1270x2020 | 1070 | 1070 | 640 | 205 | 380 | 393 | 1850 |
Features | Performance |
keywords Core of transformer are made by the high quality cold-rolled grain-oriented silicon steel sheet, inclined by 45°full-seam construction
| Reducing the load loss, load current and noise level |
HV Lead wire fixed on the flange of winding, tapping point is in the center of winding, change the shunting tapping through connection sheet in the case of power failure | Reliable Connection |
We can offer low noisy radial flow fan for SC series transformer | Improve 40% of nominal Capacity |
Overheat protection for the transformer with capacity above 315kva | Protecting the transformer |
Winding are insulated by epoxy resin | Good for high voltage characteristics, local electricity release less than 10Pc |
Our Office Show
Our Workshop Show
Main Testing Equipment
1. We will offer site technical service according user’s requirements. Guide the user installation,commissioning
and trial operation accordance with technical information and drawings.
2. We will offer the training of equipment installation, commissioning and maintenance technology for user
according to the contract.
3. Replacement of spare parts, wearing parts for free during guarantee period.
4. Actively cooperate with the user to examination of hanging the core, installation, commissioning and trial
operation. Make sure to put product into operation.
5. We offer 24 hrs customer consulting service.
6. For customer on-site service application, we will give answer within 24hrs, and try our best to arrange the
technical worker get to the site as soon as possible.
1.Our headquarter Guangxi Liuzhou special transformer technology Co.,Ld founded in 2001, 13 years of experience
in transformer manufacturing.
2. 1.We have a rich theoretical and practical experience of product research and development team can help you.
One stop service from design to installation and debugging.
2.2 ISO9001,GB/T19001, CTQC, CQC
3.Our products cover electric furnace transformer, rectifier transformer, dry type transformer, pre-installed type (combination) transformer, etc. Voltage class cover 10-220Kv. single transformer’s capacity can
reach to 240000kva.
4.Our export agency Liuzhou Joyhood Co.,Ltd as a link between workshop and customer, better analysis and understand customer's requirement. More consider for the customer. From design -production -testing-packing-certificate review -custom clearance -delivery, we will supervise well each process for customer.
5.Factory directly sell price
6.Factory covers an area of 54000m3, more than 300 employees,
7.Prompt Reply Within 24 Hours
