11kv Voltage Transformer
- Fangcheng Port Guangzhou Port Shanghai Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Pole Mounted Distribution Transformer 11KV 50KVA
-
3-phase Oil-immersed 6.3KV 20KV 11KV Power Transformer
-
10 KV S(B)15 Oil Immersed Distribution Transformer
-
SZ11 Type On-load Tap Changing Transformer With 10KV
-
D11 Single-phase Oil-immersed Transformer With 10KV
-
S9 Series 10 KV Low-loss Oil Immersed Distribution Transformer
Product Details
| Brand Name | JOYHOOD | Model Number | S11-MXXX /10 | |
| Usage | Power | Phase | Three | |
| Coil Number | Other, 2 |
Product Description

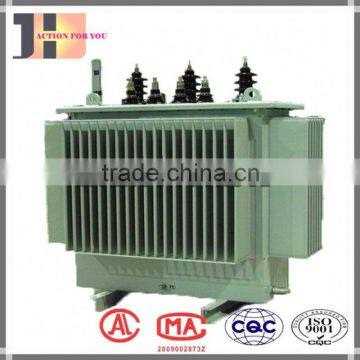

This series 11kv Voltage Transformer having adopted the corrugated tank structure. It is a fully sealed, fully oiled, double windings, and no excited distribution transformer. Its voltage grade is under 10 kv, the capacity range are between 50kva and 1600kva, It's specifications and main technical parameters are all in conformity with the latest national standard GB 1094 and GB/T6451
S11-M Sealed Transformer with 10KV
Our S11 lower loss series oil-immersed distribution transformers have reached modern advanced
level in the world.Transformers are used in the urban and rural power grid.
Features | Performance |
Core of transformer are made by the high quality cold-rolled grain-oriented silicon steel sheet with laser notch, inclined by 45°full-seam construction
| Reducing the load loss, load current and noise level |
HV winding is made by polyvinyl acetal wire enamel wire. | Reducing axial strength during short circuit happen |
Corrugate tank structure used in the transformer design | To ensure the quality of sealing |
The oil will be filling in the transformer under vacuum condition | Improved the insulation strength of transformer |
Oil level gauge with magnetic plate structure | It can fully isolation the oil tank and air, can ensure the quality of transformer oil not to effect by ultraviolet radiation |
Our Office Show
Our Workshop Show
Main Testing Equipment
1.Our headquarter Guangxi Liuzhou special transformer technology Co.,Ld founded in 2001, 13 years of experience in transformer manufacturing
2. 1.We have a rich theoretical and practical experience of product research and development team can help you. One stop service from design to installation and debugging.
2.2 ISO9001,GB/T19001, CTQC, CQC
3.Our products cover electric furnace transformer, rectifier transformer, dry type transformer, pre-installed type (combination) transformer, etc. Voltage class cover 10-220Kv. single transformer’s capacity can reach to 240000kva.
4.OEM/ODM
5.Factory covers an area of 54000m3, more than 300 employees,
6.Prompt Reply Within 24 Hours
1.We will offer site technical service according user’s requirements. Guide the user installation,
commissioning and trial operation accordance with technical information and drawings. 2.We will offer the training of equipment installation, commissioning and maintenance technology
for user according to the contract.
3.Replacement of spare parts, wearing parts for free during guarantee period.
4.Actively cooperate with the user to examination of hanging the core, installation, commissioning
and trial operation. Make sure to put product into operation.
5.We offer 24 hrs customer consulting service.
6.For customer on-site service application, we will give answer within 24hrs, and try our best to
arrange the technical worker get to the site as soon as possible.
