hydraulic cylinder for garbage compactor
- 1000 Set / Sets per Month
- Fangcheng Port Guangzhou Port Shanghai Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
factory/ hyva type fc and fe series single acting telescopic hydraulic cylinders for tipper trailer
-
farm and industry telescopic hydraulic cylinder used for dump truck/trailer
-
telescopic hydraulic cylinder for crane
-
twin telescopic hydraulic cylinder for dump truck/tipper/trailer
-
double acting telescopic hydraulic cylinder for garbage compactor
-
garbage truck hydraulic cylinder
Product Details
| Type | Other, truck body lifting device | Size | 150mm | |
| Material | Italian imported cylinder | Place of Origin | Hunan, China | |
| Brand Name | Tedayy | Model Number | TG3-150-04230-0343-DG |
Product Description
hydraulic cylinder for garbage compactor
G Series telescopic cylinder Specification

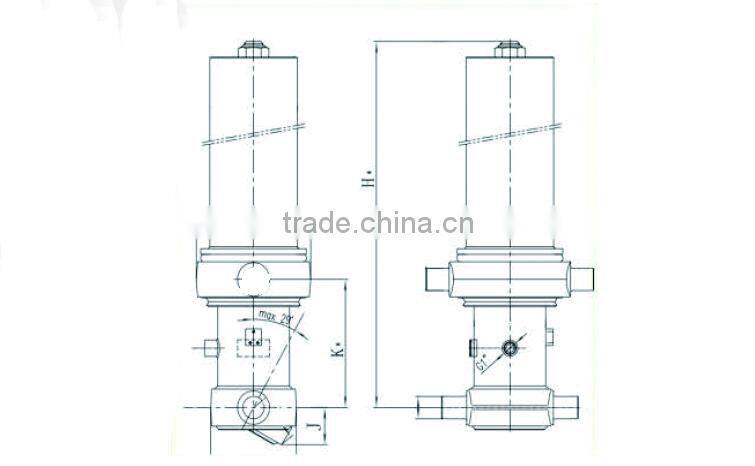

| Model | 1st Stage Cylinder Inner DIA (mm) | Pressure(Mpa) | Lifting Capacity(T) | Weight(kg) | Volume(L) | H*(L) | J*(mm) | K*(mm) |
| TG3-150-04230-0343-DG | 150 | 22 | 64-81 | 308 | 62 | 1785 | 96 | 343 |
| TG4-150-04230-0465-DG | 150 | 22 | 44-71 | 299 | 59 | 1535 | 96 | 343 |
| TG4-172-04310-0343-DG | 172 | 22 | 66-106 | 317 | 74 | 1450 | 106 | 343 |
| TG4-172-04630-0343-DG | 172 | 22 | 64-101 | 332 | 80 | 1530 | 106 | 343 |
| TG4-172-05110-0343-DG | 172 | 22 | 62-96 | 356 | 88 | 1650 | 106 | 343 |
| TG4-172-05390-3430-DG | 172 | 22 | 61-98 | 368 | 93 | 1720 | 106 | 343 |
| TG4-172-05630-343-DG | 172 | 22 | 61-100 | 379 | 97 | 1780 | 106 | 343 |
| TG4-196-05340-3430-DG | 196 | 22 | 85-108 | 391 | 121 | 1720 | 120 | 343 |
| TG4-196-05580-0343-DG | 196 | 22 | 84-105 | 400 | 126 | 1783 | 120 | 343 |
| TG4-196-05820-0343-DG | 196 | 22 | 83-106 | 412 | 131 | 1843 | 120 | 343 |
| TG4-196-06100-0343-DG | 196 | 22 | 82-106 | 427 | 137 | 1913 | 120 | 343 |
| TG5-196-05950-0343-DG | 196 | 22 | 80-106 | 390 | 120 | 1585 | 120 | 343 |
| TG5-196-06350-0343-DG | 196 | 22 | 60-98 | 408 | 128 | 1653 | 120 | 343 |
| TG5-196-06500-0340-DG | 196 | 22 | 60-98 | 425 | 133 | 1723 | 120 | 343 |
| TG5-196-07300-0343-DG | 196 | 22 | 59-80 | 453 | 147 | 1843 | 120 | 343 |
Our Office Show

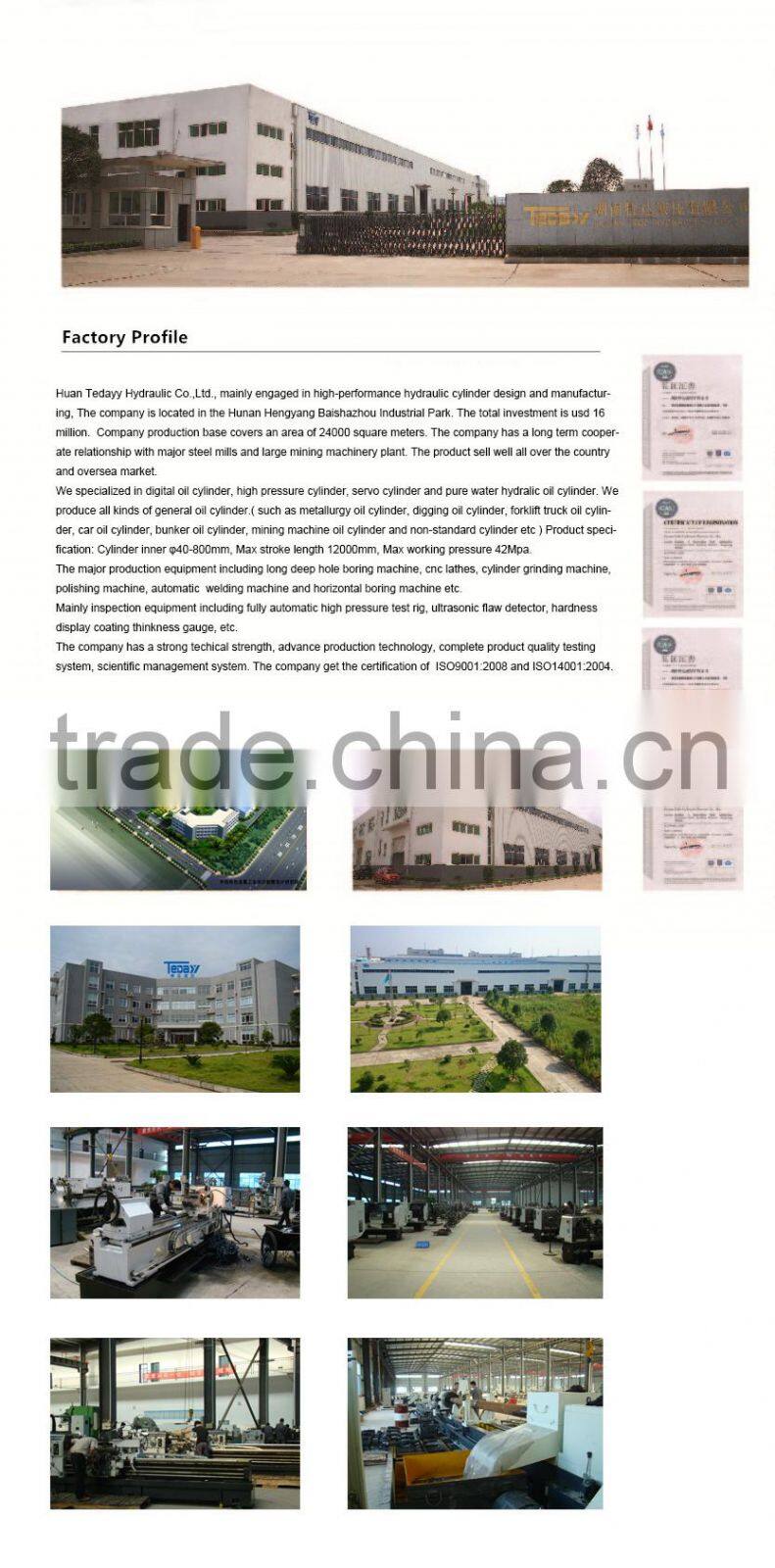

Our Workshop Show
1.13 years of experience in manufacturing
2. rich theoretical and practical experience of product research and development team
3. ISO9001,ISO14001
4.OEM/ODM
5.Italian imported cylinder material
6.Prompt Reply Within 24 Hours
1.We will offer site technical service according user’s requirements. Guide the user installation,
commissioning and trial operation accordance with technical information and drawings. 2.We will offer the training of equipment installation, commissioning and maintenance technology
for user according to the contract.
3.Replacement of spare parts, wearing parts for free during guarantee period.
4.Actively cooperate with the user to installation, commissioning and trial operation. Make sure to
put product into operation.
5.We offer 24 hrs customer consulting service.
6.For customer on-site service application, we will give answer within 24hrs, and try our best to
arrange the technical worker get to the site as soon as possible.
