Home > Products > EPS Shape Molding Machine > Hot Sale Automatic Vacuum Series EPS Shape Molding Machine
Hot Sale Automatic Vacuum Series EPS Shape Molding Machine
- shanghai/Ningbo
- T/T
You May Like
Product Details
| Condition | New | Product Type | Other, fish box, fruit box, TV packaging, electronic packaging | |
| Place of Origin | Zhejiang, China | Brand Name | VST | |
| Model Number | vacuum series eps shape molding machine: PSZ100-180T | Voltage | 380V | |
| Power(W) | 10.6KW | Dimension(L*W*H) | 4500*1840*4100 | |
| Weight | 5700KG | Certification | CE, Other, CE, ISO9001 | |
| Warranty | 12, 1YEAR vacuum series eps shape molding machine | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

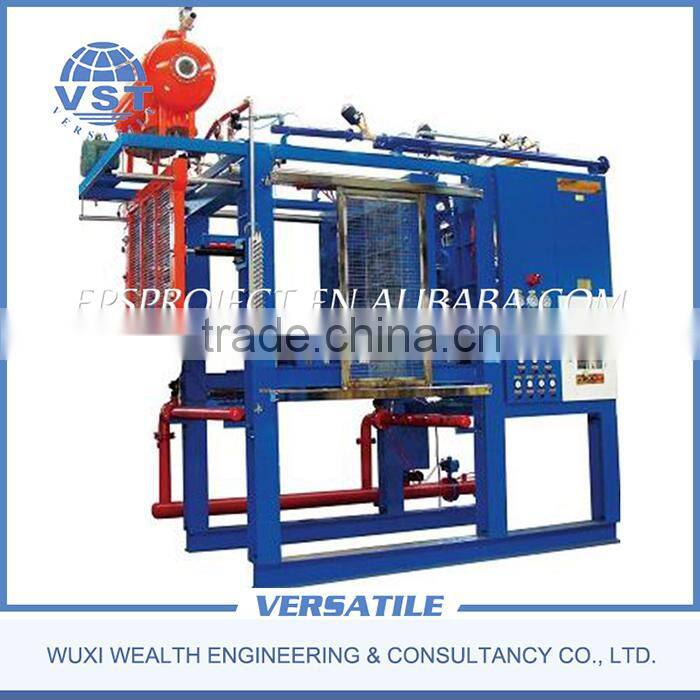

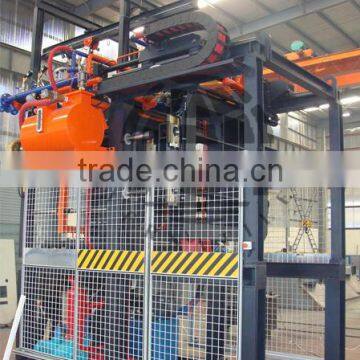

1.Pictures of Vacuum Series EPS Shape Molding Machine
2.Technical Data of Vacuum Series EPS Shape Molding Machine
Technical Data: | |||||||
| Item | Unit | PSZ100T | PSZ120T | PSZ140T | PSZ160T | PSZ175T | PSZ180T |
| Mould Dimension | mm | 1000*800 | 1200*1000 | 1400*1200 | 1600*1350 | 1750*1450 | 1800*1600 |
| Max product dimension | mm | 800*600*330 | 1000*800*330 | 1200*1000 *330 | 1400*1100 *330 | 1550*1200 *330 | 1610*1400 *330 |
| Stroke | mm | 210-1360 | 210-1360 | 270-1420 | 270-1420 | 270-1420 | 220-1370 |
| Steam entry | mm | DN80 | DN80 | DN80 | DN80 | DN80 | DN80 |
| Steam consumption | kg/cycle | (10-13T)Steam of 1T material | |||||
| Water entry | mm | DN80 | DN80 | DN80 | DN80 | DN80 | DN80 |
| Cooling water consumption | kg/cycle | 40-120 | 45-138 | 50-150 | 55-180 | 60-190 | 80-200 |
| Compressed air entry | mm | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 |
| Compressed air consumption | m3/cycle | 1.2 | 1.5 | 1.8 | 2 | 2 | 2.2 |
| Vacuum pump capacity | m3/h | 165 | 165 | 230 | 280 | 280 | 280 |
| Connected load | Kw | 10.6 | 10.6 | 14.1 | 16.1 | 16.1 | 19.6 |
| Overall dimension | mm | 4500*1640*3900 | 4500*1840*4100 | 4600*2140 *4300 | 4600*2140 *4300 | 5000*2300 *4600 | 5100*2610 *5000 |
| Machine Weight | kg | 4500 | 5200 | 5700 | 7000 | 7500 | 8000 |
| Cycle time | s | 60-90 | 60-100 | 60-150 | 90-160 | 90-160 | 120-190 |
3.Features of Vacuum Series EPS Shape Molding Machine
1. Machine structure: All frames are welded by 16/20mm steel plate, very strong. Machine legs are made by high-strength H type steel profile, foundation is not required from clients.
2. Filling system: Machine allows three filling modes: normal pressure filling, vacuum filling and pressurized filling. Material hopper has sensor to control material level, material discharging is done with rotary discharging plates, total 44 discharging holes
3. Steam system: Adopt balance valve and Germany electric gauge switch to control steaming
4. Cooling system: Vertical vacuum system with water spray device at the top make vacuum efficient.
5. Drainage system: Increase mould outlet and use 6 inch drainage pipe and big butterfly valve, make mould draining faster.

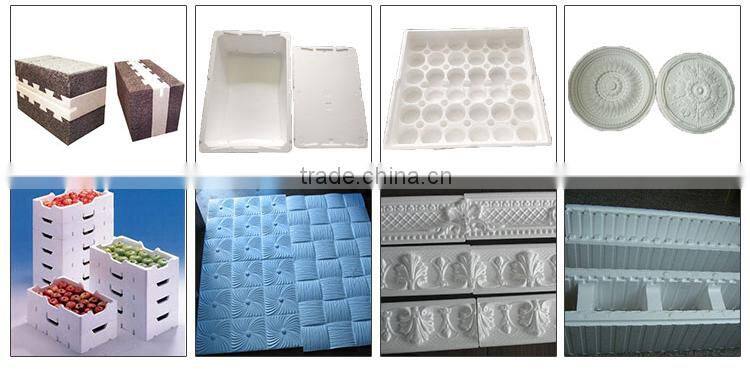

4.Application of Vacuum Series EPS Shape Molding Machine

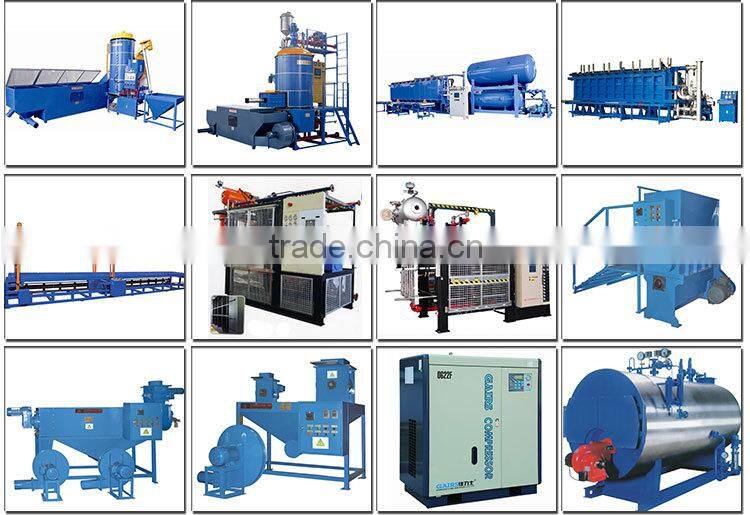

5.More Products for You to Choose
6.Trade Item
MOQ | 1 Set |
Payment Method | L/C, T/T |
Port | Shanghai/Ningbo |
Delivery | 45 days after received deposit or LC |
Supplier Capacity | 20 units per month |
Packing | standard exporting package . |
1.About Us
1)Wuxi Wealth Engineering & Consultancy Co., Ltd. specially deal with all kinds of EPS machines and give
consultancy service to those clients who plan to set up new EPS factory. Working in EPS machine field for
over 12 years, and having helped hundreds of clients to build new EPS factory, we are very confident and
competent to offer you complete turn-key projects for EPS industry.
2)We are associated with several EPS machine manufacturers in China, so we can easily match different
clients’ request. Sitting in the manufacturing base of EPS machines, we can regularly follow up machine
production and inspect machine quality, We follow the principle of “service first, quality first” to develop our
business. Our team is constantly making efforts to answer clients’ request within shortest time, and our
professional technicians always give you fast response for your questions and complaints. We pay whole
life responsibilty for the products we sell.
3)We sincerely hope establishing long and friendly business relationship with clients from all over the world.
2.Sample Room
3.Exhibition

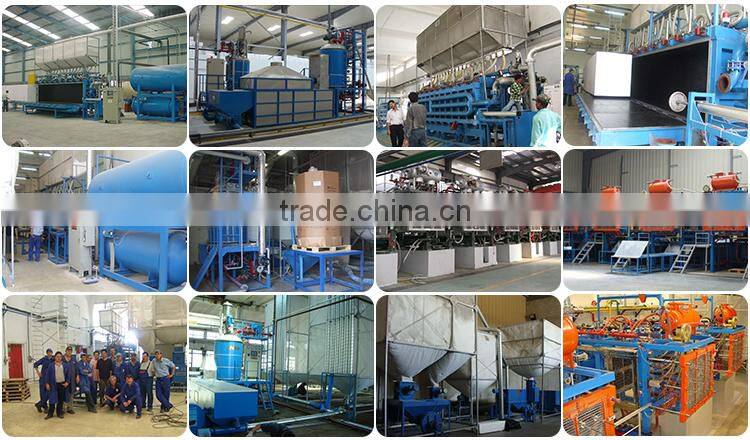

4.Engineering
5.Customers
6.Our Team
Contact Us
- Wuxi Wealth Engineering & Consultancy Co., Ltd.
- Contact namesue Wang Chat Now
- Phone0086-571-63169198
- AddressNO.218-220 Rainbow Road, Gaoqiao, Hangzhou, Zhejiang
