China Wholesale Custom Custom zhejiang used nylon conveyor belt
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Direct Manufacturer port nylon conveyor belt
-
Cheap Wholesale port rubber nylon conveyor belt
-
High Quality Factory Price wholesale nylon conveyor belting
-
widely used in cement plant heat resistant rubber conveyor belt
-
Acid and Alkali-Resistant rubber conveyor belt for chemical industry
-
15MPA flame-retardant rubber conveyor belt
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SHOUHUO/HARVEST | |
| Model Number | Chevron Conveyor Belt |
Product Description
Chevron zhejiang used nylon conveyor belt is suitable for conveying loose, bulky or bagged materials on inclined surface at angles of less than 40 degrees.

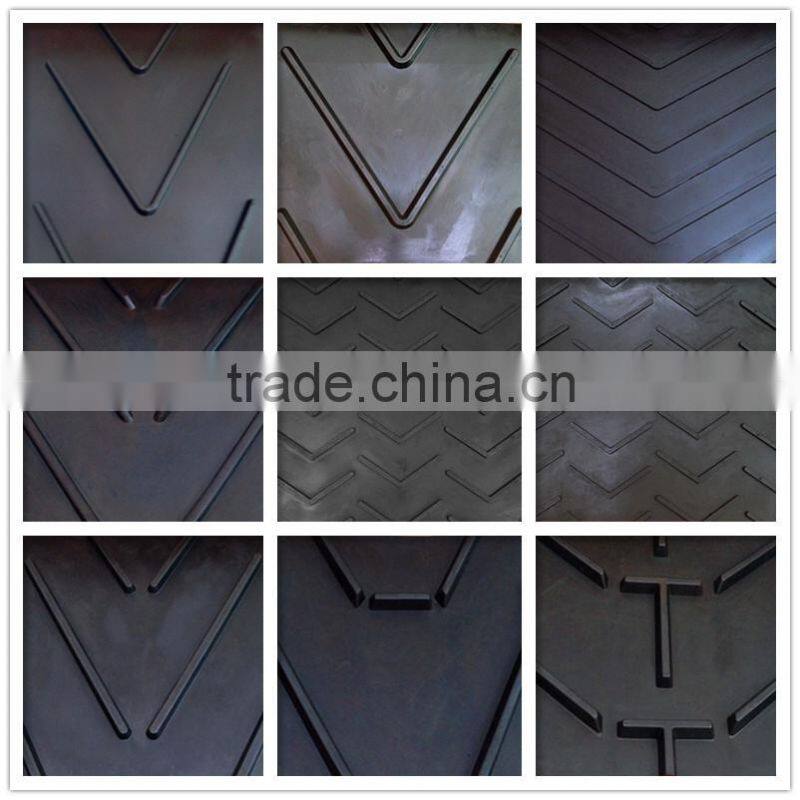

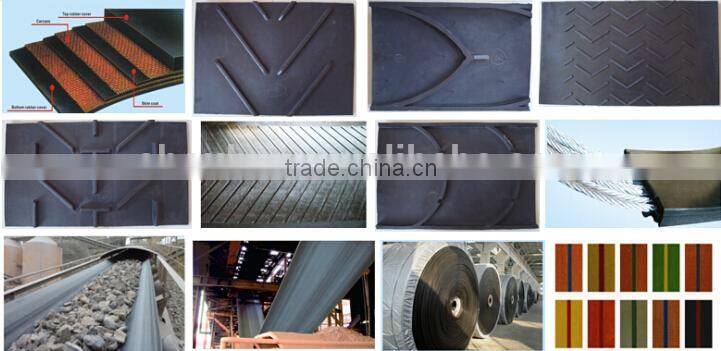

1. Chevron Conveyor Belt Type:

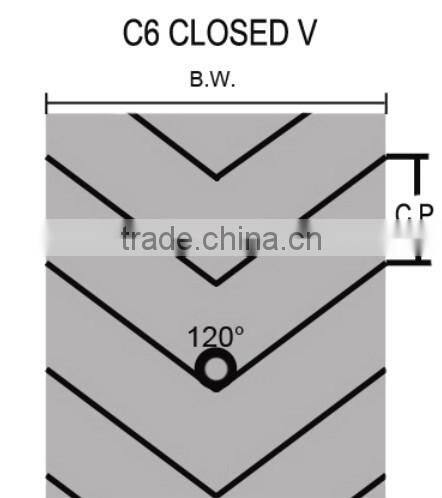

More than 30 types pattern:Close V type,Open V type,Multi - V type,Y type, - type etc.
Specification:
- Belt Width: 350-1500mm

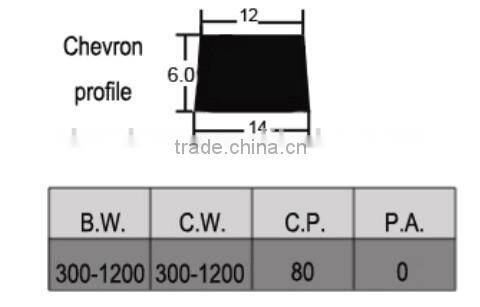

- Cleat height:5mm,6mm,6.36mm,8mm,10mm,15mm,16mm,25mm
2.Chevron Conveyor Belt Specifications:
Type of material | Material example | Max. angle of inclination | |||
Height of cleats | |||||
H(mm):14 | H(mm):16 | H(mm):25 | H(mm):32 | ||
Powdery | Flour, etc. | 25° | 25° | 28° | 30° |
Loose flowing | Corn, barley, wheat, rye, etc. | 20/25° | 20/25° | 25/30° | 25/30° |
Loose rolling | Gravel, ground stone, etc. | 25° | 25° | 28° | 30° |
Packed | Sacks, paper sacks, etc. | 30/35° | 30/35° | 35/40° | 35/40° |
Sticky | Wet sand, ash, wet loam, etc. | 30° | 30/35° | 35/40° | 40/45° |
3.Features of chevron zhejiang used nylon conveyor belt :
- Can carry loose materials at angle of 17-18 and bagged material at 30-35
- Cleat angle and pitch are designed for smooth travel over return idlers
- Cleats and the top cover rubber are mono block molding for strength
- v-shape chevron patterned zhejiang used nylon conveyor belt are used primarily when the angle of incline becomes too steep for a smooth conventional zhejiang used nylon conveyor belt. The belt is fitted with integrally moulded cleats which prevent the material from sliding backwards as would be the case with a smooth surface belt. Different cleat designs allow the carrying of many types of material, from bulk solids to unit loads.
- Application: There are open type and closed type, suitable for bulk or bagged materials such as powder and granule with incline less than 45 C.
4. Chevron Conveyor Belt International Standard:
5. Chevron Conveyor belt are primarily used in the following industries:

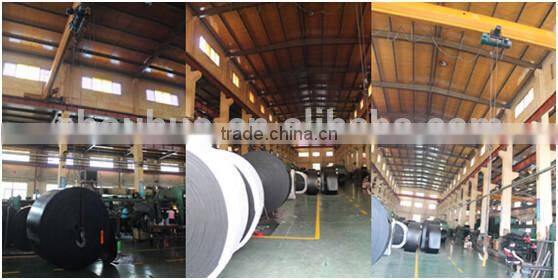

6. Our Workshop:

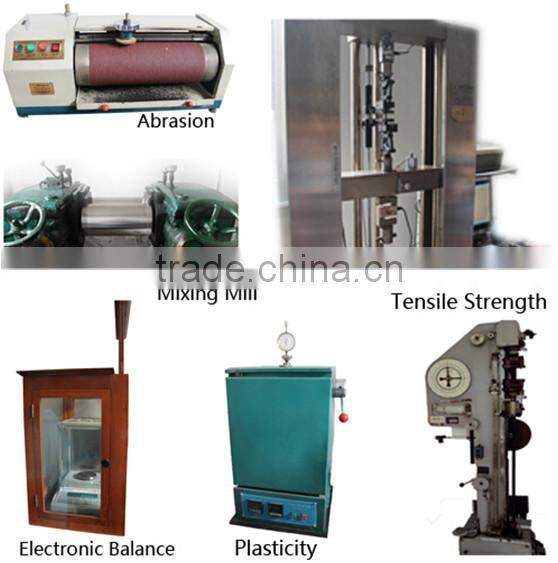

7. Our Testing Facilities:
| No. | Rubber Conveyor Belt |
| 1 | Conveyor Belt for General Purpose |
| 1.1 | EP(polyester) Conveyor Belt: EP100,EP125,EP150,EP200,EP250,EP300,EP400,EP500,EP630 |
| 1.2 | NN(Nylon) Conveyor Belt : NN100,NN125,NN150,NN200,NN250,NN300,NN400,NN500,NN630 |
| 1.3 | Cotton Conveyor Belt: CC-56 |
| 1.4 | Steel Cord Conveyor Belt: ST630,ST800,ST1000,ST1250,ST1600,ST2000,ST2500,ST3150,ST4000,ST4500,ST5000, ST5400 |
| 2 | Conveyor Belt for Special Purpose |
| 2.1 | Heat Resistant Conveyor Belt |
| 2.2 | High Temperature Conveyor Belt |
| 2.3 | Fire Retardant Conveyor Belt |
| 2.4 | Cold Resistant Conveyor Belt |
| 2.5 | Oil Resistant Conveyor Belt |
| 2.6 | Chemical Resistant Conveyor Belt |
| 3 | Chevron Conveyor Belt |
| 4 | Bucket Elevator Conveyor Belt |
| 5 | PVC/PU Conveyor Belt |
| 6 | Flat Transmission Belt |
9.Packaging&Shipping:
Packaging Detail:
1. Water-proof and anti-UV PP bag wrapping package
2.Standard and suitable export package for seaworthy
3.as request.
Shipping Detail:
15-25 days for 1-2 20ft containers
20-30 days for 3-4 20ft containers
1.About us:
1. Company Name: Shouhuo Rubber & Plastic Co., Ltd.
2. Years in the line: Since the year 1985,30 years history with 15 year export experience.
3. Location: Taizhou-the city of RUBBER PRODUCTS, 120km away from Ningbo Port.
4. Employee: 238 staff, including 18 engineers.
5. Scale: one of the three biggest manufactuers for zhejiang used nylon conveyor belt in Taizhou.
6. Production Capacity: 900,000 meters per year.
7. Main Market: Europe,North America,South Americe,Southeast Asia, Russia, Middle East.
2.Our Certificate:
3.Exhibitions and E-Business:
Why choose us?
1.We are Alibaba Assessed Gold Supplier.
2.We are a factory manufacturing rubber zhejiang used nylon conveyor belt, best production capability ,strict quality control, Best Service .
3.We are a manufacturer have 30 years history with 15 years export experience.
4.100% QC inspection Before Shippment.
5.Samples are free for our customers.
6. ISO certificate listed,competitve price.
FAQ with best service
Payment Terms: 30% deposit,70% T/T before shipment |
Delivery Time:10 to 15 days for a 20’ GP upon receipt of 30% deposit(depends on the quantity you need and the order time) |
Production Capacity:2000 meters per day( 20' GP per day) |
Transportation: By sea |
Packing Detail: PP bag packed all side , rubber core / steel pipe in side. Or according to the customer's requirements. |
Guaranteed to customers: 1) All Material we use is of high or medium quality and environment friendly. 2) High and medium quality products only. 3) We seriously check every item before shipment. 4) Best service, most reasonable price and sincerity for customers |
Tips: If your company is interested in any of our products, or you have a specific requirement for any of our items, please do not hesitate to contact us. Please visit to our website: for more information. |
Contact Us
- Taizhou Shouhuo Rubber & Plastic Co., Ltd.
- Contact nameMellisa Huo Chat Now
- Phone86-21-39651567
- Address1088 Xinjinqiao Road
