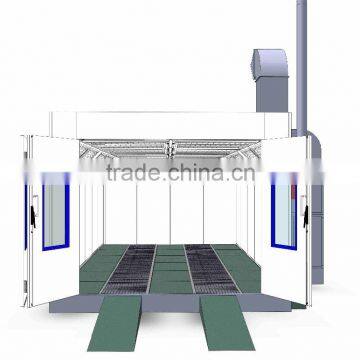

CE certification 2 years warranty time car painting room

JF 510

Design Standard

BS EN 13355:2004+A1:2009

BS EN 60204:2006+A1:2009

Cabin size

inside size

6900×3900×2650mm (L×W×H)

outside size

7010×5260×3400mm(L×W×H)

Basement

Foundation

Galvanized plate bending forming.full grids and two rows of metal antiskid diamond plate. Basement height is 300mm.

Drive in ramp

2 pcs, size: 2000*530

Description of floor grids

Size: 997*756mm , 40*3mm,the grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating. The biggest features for it are beautiful, durable and better force bearing.

Cabin system

Cabin structure

Wall vertical plugging

Pressure room height

400mm

Wall board

Wall panel

Thickness: 50mm, wallboard fill with EPS

Roof panel

Galvanized plate bending forming

Edge material

1.2mm galvanized steel plate bending forming

Main door

Gate form

Manual door, 2+1 folding gate

Gate size

3200X2600 mm (W×H)

Quantity

1sets

Description

Contain skeleton, fill with EPS

Service door

Service door form

With steel frame structure

Service door size

800×2000 mm  (W×H)

Quantity

1 set

Description

With safety observation window

Ceiling Light

Quantity and power

8 sets of lighting box , each set with 4×36W, total 1152W

Lighting arrangement

on both sides

Description

IP55 protection grade, CE certification, electronic rectifier, Osram tubes

Side Light

Quantity and power

6 sets of lighting box , each set with 2×36W, total 432W

Lighting arrangement

on both sides

Description

IP55 protection grade, CE certification, electronic rectifier, Osram tubes

Total Brightness

>1000Lux

Filtration System

Pre-filters

Grade EU2 plate type filter

Ceiling filter

EU5 grade filter , filter model : SP-600G

Floor filter

EU5 grade advanced filter

Exhaust filter

Fibreglass paint-stop filter, with large air volume, low resistance and flame resistance ,etc.

Ventilation system

( Air supply)

Inlet fan form

Direct turbo fan

Inlet fan Power

and motor description

7.5KW,970 rpm, 380 V, 50 Hz

Fan air volume

25000m³/h

Ventilation system

( Air exhaust)

Outlet fan form

Direct turbo fan

Outlet fan Power

and motor description

5.5KW,970 rpm, 380 V, 50 Hz

Fan air volume

18000m³/h

Total air volume

23000m3/h

Empty load air flow speed

+/- 0.24m

Heating system

Material of heat exchanger

Stainless steel 1Gr18Ni9Ti(SUS304)

Power of heat exchanger

158kW

T Temperature capability

25°(from -10°C to 15°painting state)

Max operating temperature

80°

Heating time

5-8 mins (from 20° to  60°º) baking state

Burner Model

Italy REILLO G20 diesel burner

Pipeline configuration

Straight pipe

4pcs

90°pipe

1pcs

Rain hat

1pcs

Changing Pipe

1pcs

Control system

Executive standard

BS EN 60204:2006+A1:2009

Function

Painting, warm painting, baking, lighting, emergency stop switch, temperature display, failure indication

Special Note Project
