Home > Products > Standard spray booth > CE approved magnetic paint car paint room car wooden craft paint car

CE approved magnetic paint car paint room car wooden craft paint car

FOB Price

US$ 4,000 - 12,000 / Set

1 Set(Min. Order)

Port Guangzhou

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Power	17.5kw	External Size	7110X5570X3810mm(LXWXH)
Internal Size	7000X4000X2800mm(LXWXH)	Voltage	380v/3phase/50hz
Certification	CE	Disc Dia.	Electric Spray Paint Booth
No Load Speed	0.25m/s	Place of Origin	Guangdong, China
Brand Name	JF	Model Number	JF 520

Product Description

CE approved well welcomed portable spray paint machine
Cabin size
inside size	7000×4000×2800mm（ L×W×H)
outside size	7110×5570×3810mm（L×W×H)
Basement
Foundation	Galvanized plate bending forming. Full grids. Basement height is 350mm.
Capability of load	Hold up 700kg/wheel.
Filter surface area	27 ㎡
Drive in ramp	3 pcs, size: 20001030320, diamond plate structure
Description of floor grids	Size: 997756mm , 403mm，the grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating. The biggest features for it are beautiful, durable and better force bearing.
Cabin system
Cabin structure	Wall vertical plugging
Pressure room height	600mm
Wall board
Wall panel	Thickness: 50mm, wallboard fill with rock wool
Roof panel	Thickness: 50mm, wallboard fill with rock wool
Edge material	1.5mm galvanized steel plate bending forming
Main door
Gate form	Manual door, 2+1 folding gate
Gate size	3200X2700 mm (W×H)
Quantity	1sets
Description	Contain skeleton, fill with EPS
Service door
Service door form	With steel frame structure
Service door size	800×2000 mm (W×H)
Quantity	1 set
Description	With safety observation window
Ceiling Light
Quantity and power	8 sets of lighting box , each set with 4×36W, total 1152W
Lighting arrangement	on both sides
Description	IP55 protection grade, CE certification, electronic rectifier, Osram tubes
Side Light
Quantity and power	8 sets of lighting box , each set with 2×36W, total 576W
Lighting arrangement	on both sides
Description	IP55 protection grade, CE certification, electronic rectifier, Osram tubes
Total Brightness	>1200Lux
Filtration System
Pre-filters	Grade EU3 pocket type filter
Ceiling filter	EU5 grade filter , filter model : SP-600G
Floor filter	Fibreglass paint-stop filter
Exhaust filter	Fibreglass paint-stop filter, with large air volume, low resistance and flame resistance ,etc.
Ventilation system( Air supply)
Inlet fan form	Direct turbo fan
Inlet fan Power and motor description	7.5KW，970 rpm, 380 V, 50 Hz
Fan air volume	600Pa, 25000m³/h
Ventilation system( Air exhaust)
Outlet fan form	Direct turbo fan
Outlet fan Power and motor description	7.5KW，970 rpm, 380 V, 50 Hz
Fan air volume	600Pa, 25000m³/h
Total air volume	25000m3/h
Empty load air flow speed	+/- 0.25m
Noise	＜78 Decibel
Material of heat exchanger	Stainless steel 1Gr18Ni9Ti（SUS304）
Power of heat exchanger	200kW
△T Temperature capability	30°C(from -10°C to 20°C painting state)
Max operating temperature	80°C
Heating time	3-5 mins (from 20° to 60°ºС) baking state
Burner Model	Italy REILLO RG5S diesel burner
Pipeline configuration
Straight pipe	4pcs
90°pipe	1pc
Rain hat	1pc
Changing Pipe	1pc
Control system
Executive standard	Standard Y/Δ step-down starting control system
PLC (Programmable Logic Controller)	Yes, PLC control, more reliable and low breakdown rate.
Pressure measure	Pressure gauge indicating pressure inside the room, with humidity sensor
Function	Painting, warm painting, baking, emergency stop switch, failure indication, Overtemperature alarm indicator, baking stop delay protection

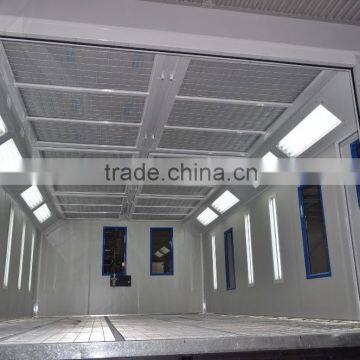

Detailed Images

Our Company

Shenzhen Jiufeng Electromechanical Equipment Co., Ltd. is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002 . With strong R&D experiences, advanced technology and guarantee quality , JF brand spray booth is getting more and more popular all over the world .

Packing & Delivery

Our Service

We are professional manufacturer for 12 years in China

Warranty time: 2 years. During the warranty time, any time, any problem caused by products’ quality,has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL or TNT Carrier.

Service time: Life long maintenance

FAQ

Q1: What's the sort of heating types?
JF reply: There are diesel, gas and electricity(infrared lamp) heating.

Q2: Does the JF spray booth with the European design ?
JF reply: Our products are welcomed in Europe. All the spray booths are according to European standard with CE certificate.

Q3: What are range of the voltage and power for JF spray booth when operating?
JF reply: the standard voltage and power for our products is 220V 50HZ 1PH for lights (Residential voltage), 380V 50HZ 3PH for motors (Industrial voltage), we could modify the voltage to suitable for customer's local voltage.

Q4: For the customer-design spray booth for other workpieces, does JF could provide?
JF reply: Absolutely yes, JF has the professional team with 12 years of design experience. JF may design according to customers requirements of spray booth for car, bus, big iron workpieces, wooden furniture etc.
