JF meet CE standard spray booth heat by infrared lamp environmental electric heating cheap and durable

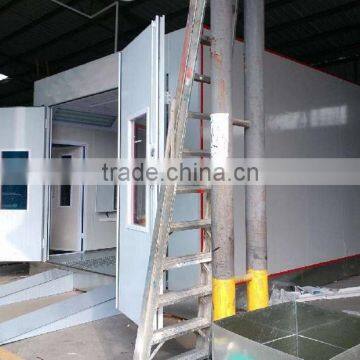

Infrared lamp heating spray booth JF 701(6.9×3.9×2.65M)

Design standards

BS EN 13355:2004+A1:2009

BS EN 60204:2006+A1:2009

    Cabin size

Internal size

6900×3900×2650mm (L×W×H)

External size

7010×5460×3410mm(L×W×H)

Basement

Basement design type

Galvanized plate bend forming, two rows flat steel grids and three rows metal non-slip diamond plates, basement height is 350mm

Floor grids load capacity

650kg/wheel

Filtration area

10.4 m2

Ramps

2 units;size: 2000*530

Floor grids description

Size: 997*756mm ,  40*3mm,grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating, the biggest features for it are beautiful, durable and better force bearing

     Cabin

Cabin structure

Wall panel vertical insert

Plenum chamber height

400mm

Wall panel

50mm EPS panel

Roof panel

Galvanized plate bend forming

Material of wrap edge

1.2mm galvanized plate bend forming

     Entrance door

Type of entrance door

Hand made entrance door,2+1 structure

Size of entrance door

3200×2600 mm (W×H)

Door arrangement and QTY

1 set

Description of door

With frame inside, fill with high temperature resistance EPS

   Service door

Type of service door

Frame structure

Size of service door

800×2000 mm  (W×H)

Door arrangement and QTY

1 set

Description of service door

With safe glass observation window

Ceiling lighting

QTY and power

8 units, each 4×36W, total 1152W

Lighting arrangement

On two sides

Lighting description

IP55,CE certified electronic ballast, OSRAM brand lights

Total illumination

>800Lux

Filtration system

Pre filter

G2 Grade plate type filter

Ceiling filter

EU5 Grade filter, model is SP-600G

Bottom paint-mist collection

Fiber glass paint-stop filter

Exhaust filter

Fiber glass paint-stop filter, with features of big air ventilation volume, small resistance, fire resistance and so on

Inlet system

Inlet fan

Direct drive turbo fan

Inlet fan power and motor

5.5KW,970 rpm, 380 V, 50 Hz,(7.5KW is optional)

Inlet fan parameter

650pa  18000m3/h

Exhaust system

(no)

Equipment air speed when empty loaded

+/- 0.18m/ when empty loaded

Noise

<78 dB

Steering damper

Air circulation damper spray paint conversion

Total fan flow

18000m3/h

Heating system

Infrared heating lamp

12 units, each 3X1kW

Form

Box-type (left and right rear side wall)

temperature

40℃-100℃

Ducting configuration

Straight duct

4 sections

90 degree

1 section

45 degree

1 section

Reducing

1 section

Control system

Performance standard

BS EN 60204:2006+A1:2009

Function

Painting, baking, lighting, emergency stop switch, temperature display, failure indication,

Loading condition

One 20GP container
