Hot Sales 220v 380 volt electric motors 11kw

Specifications

Description of product

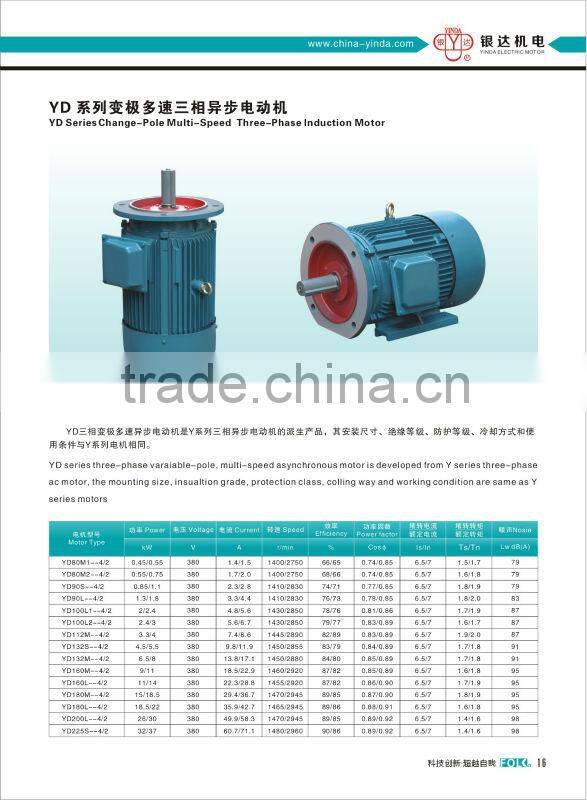

YD Multi Speed Three Phase Asynchronous Motor with variable poles are one of the main series products deriving from three phase series. This kind of motor can change rotational speed as load status, to properly match the demands of power and simplify transmission system. YD series motors are equivalent to foreign standard, therefore they are matching the specification for export as well as import.

Advantage:
1. Wide range of adjustable speed
2. High efficiency
3. Energy-saving
4. Low noise
5. Little vibration
6. Safe operation
7. Easy maintenance

Application:
They are widely used in machine tools, mining metallurgy, spinning and weaving, printing, dyeing and chemical industry and agricultural machinery etc.

Operating Condition:
1. Ambient temperature: -15º C~+40º C
2. Altitude: Not exceed 1000m
3. Power range: 0.45-100kW
4. Rated voltage: 380V
5. Rated frequency: 50Hz
6. Protection class: IP44/IP54
7. Insulation class: F
8. Cooling method: IC411
9. Working duty: S1 (continuous)
10. Basic Installation Method B3 B35 B5 B34
11. Frame size: H80-315
12. Basic Pole: 2/4/6/8/10

Company Introduction & Production Process

Exporting Products Package Details Overview

Honors and Certification

Components
