Home > Products > API couplings > API 3/4*5/8" sub coupling
API 3/4*5/8" sub coupling
- tianjin Qingdao Shanghai
- T/T Credit Card
You May Like
Product Details
| Material | Other, AISI5140 | Technics | Other, hot rolling | |
| Type | Coupling | Place of Origin | Henan, China | |
| Model Number | 3/4"*5/8" sub | Brand Name | BLT | |
| Connection | Female | Shape | Equal | |
| Head Code | Other, round |
Product Description
Specifications
API 3/4"*5/8" sucker rod connector2.Class: 22T
3.Techinics:hot rolling
4.Surface treatment:phosphating or blueing
API 3/4*5/8" sub coupling
Detailed Product Description
We our company is a petroleum machinery co., ltd. We specialized in couplings and hydraulic tongs. The couplings include different types of couplings, such as sucker rod coupling, tubing and casing coupling, and so on. We can manufacture it per the clients’ requirements, can do full size slim hole coupling, and reducing couplings. And we has been certified through ISO9001:2008 and gained the National Industrial Product Lisence. Please look at the following infos.
1.Techinical parameters
Product Name | Rounding chamfer θ | Types | OD(mm) | Width of Wrench Square(mm) | Length of Wrench (mm) | Grade | Hardness | Unit weight(kg) |
| sucker rod connector sub | 45°
| 3/4 | Φ41.3+0.13 -0.25 | 38.1 0 -0.8 | 31.8+0.62 0 | 19-T | 56-62HRA | 0.65 |
7/8 | Φ46.0+0.13 -0.25 | 41.3 0 -0.8 | 31.8+0.62 0 | 22-T | 56-62HRA | 0.8 | ||
1 | Φ55.6+0.13 -0.25 | 47.6 0 -0.8 | 38.1+0.62 0 | 25-T | 12-23HRA | 1.15 | ||
Package | Carton, Wooden case or wooden pallet | |||||||
Payment Terms | 30% TT Deposite, and 70% TT before shipment | |||||||
Delivery Time | Within 30 days after receipt of the advanced payment | |||||||

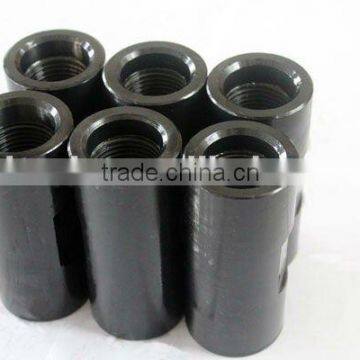

2.Product pictures
Contact Us
- Puyang Bao Litong Petroleum Machinery Co., Ltd.
- Contact nameDiangong Shi Chat Now
- Phone86-0393-8910958
- Addressyellow river road west jinger road west, Puyang, Henan
