ZHJ18 H I Beam 3 in 1 Combination Automatic Welding Machine
- ningbo/shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Automatic Alignment CO2 Welding Equipment Light h Beam Steel Build up h Beam Welding h Beam Assembling Machine
-
JZ40 H I BOX Beam Plate Automatic Straightening Machine h Beam Welding Machine
-
YJZ80B H I BOX Beam Plate Hydraulic Straightening Machine
-
ZHJ15 H I Beam 3 in 1 Combination Automatic Welding Machine
-
WUXI H I BOX Beam Build up Welding Automatic h Beam Production Equipment
-
H Beam I Beam Box Beam Automatic Submerged Arc SAW Welding Device
Product Details
| Place of Origin | China | Brand Name | JINFENG | |
| Model Number | ZHJ18 | Voltage | 380V,440V,415V,480V | |
| Rated Power | 50HZ | Dimension(L*W*H) | 2640x3750x4510mm | |
| Weight | 9.5T | Certification | ISO9001, ISO9001 | |
| Warranty | 12MONTHS | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description
Specifications
ZHJ18 H I Beam 3 in 1 combination automatic welding Machine1.assembling
2.welding
3.straightening
4. h beam build up line
1.Technology of ZHJ18 H I Beam 3 in 1 combination automatic welding Machine
Web height | 200-1800 mm | Web thickness | 6-30 mm |
Flange width | 200-1000 mm | Flange thickness | 6-40 mm |
H beam length | 4000-15000 mm | Working speed | 400-1000mm/min |
Input roller | 12000 mm | Output roller | 12000 mm |
Power supply | AC/380 V/60 Hz/3PH | Welding type | Transverse fillet welding |
Angle of torch | 45°fine adjustment |
|
|
2. Advantage of ZHJ18 H I Beam 3 in 1 combination automatic welding Machine
tapered degree | No limit | |
space needed | Around 34mx5m | |
welding mode | Flat fillet welding | |
operators | 3 persons easy training, the person can operate | |
efficiency | One shift one day, 240T per month for standard parts | |
welding quality | Efficient penetration,strong welding seam | |
benefit | Good for small workshop,thin plate and not have enough workers. | |
shipment cost | 1 of 40HQ | |

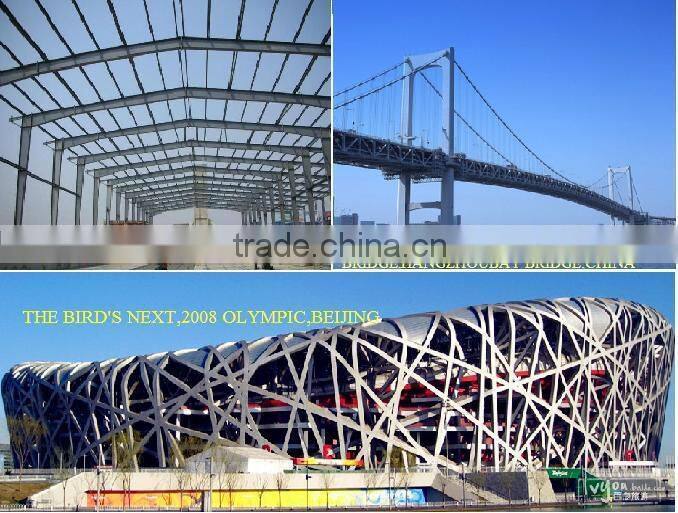

3.Application of ZHJ18 H I Beam 3 in 1 combination automatic welding Machine
Cranes manufacture, steel structure manufacture,bridge building,h beam build up,automatic light h beam welding,spot welding machine, steel fabrication
4.Machine seat and support column process of ZHJ18 H I Beam 3 in 1 combination automatic welding Machine
Steel box column processed on CNC machining center, to make sure good fitting and high strength
5.Strict and serious quality testing for ZHJ18 H I Beam 3 in 1 combination automatic welding Machine
There are two moving quality inspectors at each process, and the manager for each shift and monitor the production closely. Inspect and correct the parts after machining before assembling.
6.Factory and Workshop show for ZHJ18 H I Beam 3 in 1 combination automatic welding Machine
7. Package and shipment for ZHJ18 H I Beam 3 in 1 combination automatic welding Machine
8. Warranty and Service after sales
Warranty time: 12months since machinery installation finished.
Service after sales:
Professional Installation and training at customer spot factory,during time decides by different machine.
Lower price of consumable parts than markets .
Trouble response: 24hours online reply. If broken parts is not comsumable parts or breaks by wrong operation, we can send the broken parts free once confirmed.
Engineer service available overseas.
9.Exhibitons and products
